Farm Use Animal Feed Production Machine 400V With 5TPH Automatically
Farm Use Animal Feed Production Machine 400V With 5TPH Automatically
Farm Use Animal Feed Production Machine 400V With 5TPH Automatically
Farm Use Animal Feed Production Machine 400V With 5TPH Automatically
Specifications
Brand Name :
Shenghong
Model Number :
SZLH508
Certification :
BV, SGS, ISO9001, CE
Place of Origin :
Henan, China
MOQ :
1 set
Price :
USD 6999-19999
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
within 20 days
Packaging Details :
20GP, 40GP, 40HQ
Product name :
Animal feed production machine
Voltage :
400V/380V/415V/600V
Feature :
High Efficiency Low Cost
Usage :
animal feed pellet machine
Color :
Clients' Requirement
Dimension(l*w*h) :
Actual
Power :
132/160 kw
Capacity :
10-18t/h
Description

Farm Use Animal Feed Production Machine Feed Machine For Sale With 5TPH

Introduction:

The pellet feed unit is based on the complete set of equipment for producing powdered feed, and the pellet section equipment is added. It consists of crushing, mixing and tempering, granulating, cooling and drying, screening and other processes. The process flow is continuous and reasonable, and the performance of each single machine is good. The unit has compact structure, small footprint, low energy consumption and high efficiency.

There are more than 30 types of feed processing machinery, with an hourly production capacity of 1 to 50 tons, and an annual single-shift output of 5,000 to 100,000 tons. It consists of crushing, mixing, granulating, cooling and drying, and screening. Out, no steam, less investment, quick results.

During production and processing, the machine's own friction is used to automatically heat up, so that the material is gelatinized, matured, granulated, and cooled at one time. The surface of the packaging is smooth and the hardness is moderate, which is convenient for sealed storage. The particle size can be adjusted according to the user's needs. Adjustable within mm-6mm, suitable for processing pellet feeds such as pigs, cattle, sheep, rabbits, chickens, ducks, and fish.

Parameter:

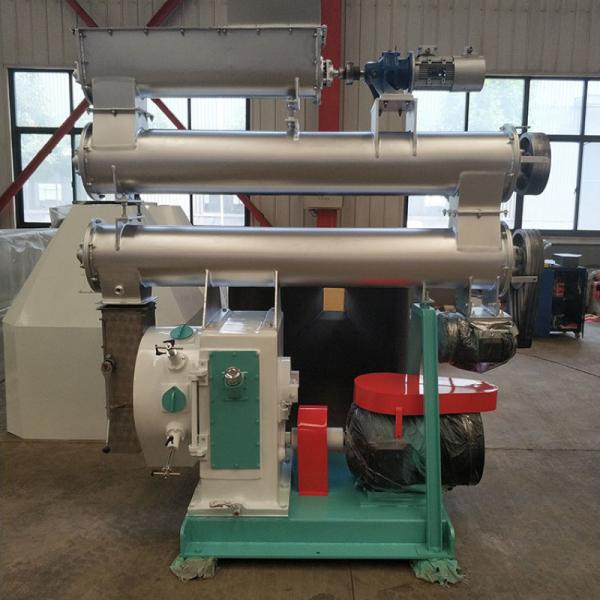

Pellet Mill Model
Main power
Capacity t/h
Ring die inner Diameter
Pellet size mm
SZLH250
22KW
0.8-1.5
250mm
2-8
SZLH320
37KW
1-4
320mm
2-8
SZLH350
55KW
2-8
350mm
2-18
SZLH420
110KW
3-12
420mm
2-10
SZLH508
160KW
4-20
508mm
6-12

Features:

1. There are two types of structure: integral steel frame type and floor type. The overall steel frame type is compact in layout and beautiful in appearance; the floor type is convenient for use and maintenance.
2. The small and medium-sized feed machinery adopts manual metering and ingredients, and the equipment investment is small, which is economical and practical.
3. The large and medium-sized complete set of feed equipment adopts computer to automatically measure ingredients, with good ingredient accuracy and high degree of mechanization and automation.
4. The standard complete feed project designed by the company is the best technical solution, keeping up with the domestic and international development trends.
Application:

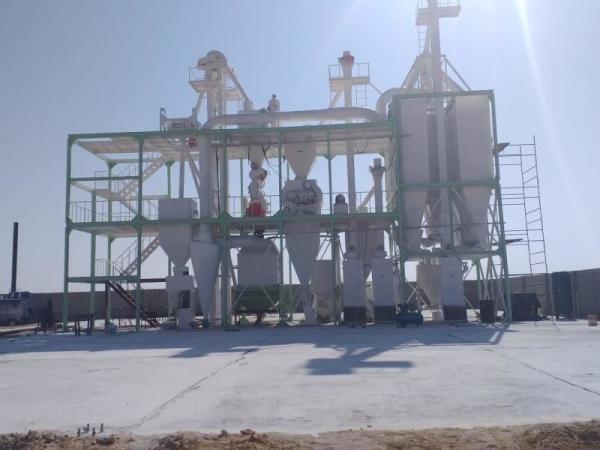

The pellet feed unit is a feed machine with a high degree of automation for the production of powdered feed, concentrated feed and pellet feed in medium-sized feed factories and various breeding farms, and is an ideal equipment for animal husbandry and breeding.
It is composed of crusher, pulse dust collector, screw conveyor, mixer, granulator, bucket elevator, countercurrent cooling particle dryer, vibrating screen and other equipment with superior performance. It integrates the functions of crushing, mixing, lifting, granulating, cooling and screening, automatic feeding, rapid feeding and smooth discharging. Feed group.
It is of great significance for feed maturation, increasing nutrition, improving absorption rate, killing germs, storing and transporting, reducing costs, saving resources, adapting to the chewing function of animals, and improving the efficiency of animal husbandry.
During production and processing, the machine's own friction is used to automatically heat up, so that the material is gelatinized, matured, granulated, and cooled at one time. The surface of the packaging is smooth and the hardness is moderate, which is convenient for sealed storage. The particle size can be adjusted according to the user's needs. Adjustable within mm-6mm, suitable for processing pellet feeds such as pigs, cattle, sheep, rabbits, chickens, ducks, and fish.
