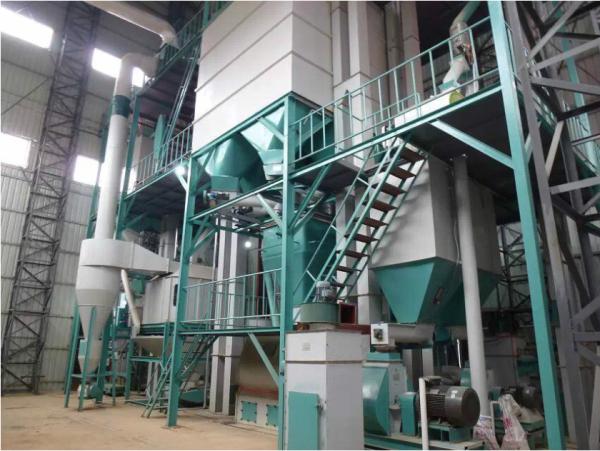

5TPH Animal Feed Production Line Animal Feed Making Machine
5TPH Animal Feed Production Line Animal Feed Making Machine
5TPH Animal Feed Production Line Animal Feed Making Machine
5TPH Animal Feed Production Line Animal Feed Making Machine
Specifications
Brand Name :
Shenghong
Model Number :
420
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
5000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
15-25 days
Packaging Details :
Export package
Voltage :
380V /50HZ
Capacity :
5TPH
Type :
Cattle Feed Pellet Production Line
Product name :
Animal Feed Pellet Production Line Animal Feed Making Machine For Sale
After-sales service provided :
Engineers available to service machinery overseas
Color :
Clients' Requirement
Description

Animal Feed Pellet Production Line Animal Feed Making Machine For Sale

Introduction of feed pellet production line:

Feed pelleting is a well-known process in the compound feed industry. After the feed is mixed, it is made into pellets by a feed pellet machine. Each pellet contains the nutrients specified by the nutritionist. This ensures that each animal eats a balanced diet. Pellets have a higher density than powdered feeds, allowing more feed to be transported in the same shipment. In addition, dust formation during product handling is significantly reduced, thus reducing (cross-)contamination throughout the logistics process.

Features of feed pellet production line:

1. The key to an efficient pelletizing process is to determine the best compromise between energy consumption and pellet quality, while producing the required capacity. The pelletizing process is affected by many factors, from adding steam to pelletizer settings and motor load.
2. Feeding should be uniform. The advantage of this is that it can make the granulation of the pellet machine smoother and keep the machine running at high speed.
3. By adding more steam, the gelatinization effect can be improved, and the powder can be made better. This results in higher capacity, higher quality and less energy consumption. There is a limit to the amount of steam that can be added, as too much steam addition can cause the press roll to crack.Slip and cause the pellet mill to block and cause downtime.
4. Choose the appropriate template aperture according to your own use. The aperture used by some users is too small, and the output is often low or even no material is produced.
Specification
Main Parameters Of Feed Pellet Machine
Model
Main Power
Feeder Power
Conditioner Power
Dia.of Ring Die
Pellet Size
Capacity
SZLH250
22KW
0.75KW
1.5KW
250mm
2-12mm
1-2T/H
SZLH320

37KW
1.5KW
2.2KW
320mm
2-12mm
3-4T/H
SZLH350
55KW
1.5KW
3.0KW
350mm
2-12mm
5-7T/H
SZLH420
90/110KW
1.5KW
7.5KW
420mm
2-12mm
8-12T/H
SZLH508
132/160KW
2.2KW
11KW
508mm
2-12mm
10-18T/H
SZLH558
180/200KW
2.2KW
11KW
558mm
2-12mm
15-25T/H
SZLH678
220/250KW
2.2KW
11KW
678mm
2-12mm
20-30T/H
SZLH768
280/315KW
2.2KW
11KW
768mm
2-12mm
25-40T/H


5TPH Animal Feed Production Line Animal Feed Making Machine

Working principle:

The molding material is fed into the granulator composed of the ring die and the pressure roller through the feeder. The motor drives the ring die to rotate clockwise at a certain speed. Under the action of centrifugal force and friction, the material is close to the inner wall of the ring die. The friction between the rollers varies with the ring die and the material rotates together. The material is sucked in and continuously pressed and squeezed. When the extrusion force increases enough to overcome the friction between the material and the inner wall of the die hole, the material is pressed into the die hole with a certain density. With the continuous rotation of the die roll, the material is extruded from the die hole and cut by the cutter to form the desired granular material. The main factors that affect the process include the material's I, the rotational speed of the ring die and the die structure (including the ratio of length to diameter of the ring die, the width of the ring die, and the ratio of the diameter of the ring die pressing roller).

Our after-sales Service:

1. We can provide you the one year warranty of pellet machine animal feed animal feed production machine but without the spare parts.

2. The professional and timely 24 hours after-sale service for animal feed machinery

3. The relative video of the animal feed production machine installation and instruction will be provided for you.

4. We can provide you the different mould of animal feed mixer machine to meet your different requirements.

5. We can also meet the special voltage demand of animal feed pallet machine about poultry feeding machine price,

6. The engineer is available to service feed pellet machine animal oversea for straw crusher/animal feed machinery.
