Livestock Animal Feed Pellet Machine Line 10mm For Chicken Cattle Cow
Livestock Animal Feed Pellet Machine Line 10mm For Chicken Cattle Cow
Livestock Animal Feed Pellet Machine Line 10mm For Chicken Cattle Cow
Livestock Animal Feed Pellet Machine Line 10mm For Chicken Cattle Cow
Specifications
Brand Name :
Shenghong
Model Number :
SZLH250
Certification :
BV, SGS, ISO9001, CE
Place of Origin :
Henan, China
MOQ :
1 Piece
Price :
USD 5999-29999
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
within 15 days
Packaging Details :
20GP, 40GP, 40HQ
Product name :
Animal Feed Pellet Making Machine
Raw material :
Carbon steel
Dimension :
3260*1100*2200mm
Voltage :
380V, 50hz, 3 phase
Screw diameter :
155mm
Application :
Animal feed pellet machine
Description

1ton/H 2ton/H Animal Feed Pellet Machine Production Line For Sale

Product description

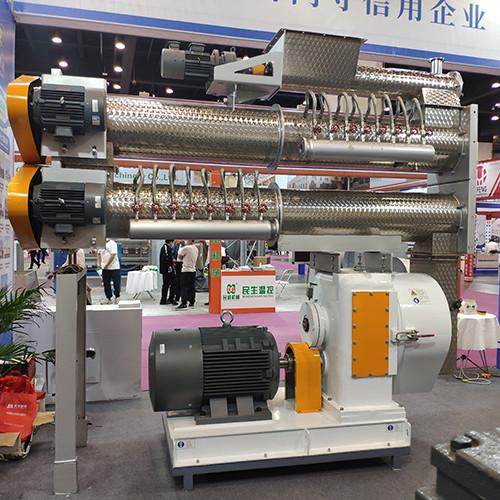

Chicken feed pellet machine is the main equipment of feed pellet line. It mainly makes the crushed powder into the pellets. Ring die is granulation is part of the feed pellet machine, when the feed ingredients into the ring die abrasive, by squeezing out feed particles . Feed pellet machine configuration, self-protection system in unstable voltage and overload operation, can effectively protect the feed pellet machine, balance weight noise reduction technology also greatly reduces the feed pellet machine work occurs when sound, greatly improving the acceptance rate of the feed processing plant. Feed pellet machine using modulator will feed ingredients to fully cure, played the feed ingredients of sterilization, the role of starch aging, improve the feed rate of pellet formation, and reduce the feed pellet machine, abrasive wear, extend the life of the road of the feed pellet machine.

Parameter
Raw materials corn,wheat bran,fish meal,bone powder,meat,alfafa,grassetc.
Diameter of feed pellet 2/2.5/3/3.5/4/6/8/10mm
Application feed pellet machine/plant widely be used for home,poultry and livestock farm.
Capacity 1-3T/H,also can customized according to your demand
Process Step crushing-mixing-pelletizing--cooler&screener--packing
Warranty 1Year(except spare parts)
Certication CE
Motor Siemens Brand Motor
Bearing Brand
Service after sales Engineer can provide technical support
Model Main power(kw) Out-put(t/h) Power of Conditioner(kw) Power of screw feeder(kw) In-side of rind die(mm)
SZLH250 22 0.5-1.5 2.2 0.55 250
SZLH320 37 2-3 2.2 0.75 320
SZLH350 55 3-5 3 0.75 350
SZLH400 75/90 3-10 5.5 1.5 400
SZLH420 90/110 3-14 5.5 1.5 420
SZLH508 110/132/160 6-15 7.5 2.2 508
SZLH558 180/200 10-20 11 2.2 558
SZLH678 220/250 25-30 18.5 3 678
Feature:
1. moderate grinding fineness(screen hole diameter 2-5mm),
2. Moderate curing and conditioning requirements (pellet mill equip with two layers conditioners)
3. SZLH420 (pellet mill machine) poultry & livestock feed plant capacity 10tph,
4. finished products with pellet diameter (pellet diameter is around 2.5-6mm).
5. This plant includes one hammer mill of crushing process, one batching & mixing process, one pellet machine for pelletizing processing and one feed bagging machine of packing process.
6. It is equipped with steam boiler.
7. The whole line of the 10TPH SZLH420 poultry & livestock feed plant is compact in design, reasonable in structure, meeting the requirement of environmental protection, and can be customized according to the requirements of customers.
