Chicken Cow Animal Feed Production Machine Poultry Pellet Feed Mill
Chicken Cow Animal Feed Production Machine Poultry Pellet Feed Mill
Chicken Cow Animal Feed Production Machine Poultry Pellet Feed Mill
Chicken Cow Animal Feed Production Machine Poultry Pellet Feed Mill
Specifications
Brand Name :
Shenghong
Model Number :
SZLH508
Certification :
BV, SGS, ISO9001, CE
Place of Origin :
Henan, China
MOQ :
1 set
Price :
USD 6999-19999
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
within 20 days
Packaging Details :
20GP, 40GP, 40HQ
Product name :
Animal Feed Production Machine
Voltage :
400V/380V/415V/600V
Feature :
High Efficiency Low Cost
Usage :
animal feed pellet machine
Color :
Clients' Requirement
Dimension(l*w*h) :
Actual
Power :
132/160 kw
Capacity :
10-18t/h
Description

Chicken Cow Food Animal Poultry Pellet Feed Mill Making Machine

Product description:

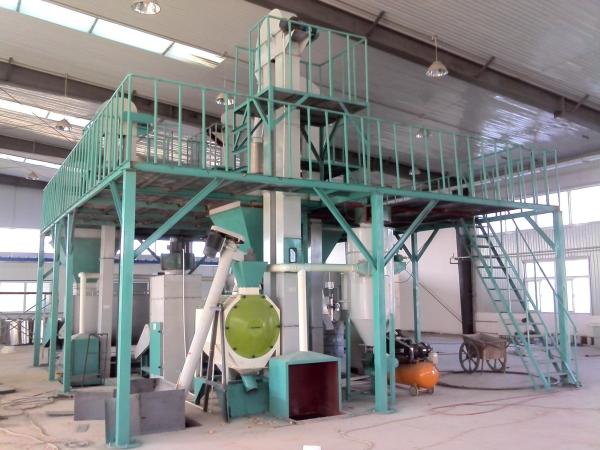

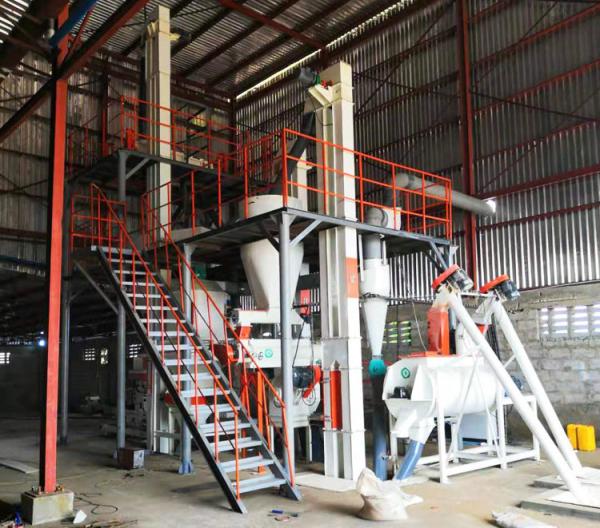

1. This product is a complete production line, which consists of 6 major parts, including material storage granary, material crusher, mixer, cooler, material screening machine, and material packaging machine.
2. The double-door structure has no leakage, the double-shaft paddle stirring time is short, the three-chain transmission runs smoothly, and the advanced fuel injection system is precise and easy to operate and control.
3. The uniquely designed return air system ensures the balance of all-round feed air flow, and there is an air purification system to reduce the residual amount. The external materials of the machine are stainless steel and composite materials.
4. Product production capacity is around 1-1.5t/h, 3-5t/h, 8-10t/h, 20t/h, 30t/h 50t/h, to meet daily production needs.
5. The product can process all kinds of grain and feed into pellets to meet the needs of various customers such as: chickens, ducks, fish, cattle, rabbits, sheep, horses, etc.

Parameter:

Model
SZLH250
SZLH320
SZLH350
SZLH420
SZLH508
Power(KW)
22
37
55
110
160
Capacity(T/H)
1
2-4
5-7
8-10
15-20
Inner dia(mm)
250
320
350
420
508
Pellet size(mm)
2-8
2-8
2-18
2-18

2-18

Process:

Crushing Machine
The hammer mill is an important piece of equipment for the raw material grinding process of the feed pellet production line. The hammer mill can grind the raw materials ingredients into the required size. It is suitable for small or medium-sized feedstuff feed mill plant. While if you manage a large-scale animal feed pellet production line, the water drop hammer mill is an ideal choice.
Mixing Machine
Mixing is one of the necessary processing in animal feed pellet production line. Proper mixing will lead to increase diet uniformity and improve the feedstuff quality. We will provide two kinds of high-efficiency feed mixers: twin shaft mixer for particle materials and screw belt mixer for powdered materials. Both of them are equipped with atomizing spraying system to add needed liquids which can improve feed pellets quality.
Pelletizing Machine
Feed pelletizing machine is the key feed equipment for the feed mill plant. The feed pelletizing machine is the ring die type which is broadly used in large capacity poultry feed production line. If you have other questions about feed pellets production requirements like capacity or scale, please contact us for more support and guidance.
Cooler
When out of the feed pelletizing machine, the feed pellets with high temperature and large moist need cooling by counterflow cooler. These feed pellets can be crushed, screened, or packed. Through the cooler, the temperature and moisture of feed pellets are decreased for the next processing.
Crumbler & Grading Sieve
Feed pellets for different animals such as poultry, cattle, and pig are of different sizes. Some big feed pellets should be crushed into small particles. The feed pellet crumbler is the right equipment for the feed pellets crushing. The double roll feed pellet crumbler is suitable for crushing animal feeds like poultry, pig, and cattle feed, etc.
Packing Machine
In order to pack for storing, transporting, and selling, automatic packing machine can weigh and pack the feedstuff pellets automatically with high accuracy.
Chicken Cow Animal Feed Production Machine Poultry Pellet Feed MillChicken Cow Animal Feed Production Machine Poultry Pellet Feed Mill
