1mm To 6mm Cow Sheep Livestock Feed Equipment 1-10 Ton Per Hr
1mm To 6mm Cow Sheep Livestock Feed Equipment 1-10 Ton Per Hr
1mm To 6mm Cow Sheep Livestock Feed Equipment 1-10 Ton Per Hr
1mm To 6mm Cow Sheep Livestock Feed Equipment 1-10 Ton Per Hr
1mm To 6mm Cow Sheep Livestock Feed Equipment 1-10 Ton Per Hr
1mm To 6mm Cow Sheep Livestock Feed Equipment 1-10 Ton Per Hr
Specifications
Brand Name :
Tianci
Model Number :
ZLH420
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
USD4000-USD80000 per line
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
30-45 days
Packaging Details :
Loading in container or packed in export carton
Item :
Livestock Cow Sheep Poultry Feed Production Line With 1-10 Ton Per Hr
Material :
Carbon Steel
Capacity :
1-10 Ton per hr
Voltage :
380V or customized
Pallet Size :
1-6mm
Application :
Chicken, goose, duck, cow, sheep, pig animal
After sale service provides :
spareparts wanrranty, abroad installation instruction
Adjustor material :
Stainless Steel
Description

Livestock Cow Sheep Poultry Feed Production Line With 1-10 Ton Per Hr

Pellet mill has the world-class technology adopted to produce many kinds of animal feed. The bearing, oil seal, O-rings of the drive part are all import. The design, quality and façade of the machine are in the international advanced level. The main drive parts use high-precision gear revolve, with this the production improved 15%-20%. The transmission gear uses high-precision gear grinding, reduced the vibration and noise. The outside painting uses automatic painting process. Paint is bright and firm. It adopts the quick-release clamp under clamping mechanism, and can be equipped with the worm gear and worm ring mould lifting device, enhances the working efficiency of the ring die, reduce the labor intensity. Modulation system adopts stainless steel extension modulation tube, very health, the modulation time and service life is longer. There are many steam adding inlets. Raw material is heated more fully. Conditioner effect is better. Configurable oil circulating cooling system, in order to enhance the cooling and lubrication effect of the main drive system of bearing. The device can work smoothly for a long time.

Models:

Model
Main Motor(kw)
Capacity(t/h)
Dimension(mm
SZLH250
22
1-2
2000*1400*1550
SZLH320
30/37
2-4
2300*1700*2000
SZLH350
37
3-6
2600*1000*2050
SZLH400
55
4-11
2880*1140*2220
SZLH420
75
5-12
3000*1300*2350
SZLH450
90
6-20
3400*1300*2550

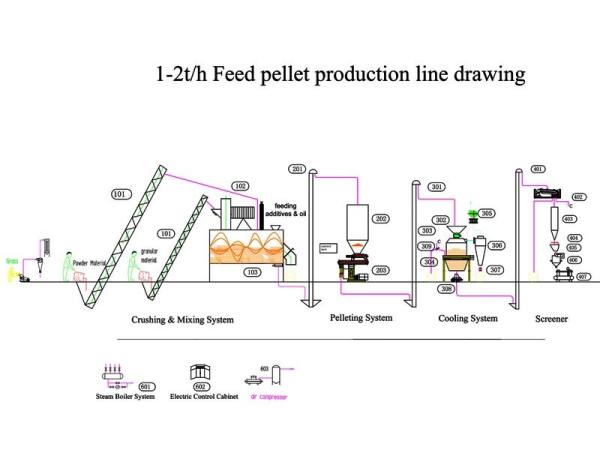

Processes:
Crusher, Ring Die Pellet Machine, cooler, screener,
Processing of 1ton per hour animal feed pellet production line

1. Grain grinder and mixer machine

Raw materials enter into the shredder is broken into granule,crushed particles passing through the mesh into the crushing chamber and mixing them at the same time.The mixed grain powder is used to make pellets.

2. Screw conveyor machine

3. Animal feed pellet machine

Chicken feed pellet machine is the main equipment of feed pellet line. It mainly makes the crushed powder into the pellets. Ring die is granulation is part of the feed pellet machine, when the feed ingredients into the ring die abrasive, by squeezing out feed particles. Feed pellet machine configuration, self-protection system in unstable voltage and overload operation, can effectively protect the feed pellet machine, balance weight noise reduction technology also greatly reduces the feed pellet machine work occurs when sound, greatly improving the acceptance rate of the feed processing plant. Feed pellet machine using modulator will feed ingredients to fully cure, played the feed ingredients of sterilization, the role of starch aging, improve the feed rate of pellet formation, and reduce the feed pellet machine, abrasive wear, extend the life of the road of the feed pellet machine.

4. Animal feed pellet cooler machine

1mm To 6mm Cow Sheep Livestock Feed Equipment 1-10 Ton Per Hr

Our Advantage:

  • 20 year machinery production experience
  • Full technical support
  • Aftersale installation service
  • Quality insurance and competitive price
