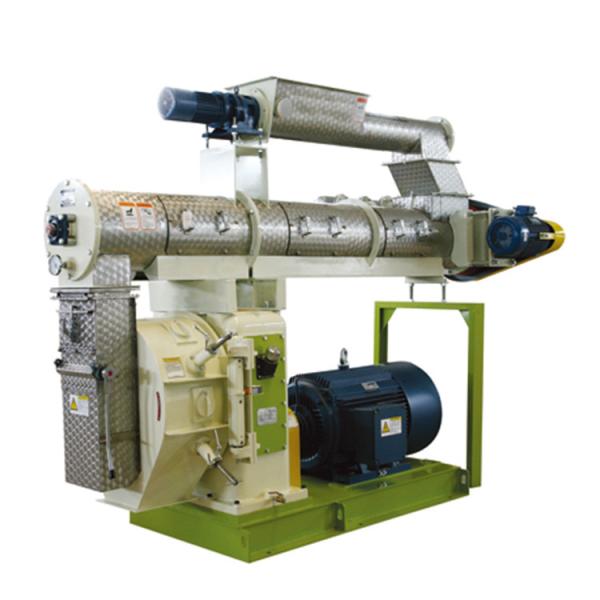

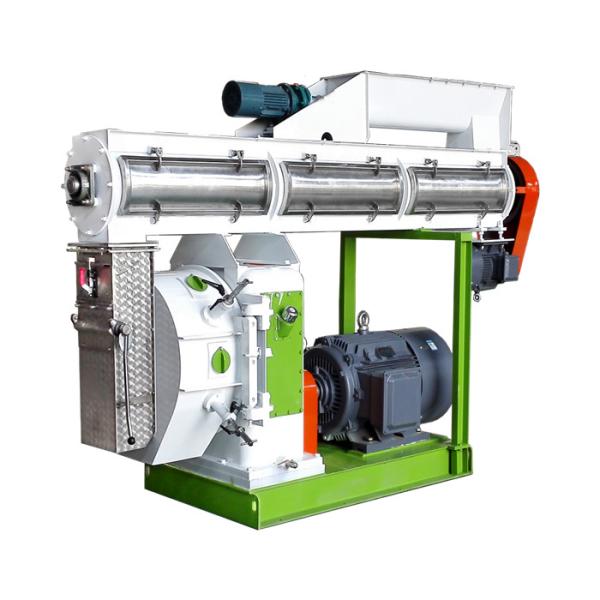

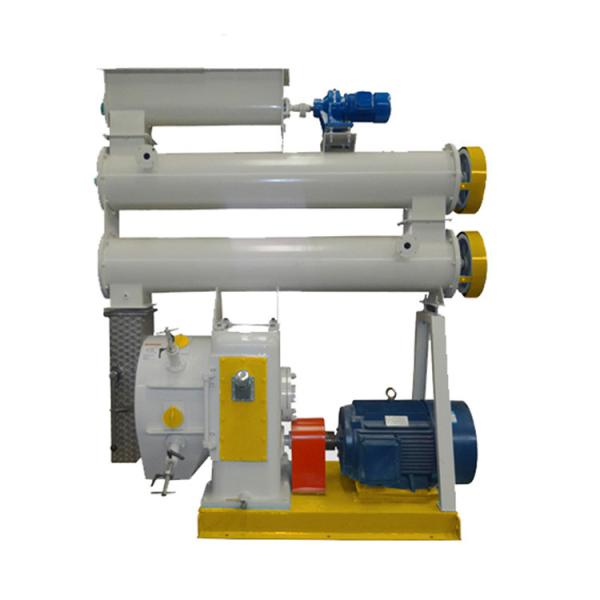

Animal Feed Production Plant Poultry Feed Pelletizing Production Line

Feed particles can be crushed materials for granulation, so that it can be convenient to use, the common is to break some biological resources for granulation, so that biological resources can be more widely used, the value will become more large.

Features of pellet machine animal feed/animal feed factory/animal feed production line:

1. Equipped with a dual-axis differential regulator to make the raw materials, steam and liquid evenly mixed, improve the cooking effect, and make the feed pellets reach an advanced level.

2. Gear box: with pinion shaft, main gear, main shaft, sleeve shaft, gear box, manual lubrication system and overload protection system.

3. Coupling assembly: with hub taper lock hole, bushing taper lock, S-shaped grille cover, etc.

4. A set of roller components-two roller system.

5. The special design of the ring die is suitable for low bulk weight granulation; it is made of alloy steel or all stainless steel, which is wear-resistant and has a long life.

6. Gear transmission, elegant and efficient gear box makes the granulator high in transmission efficiency.

7. A door made of a knife assembly.

8. Passed ISO9001 and EU CE certification; stable operation and low consumption.

9. Feeding chute: It can be used for external unloading by pulling out the unloading lever arm outside the feeding chute to prevent feed from entering the pellet room, which is convenient for commissioning and troubleshooting.

10. Output particle size: poultry feed 2mm-12mm (optional), aquatic feed 1-5mm (optional).

The inferior ring die pursue sale price is low, so it has limitations on stock selection, impossible to choose a good material, can only choose inferior low-cost steel billet as raw materials, molecular structure of the billet is not tight, toughness can not meet the requirements, anti-wear degree difference, made of the steel billet, short service life of ring die easy craze.
