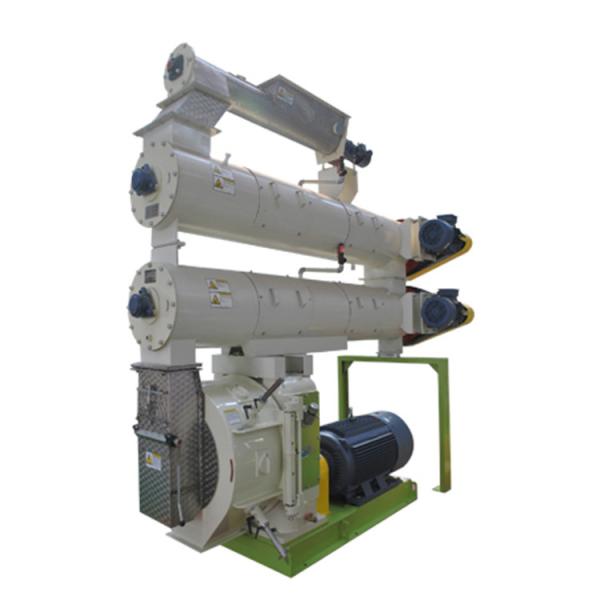

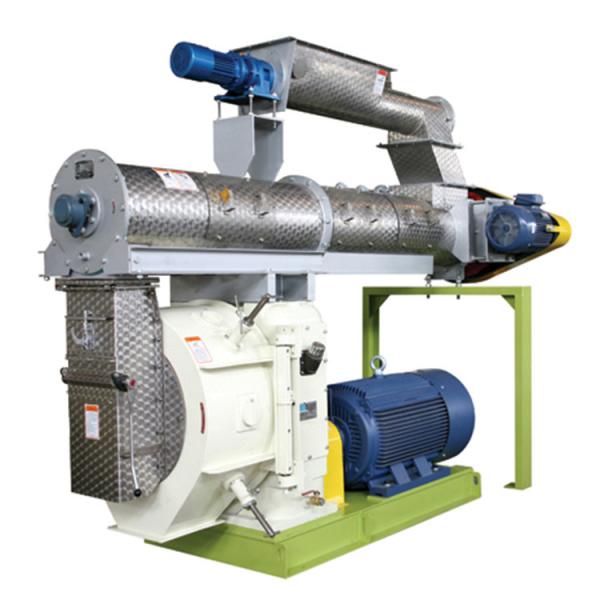

132-160kw Cattle Feed Manufacturing Plant 20tph Livestock Feed Pellet Mill
132-160kw Cattle Feed Manufacturing Plant 20tph Livestock Feed Pellet Mill
132-160kw Cattle Feed Manufacturing Plant 20tph Livestock Feed Pellet Mill
132-160kw Cattle Feed Manufacturing Plant 20tph Livestock Feed Pellet Mill
132-160kw Cattle Feed Manufacturing Plant 20tph Livestock Feed Pellet Mill
132-160kw Cattle Feed Manufacturing Plant 20tph Livestock Feed Pellet Mill
Specifications
Brand Name :
SHENGHONG
Model Number :
SZLH
Certification :
BV, SGS, ISO,CE
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
USD 500-2000 piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 Pieces Per Month
Delivery Time :
within 5 days
Packaging Details :
Plywood packing, 20GP, 40GP, 40HQ
Brand :
Shenghong
Power :
132-160 kw
Product model :
SZLH508E
Type :
pellet machine
Customization :
Yes
Output :
12-20 t/h
Description

Feed Pellet Mill Livestock Poultry Animal Cattle Feed Manufacturing Plant

1. The main drive adopts high-precision gear drive, and the ring mold adopts quick-discharge hoop type. The output is about 20% higher than that of belt drive type.


2. The transmission part of the whole machine (including the motor) is made of Swiss and Japanese high-quality bearings to ensure efficient, stable and low noise transmission


3. All stainless steel and large reinforcement feeder, adopt frequency conversion speed regulation control, to ensure the high quality of pellet feed.


4. Alloy steel ring die is made by international advanced German gun drill and American vacuum furnace heat treatment manufacturing process, with long service life, smooth grain and high quality.


5. The international advanced level of compensation snake snake spring coupling, with novel structure, compact, safe, low noise, low fault performance.


6. High-performance permanent magnet iron suction device.


7. Adopt international advanced piping system and imported pressure regulating valve.


8. Advanced supporting products, if can be used together with zhengchang's improved design of N8 countercurrent cooler, 150* 2D rotary grading screen and advanced fine tooth granulator, the feed particles can reach the highest quality.


9. Can be customized double layer, three layer modulator granulator, production of high quality livestock, poultry and aquatic feed.

Parameter

Model SZLH250 SZLH320 SZLH350 SZLH420 SZLH508
Power(KW) 22 37 55 110 160
Capacity(T/H) 1 2-4 5-7 8-10 15-20
Inner dia(mm) 250 320 350 420 508
Pellet size(mm) 2-8 2-8 2-18 2-18 2-18

Features:

Compact, modular and containerized small feed mill with advantages of low investment, compact structure and flexible operation:
1. With reasonable technology, homogeneous grinding particles, high capacity and low energy consumption, it can produce 1000-40000 tons mash and pellet feed per shift annually.
2. Modular Structure: The plant is compact, which occupies less floor space and has low requirement on the mill tower, also needs low investment in civil works. This structure is convenient for assembly and disassembly, facilitates the shipment and installation
3. High accuracy dosing system with centralized control: the analogue panel is adopted. All machines can be interlocked and safety, alarm device is available. The operation is simple and convenient
4. Wide applicable scope: The plant can produce both poultry & livestock feed and fish feed and is applicable for medium and small sized feed mills.
132-160kw Cattle Feed Manufacturing Plant 20tph Livestock Feed Pellet Mill132-160kw Cattle Feed Manufacturing Plant 20tph Livestock Feed Pellet Mill
Our service:
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
