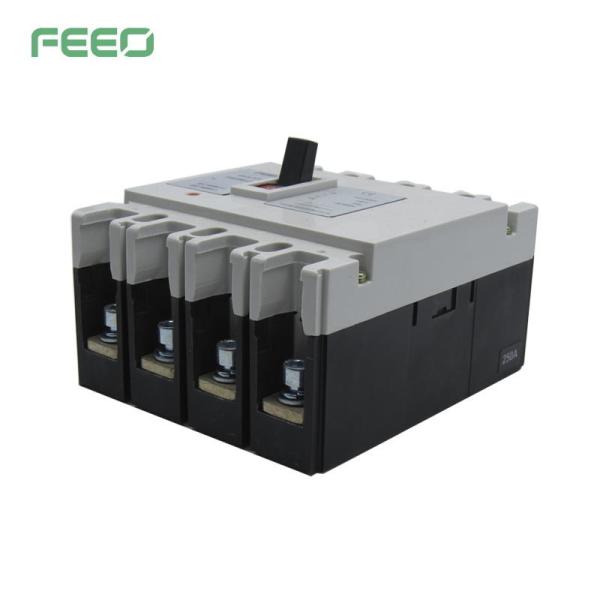

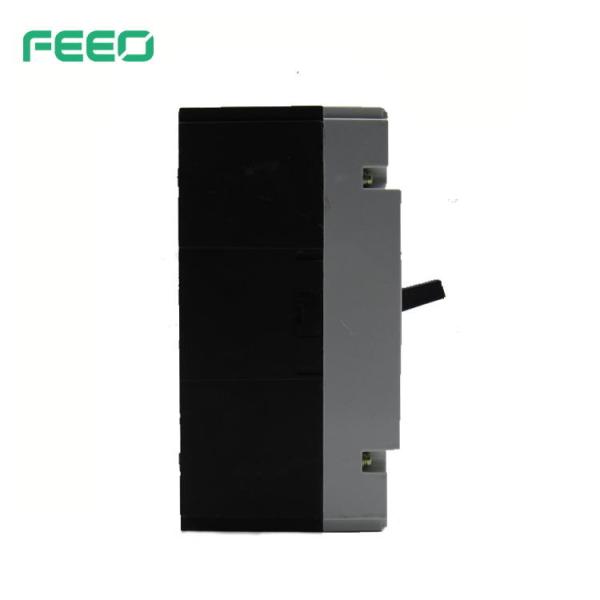

Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V
Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V
Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V
Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V
Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V
Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V
Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V
Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V
Specifications
Brand Name :
FEEO
Model Number :
FPVM
Certification :
CE RoHS CCC ISO9001
Place of Origin :
Zhejiang, China
MOQ :
1 piece
Price :
$69.62~$2316.19/piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
15days
Packaging Details :
44mm*36.5mm*25.5mm
Rating Isolation Voltage :
1500V
Test Voltage :
3000V
Rating Impulse Voltage :
8000V
Rating Working Voltage :
1500V
Rating Current :
125A~1250A
Stardand :
IEC60947-2
Description

DC 1500V Huge Capacity Moulded Case Circuit Breaker Solar PV Power System Protector

Product Description

FPVM DC MCCB is designed to distribute power and protect the circuit

and power equipment against overload in solar system.

It is apply to rating current 1250A or less,direct current rating voltage 1500V or less.

Products according IEC60947-2, GB14048.2 standard.

Specifications

Model FPVM-125 FPVM-250 FPVM-400 FPVM-630 FPVM-800 FPVM-1250
Rated Continuous Current 125 250 400 630 800 1250
Rated Insulation Voltage

500

750

1000

1500

550

750

1000

1500

750

1000

1500

750

1000

1500

750

1000

1500

750

1000

1500
Rated Insulation Voltage 1500 1500 1500 1500 1500 1500
Uimp 8KV 8KV 8KV 8KV 8KV 8KV
Test voltage one min 3550 3550 3550 3550 3550 3550
Mechnical Life 7000 7000 4000 4000 2500 2500
Electrical Life 2000 2000 1000 1000 800 600
Breaking Times 20 20 20 20 20 20
Installation Location Any place
Isolator Capacity YES
Protection Degree IP20
Arcing Distance >50

Connection

Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V

Details

Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V

Characteristic Curve

Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500VSolar PV Power System IP20 Moulded Case Circuit Breaker DC 1500VSolar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V

Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V

Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V

Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500VSolar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V

Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V

Solar PV Power System IP20 Moulded Case Circuit Breaker DC 1500V
