easy installation CE AC 230V Generator Manual Transfer Switch
easy installation CE AC 230V Generator Manual Transfer Switch
Specifications
Brand Name :
FEEO
Model Number :
FCOS-63
Certification :
CE/CCC/Rohs
Place of Origin :
China
MOQ :
1piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per week
Delivery Time :
7days
rated current :
1~63A
No of poles :
1, 2, 3, 4
rated working voltage :
AC230V/400V ; DC 250V/550V
frequency :
50hz
rated short circuit breaking capacity :
4KA
mode of operation :
manual
Description
FCOS Manual Transfer Switch Interlock Circuit Breaker Dual Power AC 230V/400V
♦ Product Application
FCOS Series can be used as a hand-operated miniature dual power transfer switch.
In the case of FCOS Series is suitable for use in industrial, shopping malls, shops,
one side breaker closing, the other side of the circuit breaker can only be kept disconnected,
and the protection functions of the common power supply (mains) and standby power
supply line switching can be realized. hospitals, mines, schools, government agencies
and other special places with two main lines, often used with voltage regulators and
other electrical appliances
♦ Product Features
•The product has increased the interlocking function, that is, in the case of the closing of
one side of the circuit breaker, the other side of the circuit breaker can only maintain
the disconnected state, and realize the protection functions such as line switching.
•The product has overload and short circuit protection functions, can be automatically
disconnected when a fault occurs on the line, protect the line
• Power in and out, in line with the characteristics of the power line, easy installation
♦ Technical Parameter
Type Manual Transfer Switch
Rated Current 1~63A ; 80~125A
Poles 1p , 2p , 3p , 4p
Rated Working Voltage AC 230/400V ; DC 250/550V
Frequency 50Hz
Rated Short circuit Breaking Capacity 4kA ; 10kA

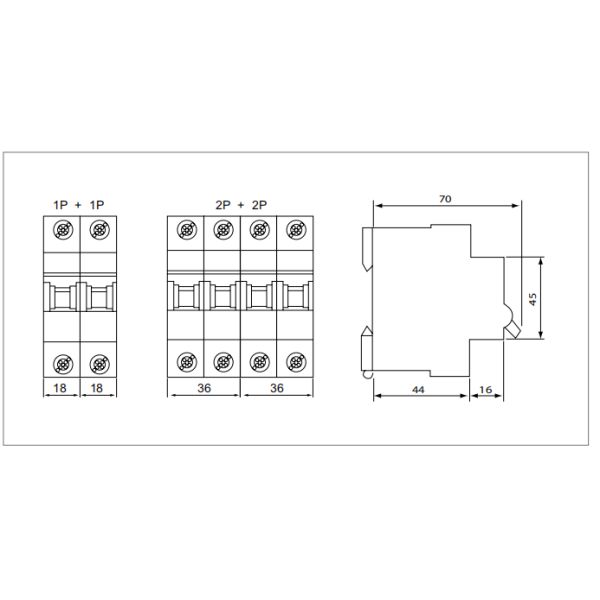

♦ Dimensions (FCOS-63)

easy installation CE AC 230V Generator Manual Transfer Switch

easy installation CE AC 230V Generator Manual Transfer Switcheasy installation CE AC 230V Generator Manual Transfer Switcheasy installation CE AC 230V Generator Manual Transfer Switcheasy installation CE AC 230V Generator Manual Transfer Switcheasy installation CE AC 230V Generator Manual Transfer Switcheasy installation CE AC 230V Generator Manual Transfer Switcheasy installation CE AC 230V Generator Manual Transfer Switch
