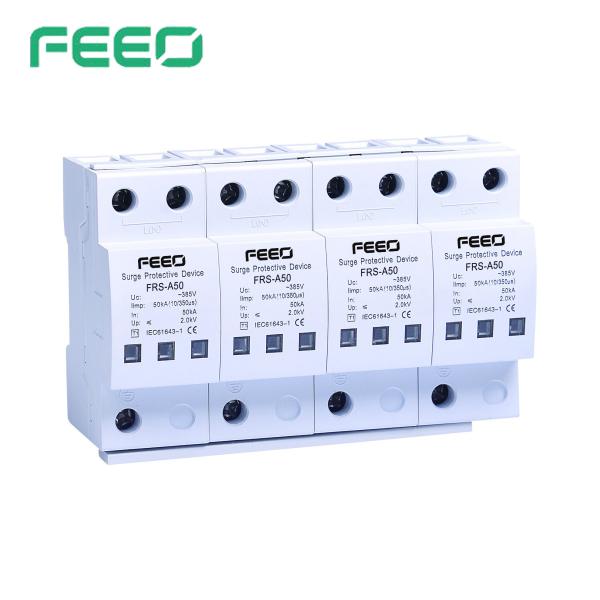

IP20 4P AC Surge Protector For Solar PV System
IP20 4P AC Surge Protector For Solar PV System
Specifications
Brand Name :
FEEO
Model Number :
FRS-A50
Certification :
CE/CCC/TUV/RoHS
Place of Origin :
CHINA
MOQ :
1PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs per week
Delivery Time :
7days
Packaging Details :
120pcs per carton
Pole :
4P
Un :
220/380VAC
Uc :
275/385/420VAC
Limp :
50KA
Up :
1.8KV
Size :
144*90*66
Material :
Plastic
Protection Level :
IP20
Description

FRS-A Surge Protector For Solar Pv System Surge Protective Device Ac Spd

Accessories

*Large discharge energy
*No leakage
*No follow current
*Modular installation
*High safety coeffecient
*Strong environmental resistance
*Voltage protection level is less than 2500V

FRS-A series voltage limiting type/ voltage switching type primary power surge protectors are designed according to IEC and EN 61643 standards, and applied to surge protection at the first stage of the power supply system. Products are standard 35mm rail mounting methods.

FRS-A series voltage limiting type/ voltage switching type primary power surge protectors with high flow capacity, single module impact current up to 50KA(10/350s), can prevent all kinds of lighting surge. Products are applies to the power supply of the equipment system in the higher risk area of lighting strike. The first surge protection can be used in single phase/ three-phase power supply line.

The scope of products

*Main power distribution panel in buildings
*Overhead distribution box in buildings
*Outdoor distribution cabinet/ distribution box

Products capability parameter

Model FRS-A15 FRS-A25 FRS-A50
SPD port 2Poles 3Poles 4Poles
SPD category Voltage limited type Voltage limited type Voltage limited type
Test category Class I test Class I test Class I test
Un 220/380 VAC; 50/60Hz
Uc 275/385/420 VAC; 50/60Hz
Insulation resistance >100MΩ >100MΩ >100MΩ
Limep(10/350 μs) 15kA 25kA 50kA
Up(1.2/50μs) 1.5kV 1.5kV 1.8kV
tA ≤100ns ≤100ns ≤100ns
Size 144*90*66 144*90*66 144*90*66
Sectional area of wires 6~25mm² 6~25mm² 6~25mm²
Installation method 35mm standard rail( EN50022/DIN46277-3)
Woeking enviroment temperature -40℃~+85℃
Sheathing material Plastic, accord with UL94 V-0
Protection level IP20
Autehntication CQC CE Type test

IP20 4P AC Surge Protector For Solar PV SystemIP20 4P AC Surge Protector For Solar PV SystemIP20 4P AC Surge Protector For Solar PV SystemIP20 4P AC Surge Protector For Solar PV System
