EN50539-11 3P DC Surge Protector For Solar Panel
EN50539-11 3P DC Surge Protector For Solar Panel
EN50539-11 3P DC Surge Protector For Solar Panel
EN50539-11 3P DC Surge Protector For Solar Panel
EN50539-11 3P DC Surge Protector For Solar Panel
EN50539-11 3P DC Surge Protector For Solar Panel
EN50539-11 3P DC Surge Protector For Solar Panel
EN50539-11 3P DC Surge Protector For Solar Panel
Specifications
Brand Name :
FEEO
Model Number :
FSP-D40 3P
Certification :
CCC/CE/TUV/RoHS
Place of Origin :
China
MOQ :
1PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs per week
Delivery Time :
7days
Packaging Details :
72pcs per carton
Pole :
3P
Classified test :
II
Uoc max :
1000/1500V
Uc :
1000/1500V
In(8/20)us :
20KA
Imax (8/20)us :
40KA
Up :
2.0KV
PVDC-specific :
EN50539-11
Description

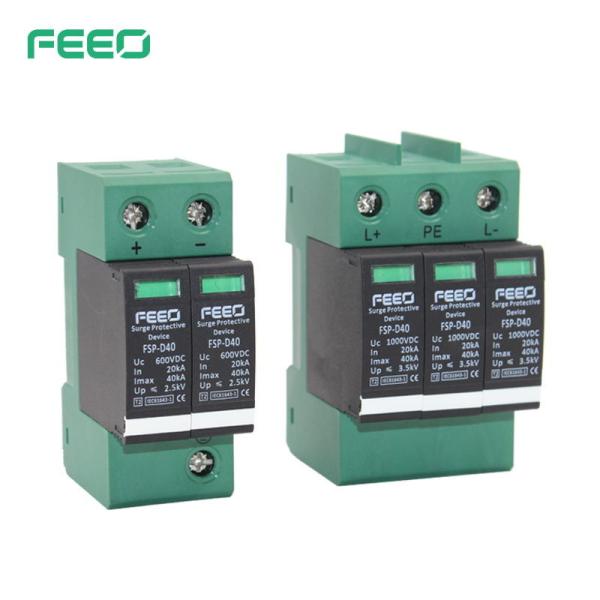

FSP-D40 3P 1500V EN50539-11 Solar 40KA DC Surge Protector
Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
These units must be installed in parallel on the dc networks to be protected and provide common and different modes protection.
It's installed location are recommended at both ends of the dc power supply line (solar panel side and inverter/converter side),
especially if the line routing is external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.

Specifications

FSP-D40 Surge Protector FSPD40
PVDC-specific EN50539-11
Pole 2P 2P 3P 3P 2P(CUSTOMIZED)
Electrical parameter
Classified test II II II II II
Uoc max(VDC) 600 800 1000 1500 12/24
Uc(VDC) 600 800 1000 1500 12/24
In(8/20)us(kA) 20 20 20 20 20
Imax(8/20)us(kA) 40 40 40 40 40
Up(kV) 2.0 2.5 3.8 5.3 2.0


Remote Signal Contact

Remote
Signal
Contact

 Maximum working voltage(V) 250VAC/30VDC 250VAC/30VDC
Maximum working current(A) 1A (250V/AC) 1A (250V/AC) 1A (250V/AC)
1A (30V DC) 1A (30V/AC) 1A (30V/AC)


Installation and Dimensions

Wiring capacity(mm2) Hard wire 4-25 4-25
Flexible wire 4-16 4-16
Stripping length(mm) 10 10
Terminals crcwa M5 M5
Torque(Nm) Main circuit 3.5 3.5
Remote signal contact 0.25 0.25
Protection class All profile IP40 IP40
Connection port IP20 IP20
Installation environment No obvious shock and vibration
Altitude (m) ≤2000 ≤2000
Working temperature -30℃~+70℃ -30℃~+70℃
Relative humidity 30%~90% 30%~90%
How to install installed with H 35-7.5/DIN 35 steel mounting rail
Size(mm)(W x H x L) W 36 54
H 90 90
L 67.6 67.6
Weight(kg) 0.24 0.36


Wiring Diagram
EN50539-11 3P DC Surge Protector For Solar Panel

Dimensions
EN50539-11 3P DC Surge Protector For Solar Panel

Drawing
EN50539-11 3P DC Surge Protector For Solar PanelEN50539-11 3P DC Surge Protector For Solar Panel
EN50539-11 3P DC Surge Protector For Solar Panel
EN50539-11 3P DC Surge Protector For Solar PanelEN50539-11 3P DC Surge Protector For Solar PanelEN50539-11 3P DC Surge Protector For Solar PanelEN50539-11 3P DC Surge Protector For Solar Panel
