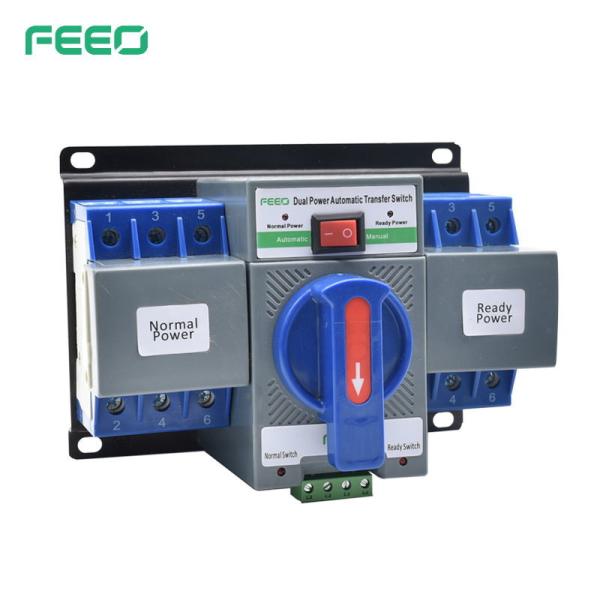

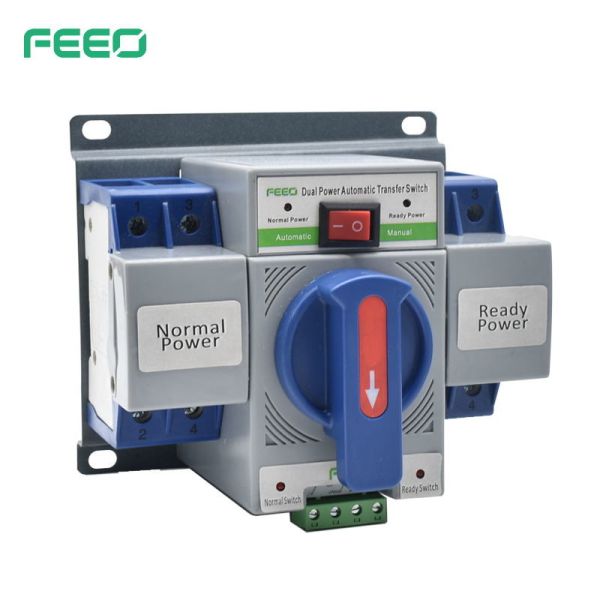

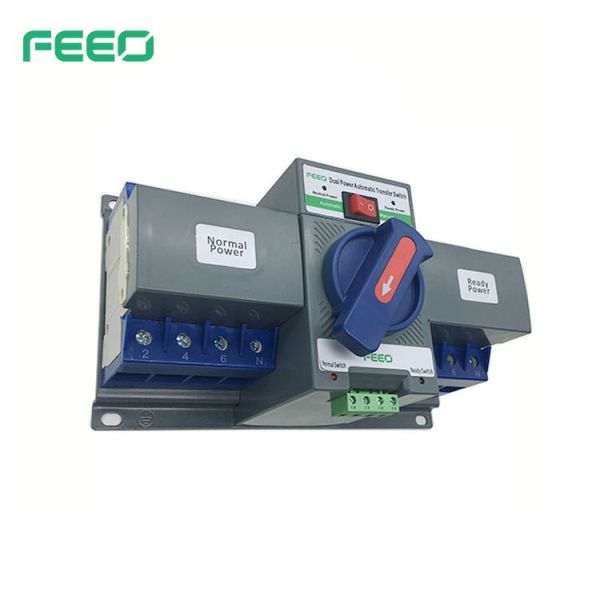

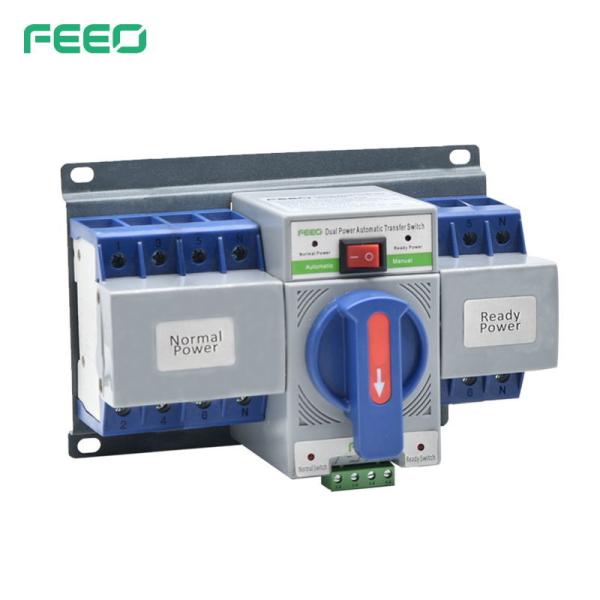

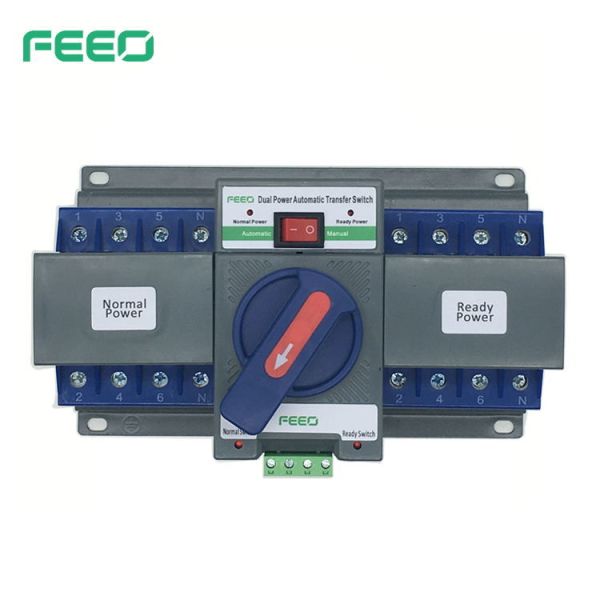

230VAC Automatic Power Transfer Switch 63A ATS Changeover 4P
230VAC Automatic Power Transfer Switch 63A ATS Changeover 4P
230VAC Automatic Power Transfer Switch 63A ATS Changeover 4P
230VAC Automatic Power Transfer Switch 63A ATS Changeover 4P
230VAC Automatic Power Transfer Switch 63A ATS Changeover 4P
230VAC Automatic Power Transfer Switch 63A ATS Changeover 4P
230VAC Automatic Power Transfer Switch 63A ATS Changeover 4P
230VAC Automatic Power Transfer Switch 63A ATS Changeover 4P
Specifications
Brand Name :
FEEO
Model Number :
FTS
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
7000 pcs per week
Delivery Time :
7days
Color :
Blue
Current :
63A
Voltage :
230VAC
Weight :
1.51KG
Description

China dc cut off Ats controller automatic transfer switch

dc automatic transfer switch Features:

1.Reasonable structure, small volume, nice appearance, provided with protective shield, safer and more reliable power supply.
2.Complete protective functions, including short circuit, overload, open phase and loss-of-voltage protection.
3.Reliable remote double-break with EPS fire protection power supply interface DC12-24V.
4.Noiseless, energy saving , simple installation , easy operation, reliable and stable performance.

dc automatic transfer switch Parameters:

Item
ATS
Rated Working Current
10A
16A
20A
25A
32A
40A
50A
63A
Rated Working Voltage
AC400V
Controling Voltage
AC230V
Rated Short Circuit Breaking Capacity
3KA
Rated Short Circuit Making Capacity
3KA
Rated Insulation Voltage
AC500V
Transfer Time
≤3S
Frequency
50/60HZ
ATS Level
CB Class
Standard
IEC60947-1

ATS automatic transfer switch
ATS (Automatic transfer switching equipment), automatic transfer switch. ATS is mainly used in emergency power supply systems to automatically switch load circuits from one power supply to another (standby) power supply to ensure continuous and reliable operation of important loads. The ATS is a mechanical structure, and the conversion time is more than 100 milliseconds, which will cause the load to cut off. Suitable for lighting and electrical loads.
Among them, the automatic transfer switch derived from the load switch adopts double-row compound contacts, transmission mechanism, micro-motor pre-energy storage, and micro-electronic control technology, which basically realizes zero flashover. The drive motor is a polychloroprene rubber insulated damp-heat motor, equipped with a safety device to automatically trip when the temperature exceeds 110°C and overcurrent. After the fault disappears, it will be automatically put into operation, which greatly guarantees the life of the switch
