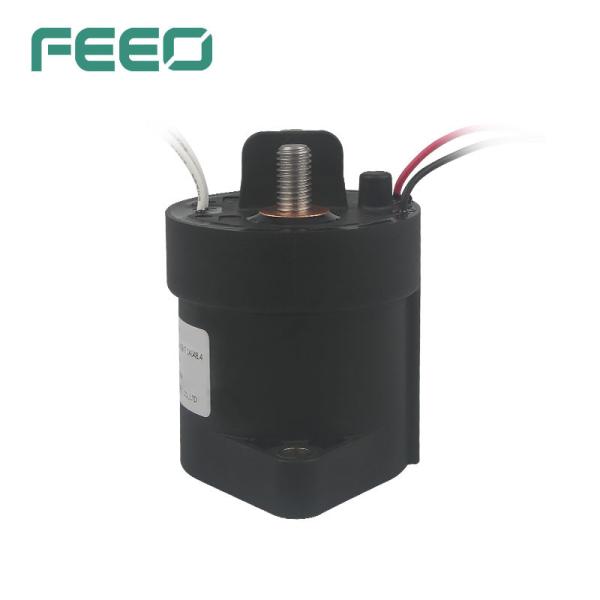

High Voltage Solar Cable Connector FDCT-250 Auto DC 250A Amp Contactor
High Voltage Solar Cable Connector FDCT-250 Auto DC 250A Amp Contactor
Specifications
Brand Name :
FEEO
Model Number :
Dc Contactor
Certification :
CB CE ROHS
Place of Origin :
China
Model Number: :
FDCT-250A
Electricity Type: :
DC
Number of Pole: :
2
Main Circuit Rating Current: 250A :
250A
Electrical life: :
20.000times
Mechanical life: :
1,000,000 times
Coil Voltage: :
12-750VDC
Rated load current: :
250A
Description
Parameters Standard Type Voltage
12VDC 24VDC
Work voltage 9~16 18~32
Max voltage 16 32
Action voltage ≤9 ≤18
Release voltage ≥1 ≥2
Coil Resistance 25 94
Min start current 0.48A 0.26A
Transient surge current - -
Average holding current 0.48A 0.26A
steady state time 5.8W 6W
Actuation time ≤50ms ≤50ms
Release time ≤10ms ≤10ms
Bounce time ≤5 ≤5

Parameters

Contact form 1H Leading-out M8 internal thread
Contact resistance 0.2 mΩ(200A) Rated load voltage 12~900VDC
Maxmum switching current 2000A 320VDC ( over 1 times) Maximum Switching power 640KW
Rated load current 200A Rated Electric life 10000 (times)
Min load 1A12VDC Standards for electric current (10mm2 line0 200A
short time overload current 320A 5min, 400A 2min 500A 30s

Conditions of usage

Operate temperature -40℃~85℃
Operating Humidity 5%~95%RH
IP Grade IP67
Dimension (W*H*D) 80*64.2*74
Weight (g) Q: 460g

Overcurrent faults can be divided into acceleration, deceleration, and constant speed overcurrent. It may be caused by reasons such as too short acceleration and deceleration time of the inverter, sudden changes in load, uneven load distribution, and output short circuit. At this time, it is generally possible to extend the acceleration and deceleration time, reduce the sudden change of the load, add energy-consuming braking components, carry out load distribution design, and check the line. If the inverter is disconnected from the load or the overcurrent fault occurs, it means that the inverter circuit is broken and the inverter needs to be replaced.

Overload fault

Overload faults include variable frequency overload and motor overload. It may be caused by the acceleration time being too short, the grid voltage being too low, the load being too heavy and so on. Generally, it is possible to extend the acceleration time, extend the braking time, check the grid voltage and so on. The load is too heavy, and the selected motor and inverter cannot drive the load. It may also be caused by poor mechanical lubrication. For the former, high-power motors and inverters must be replaced; for the latter, the production machinery must be overhauled.

Fault summary

1. In short, you must follow the instructions of the inverter manual when designing, installing and using the inverter;

2. All electrical designers and on-site electrical debuggers can improve the
