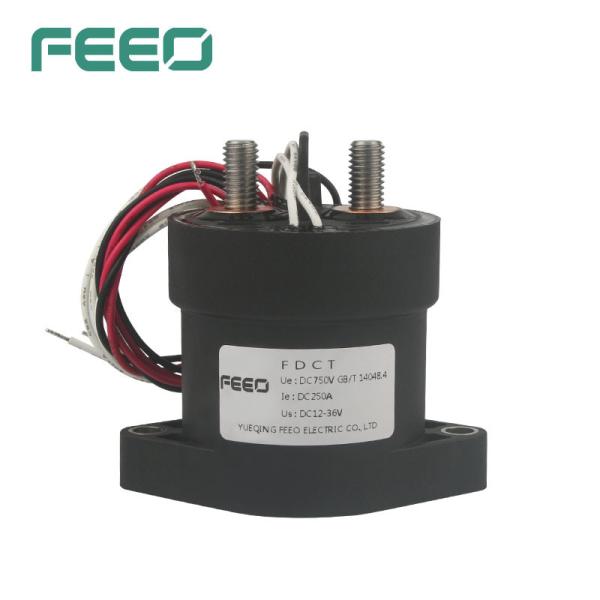

250A Auto Relay Solar Cable Connector FDCT-250 IEC Standard
250A Auto Relay Solar Cable Connector FDCT-250 IEC Standard
Specifications
Brand Name :
FEEO
Model Number :
Dc Contactor
Certification :
CB CE ROHS
Place of Origin :
China
Model Number: :
FDCT-250A
Electricity Type: :
DC
Number of Pole: :
2
Main Circuit Rating Current: 250A :
250A
Electrical life: :
20.000times
Mechanical life: :
1,000,000 times
Coil Voltage: :
12-750VDC
Rated load current: :
250A
Description
Parameters Standard Type Voltage
12VDC 24VDC
Work voltage 9~16 18~32
Max voltage 16 32
Action voltage ≤9 ≤18
Release voltage ≥1 ≥2
Coil Resistance 25 94
Min start current 0.48A 0.26A
Transient surge current - -
Average holding current 0.48A 0.26A
steady state time 5.8W 6W
Actuation time ≤50ms ≤50ms
Release time ≤10ms ≤10ms
Bounce time ≤5 ≤5

Parameters

Contact form 1H Leading-out M8 internal thread
Contact resistance 0.2 mΩ(200A) Rated load voltage 12~900VDC
Maxmum switching current 2000A 320VDC ( over 1 times) Maximum Switching power 640KW
Rated load current 200A Rated Electric life 10000 (times)
Min load 1A12VDC Standards for electric current (10mm2 line0 200A
short time overload current 320A 5min, 400A 2min 500A 30s

Conditions of usage

Operate temperature -40℃~85℃
Operating Humidity 5%~95%RH
IP Grade IP67
Dimension (W*H*D) 80*64.2*74
Weight (g) Q: 460g

A DC contactor refers to a contactor whose iron core is DC controlled, and its load can be either DC or AC. The iron core of the DC contactor is different from the AC contactor. It has no eddy current, so it is generally made of mild steel or industrial pure iron to make a round shape. Since the attracting coil of the DC contactor is energized with DC, there is no impulsive starting current, and there is no violent impact on the iron core. Therefore, it has a long life and is suitable for frequent start and stop occasions. The selection of AC and DC contactors can be found in the electrical product catalog according to the working voltage and current of the line.
