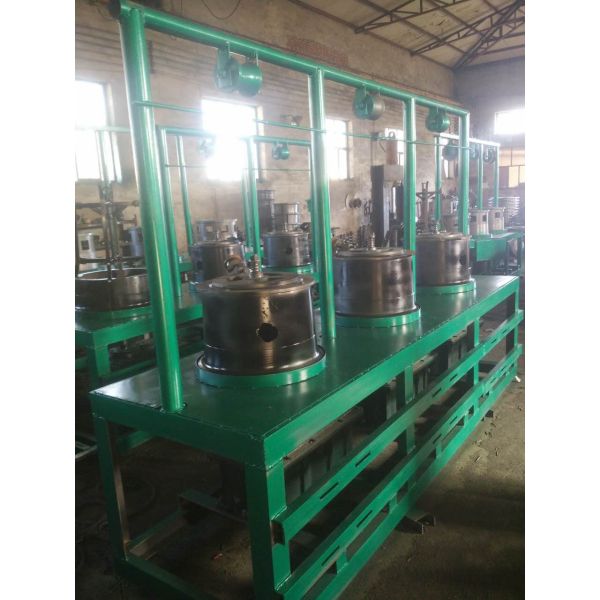

High Speed Wire Drawing Machine Pulley type 346.9m/Min PLC Automatic Control
High Speed Wire Drawing Machine Pulley type 346.9m/Min PLC Automatic Control
Specifications
Brand Name :
DIAOZHUO
Model Number :
DZ-BSJ650 DZ-BSJ900 DZ-BSJ1100
Certification :
CE ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
1set
Price :
variable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
20-30 days
Packaging Details :
with water-proof film covered or at customer's request
engineers :
door to door sevice
Total compressing rate :
40% - 90%
function :
drawing wire
control :
PLC Automatic
material :
black annealled wire
drum :
as required for the wire diameter
Description

Automatic wire drawing machine for low carbon steel and high carbon steel wire

Pulley type wire drawing machine's main parameter

Model Unit 560 450
Inlet wire Tensile Strength kg/mm2 δ>110 128
Max Dia. of Inlet Wire mm 6.5 3.4
Min Dia. of Outlet Wire mm 2 1
Drwaing Psses/Dia. of Block times/mm 1-6/560 1-7/450
Max Average Compressibility % approx 30 20
Designed Total Compressibility % approx 78-88.5 77.9
Max Speed of Block m/min 245 346.9
Motor Power/Block kw 18.5-30 7.5-11
Weight kg 2000 1500
Overall Dimensions mm 1700x115x1750 1520x81x1700
