Pulley Wire Drawing Machine 2000KG For Metal Mesh Factory
Pulley Wire Drawing Machine 2000KG For Metal Mesh Factory
Pulley Wire Drawing Machine 2000KG For Metal Mesh Factory
Pulley Wire Drawing Machine 2000KG For Metal Mesh Factory
Pulley Wire Drawing Machine 2000KG For Metal Mesh Factory
Pulley Wire Drawing Machine 2000KG For Metal Mesh Factory
Pulley Wire Drawing Machine 2000KG For Metal Mesh Factory
Pulley Wire Drawing Machine 2000KG For Metal Mesh Factory
Specifications
Brand Name :
DIAOZHUO
Model Number :
DZ500 DZ650 DZ900 DZ1000 DZ1300
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
variable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
30 SETS ONE MONTH
Delivery Time :
5-10 DAYS
Packaging Details :
NUDE
COLOUR :
Blue , Green And Gray
TYPE :
Automatic
FEEDING :
Automatic By Stands
WELDING :
Fast
ENGINEER :
After Sales Services Door To Door
MATERIAL :
LOW CARTON AND HIGH CARTON STEEL WIRE
Description

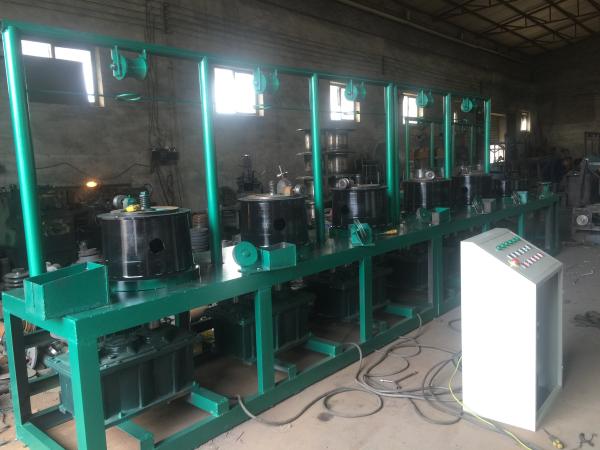

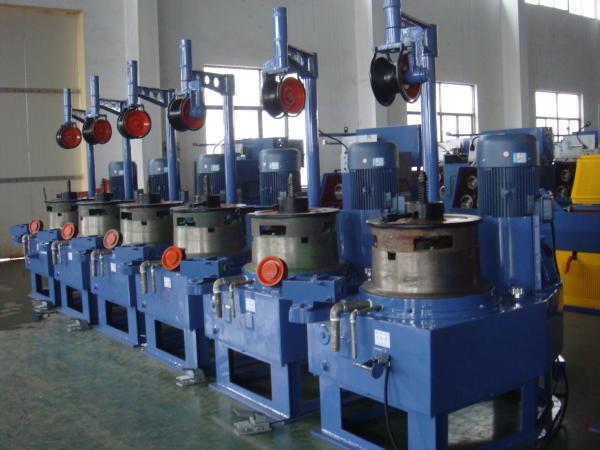

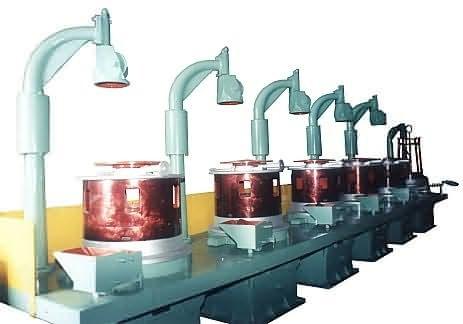

pulley type automatic high capcity speed wire drawing machine

The set of the machines is a ideal equipment drawing wire stock high, medium and carbon steel, as well as copper,alumium, and alloy. The machines are applied to drawing wire in the factories such as wire-steel factory, metal mesh factory and nail making factory etc.

Main parameter

Model (Unit) 560 450 350
Inlet wire tensile strength kg/mm2 >110 128 >140
Max dia. of inlet wire mm 6.5 3.4 2.5
Min dia. of outlet wire mm 2 1 0.75
Drawing passes/Dia. of block -- 1-6/560 1-7/450 1-6/350
Max average compressibility % 30 20 21
Designed total compressibility % 78-88.5 77.9 78
Max speed of block m/min 245 346.9 200
Motor power/Block kw 18.5-30 7.5-11 7.5-11
Weight kg 2000 1500 1000

Overall dimensions

 mm 1700x1150x1750 1520x810x1700 1400x800x1500
