1250mm Perforated Metal Machine 220mesh/min 380V Simple Operation
1250mm Perforated Metal Machine 220mesh/min 380V Simple Operation
1250mm Perforated Metal Machine 220mesh/min 380V Simple Operation
1250mm Perforated Metal Machine 220mesh/min 380V Simple Operation
Specifications
Brand Name :
DIAOZHUO
Model Number :
DZ-CKW250 DZ-CKW2000 DZ-CKW1500
Certification :
CE ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
1set
Price :
variable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 sets per month
Delivery Time :
20-30 days
Packaging Details :
with water-proof film covered or at customer's request
Description

Diaozhuo Ckw-1250 Max Width 1250 Perforated Metal Machine​

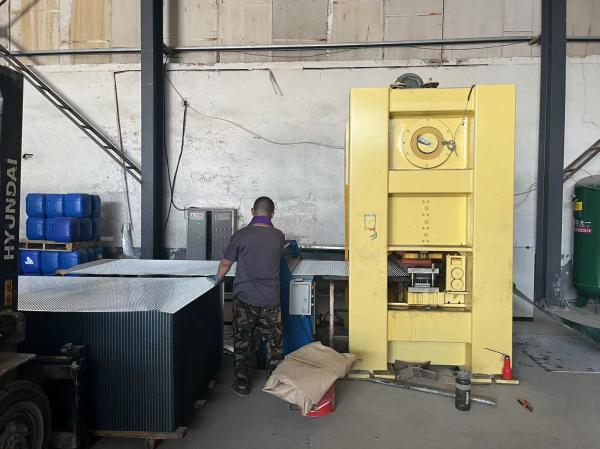

The perforated metal machine also called punching machine.The independent research and development of CNC perforated metal machine is composed of CNC programming system, deep throat punching machine, mold and feeding platform. The feeding platform is accurate in positioning, simple in operation and accurate in feeding. The programming system is simple to program, easy to operate and equipped with protection. The electric cabinet can play a very good protective effect on the system computer, and is beautiful and generous. The punching machine runs stably, the mold loss is small, and it is durable.

The perforated metal machine can punch various hole type: rectangular hole, square hole, diamond hole, round hole, hexagonal hole, cross hole, triangular hole, oblong hole, long waist hole, plum blossom hole, fish scale hole, pattern hole, pentagonal star hole, no regular holes, drum holes, etc.

There are specifications about punching press in the sheet for reference:

Model DZ31G-80 DZ31G-125 DZ31G-160 DZ31G-200
Nominal Force(KN) 800 1250 1600 2000
Nominal Stroke(MM) 2 3 3 3
Slide Stroke(MM) 30 30 30 30
SPM(MIN) 160-280 160-240 160-220 150-200
Max Die Height(MM) 360 400 400 420
Die Height Adjustment(MM) 50 50 50 50
Boster(F.B*L.R*T)(MM) 550*980 600*1180 700*1380 800*1550
Boster Opening(F.B*L.R)(MM) 500*950 550*1050 600*1250 650*1450
Between Columns(MM) 1000 1200 1400 1600
Motor Power(KW) 11 18.5 22 30
Air Pressure(MM) 0.5 0.5 0.5 0.5
Net Weight(KG) 9000 11500 15000 19000

1250mm Perforated Metal Machine 220mesh/min 380V Simple Operation
