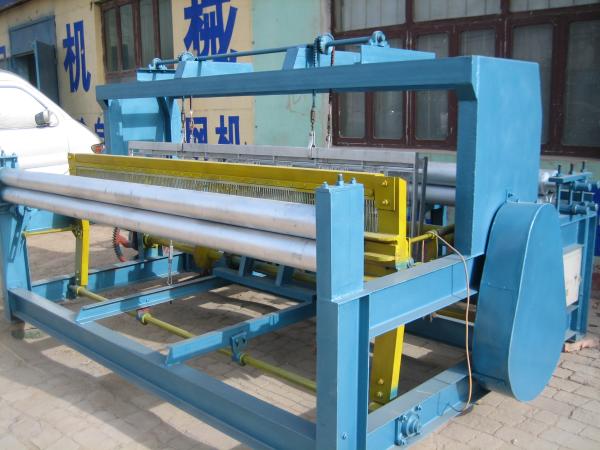

5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
Specifications
Brand Name :
DIAOZHUO
Model Number :
DZ1300 DZ1600 DZ2000
Certification :
CE ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
1SET
Price :
variable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
2-3SET ONE MONTH
Delivery Time :
20-30 WORING DAYS
Packaging Details :
woodencase and plastic bags
Type :
Could Produte Roll and Panel
Width :
1m, 2m, 3m, 4m
Specification :
5-12mm, 2000mm width
HS Code :
8463300000
Weave Method :
Flat-Topped Curved
Weight :
1800kg
Description

crimped wire mesh machine

Crimped wire mesh machine can be divided into three types: semi-automatic crimped wire mesh
machine, automatic crimped wire mesh machine, hydraulic Crimped Wire Mesh Machine
The new crimped mesh machine covers the type of old loom, the function is more than maturity, the standardization eagerly anticipates the wire mesh machinery new tidal current, its perfection manifests below:
1, the designation of outside can compare favorably with 130 shuttles loom, which is made in Japan
2, reform the spare part not be able to use in common, brings the trouble to user
3, create four kinds of weaving, so the crimped mesh machine are used more widely
4, strong, weave precisely
5, the times of shuttle belt is improving greatly (65 times/min)

5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening

Supply new Semi-automatic crimped wire mesh machine for mine sieve mesh

The series of Semi-automatic crimped wire mesh machine weave crimped wire net of

steel, iron, lead and stainless steel wire with big diameter. The net is weaved by the

machine after the thick wire is formed to crimp by the rolling machine. Breadth of thnet is 0.9-2.5m and the diameter of the wire is 2.0-8.0mm. The size of the mesh is2×2mm-80×80mm. The structure of the machine is compactness and rational.

It performs satisfactorily and runs smoothly.
Breadth of the net produced by each gauge of the machine can be adjusted in a certain extent.

Hydraulic crimped wire machine is powered by high power rate electric machine and hydraulically controlled in knitting, changing headless, matting. It has the characteristics of stable performance, low noise, high knitting efficiency and sooth knitting mesh. This machine is mainly used for knitting big diameter mine sieving mesh with 4.0mm-12mm diameter and 2.0m width. Its products are mainly used in big mines, and coal fields to sieve and filter.

Main parameter of Semi-automatic Crimped Wire Mesh Machine:
Weaving width:0.9-2.5m
Wire diameter:6-12mm
Mesh:3*3-80*80mm
Quality certification:ISO:9001:2008

Main parameter of Hydraulic crimping wire mesh machine:

type Wire dia
(mmm)		 Weaving
Width
(m)		 weight Size
(LXWxH) m		 Motor details Wire feed speed in MM
Driving power
KW		 Power
V
hydraulic crimped wire mesh machine 4.0-12 2.0 2 tons 3.5*3*1.8 5.5 380 15-20
Straightening and cutting machine 1.4-12 800kg 1.6*1*1.2 5.5*1 set
2.2*1 set		 380v/
220v		 28
Flow rate Hydraucylinder(mm) Weight
(kg)		 size
LxWxH
(MM)
Hydraulic press 40 pump 100mm*1
80mm*1		 400 700*500*800

5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening

Type1: full automatic crimped wire mesh machine
Technical parameter:
Wire diameter: 0.2-2.0mm
Width: 1.0m
Mesh size: 0.8-15mm
Outside size:1500*1800*1300mm
Weight:2.8Ton
Spare parts:wire crimping machine,bobbin(30sets),uncoiler for roller,one mold

Type2: full automatic crimped wire mesh machine
Technical parameter:
Wire diameter: 2.0-6.0mm
Width: 1.0--2.5m
Mesh size: 4--150mm
Outside size:3000*2200*1500mm
Weight:3.8Ton
Spare parts:wire crimping machine,bobbin(30sets),control system,one mold,cutter

Type3:semi-automatic crimped wire mesh machine
Technical parameter:
Wire diameter: 2.0-8.0mm
Width: 1.0--2.5m
Mesh size: 2*2--200*200mm
Outside size:3500*2100*1300mm
Weight:2.8Ton
Spare parts:wire crimped wire machine,cutter,one mold

Type4: hydraulic crimped wire mesh machine
Technical parameter:
Wire diameter: 7--16mm
Width: 1.0--2.5m
Mesh size: according mold
Outside size:3200*2400*1300mm
Weight:2.8Ton
Spare parts:wire crimping machine,cutter,one mold,control system

If you need ,pls contact me !!!!
