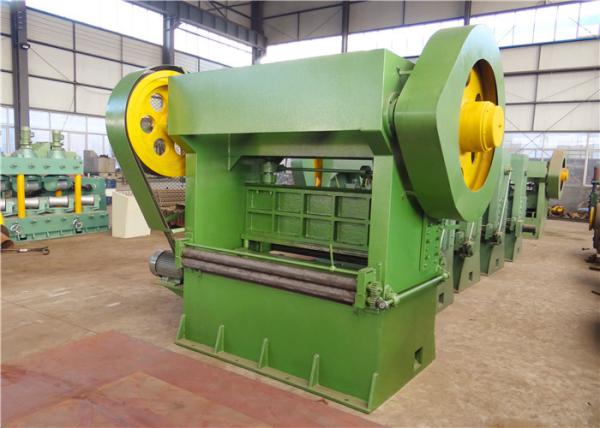

0.1mm Perforated Metal Sheet Machine , Sheet Metal Punch Press Machine
0.1mm Perforated Metal Sheet Machine , Sheet Metal Punch Press Machine
0.1mm Perforated Metal Sheet Machine , Sheet Metal Punch Press Machine
0.1mm Perforated Metal Sheet Machine , Sheet Metal Punch Press Machine
0.1mm Perforated Metal Sheet Machine , Sheet Metal Punch Press Machine
0.1mm Perforated Metal Sheet Machine , Sheet Metal Punch Press Machine
Specifications
Brand Name :
DIAOZHUO
Model Number :
DZ-CKW250 DZ-CKW2000 DZ-CKW1500
Certification :
CE ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
1set
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
20-30 days
Packaging Details :
with water-proof film covered or at customer's request
Price :
variable
engineer :
available to service machinery overseas
speed :
220mesh/min
material :
steel cast
the precision of hole-punching :
0.1mm
Description

PLC control perforated metal mesh punching press sheet machine

Packaging Details

1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire rope to make it stable.
3. It needs one 40 OT' container for shipment.

The raw material of sheet including steel plate, iron plate, stainless steel plate, copper plate, aluminum plate, galvanized plate etc.

It can make round hole, long round hole, square hole, triangle hole, diamond hole, hexagonal hole, crossed hole etc.

Specifications of Punching Press:

Model DZ31G-80 DZ31G-125 DZ31G-160 DZ31G-200
Nominal Force(KN) 800 1250 1600 2000
Nominal Stroke(MM) 2 3 3 3
Slide Stroke(MM) 30 30 30 30
SPM(MIN) 160-280 160-240 160-220 150-200
Max Die Height(MM) 360 400 400 420
Die Height Adjustment(MM) 50 50 50 50
Boster(F.B*L.R*T)(MM) 550*980 600*1180 700*1380 800*1550
Boster Opening(F.B*L.R)(MM) 500*950 550*1050 600*1250 650*1450
Between Columns(MM) 1000 1200 1400 1600
Motor Power(KW) 11 18.5 22 30
Air Pressure(MM) 0.5 0.5 0.5 0.5
Net Weight(KG) 9000 11500 15000 19000
