Specifications
Brand Name :
DIAOZHUO
Certification :
CE ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
1 SET
Price :
variable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
6-8 sets per month
Delivery Time :
20-30 work days
Packaging Details :
woodencase and plastic bags
Machine Type :
Loop tie wire machine
Condition :
New
speed :
60-90pieces/minute
voltage :
380V / 50HZ
wire diameter :
1mm-2mm
length :
4 inch-20 inch
weight :
330kg
size :
1400mm*800mm*1300mm
Description

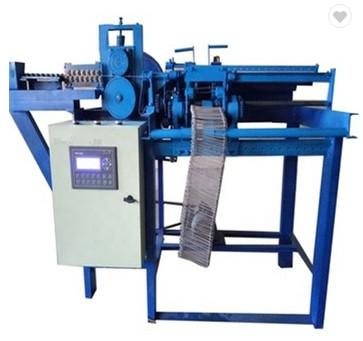

loop tie wire machine

1.The products are mainly used in construction industry
2.The double loop tie wire machine is composed of a wire rack and a main engine
3.The main raw materials are cold galvanizing wire galvanized wire black wire and plastic wire.

Type

KSJ4-12

KSJ4-20

wire diameter

1mm-2mm

1mm-2mm

speed

60-90pieces/minute

60-90pieces/minute

voltage

380V/50HZ

380V/50HZ

power

0.75kw

0.75kw

length

4inch-12inch

4 inch-20 inch

size

1400mm*800mm*1300mm

1400mm*800mm*1300mm

weight

330kg

330kg

4 inch 20 inch Loop Tie Wire Machine 1mm 2mm 380V 50HZ

Double loop tie wire machine:

The machine can produce black annealed wire, galvanized wire PVC wire and so on.

Such as:PVC loop tie wire to create a strong, easy-to-use twist wire tie. PVC coating will not crack, chip or scratch off when tying.


1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is nude packing or plastic packing.
3.Also can do as customer's request.

4 inch 20 inch Loop Tie Wire Machine 1mm 2mm 380V 50HZ
4 inch 20 inch Loop Tie Wire Machine 1mm 2mm 380V 50HZ
Our service:
1.If the buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination pory
2.Maintenance period:One year for whole machine except vulnerable parts
3.The number of technical persons :one technician per machine
4.The fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees
5.During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.

Rate Of Working

60-70root/min

Size(LWH)

1700mm*1000mm*1500mm

Wire Width

1.0-1.8mm

Material

Black wire, Galvanized Wire,PVC Wire

Power

0.75kw

Speed

60-80pieces/h

Weight

300-500kg

Vatage

According to your


Q: Are you a manufacturer?
A: Yes,we have specialized in this field for about 10 years experience.


Q: Could you provide sample ?
A: Yes,we can provide sample in half A4 size together with our catalogue.
But the courier charge will on your side.
We'll send back the courier charge if you make an order.


Q: What information should I provide,if I want a lowest quotation?
A: The specification of wire mesh.such as material,mesh number, wire diameter,hole size,width,quantity,finishing.


Q: How is your delivery time?
A: We always prepae enough stock material for your urgent requirement. the delivery time is 7days for all the stock material.
We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.


Q: How do you ship the finished wire mesh?
Usually by sea.


Q: What is the payment?
We usually use the T/T,L/C,D/P,Western Union.
