Specifications
1.Single wire galvanizing line with best quality
2.Diameter Of Wire: 1.0~4.0mm
3.For Low Carbon Annealed Wire
4.Have Little Pollution
5.High Efficiency

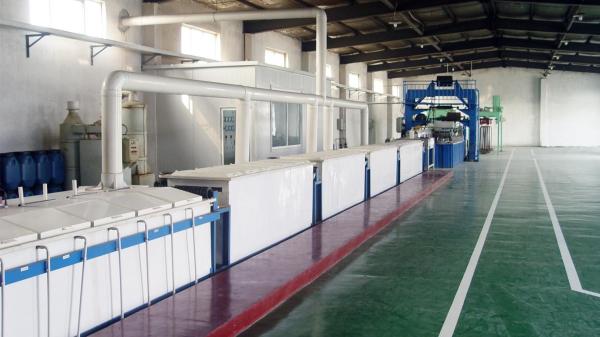

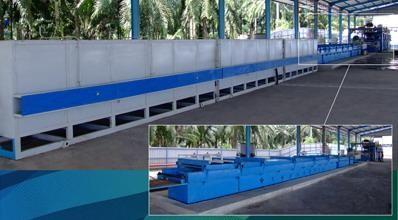

The Iron Wire Electro Galvanizing Production Line (electro galvanized wire production line) which is used for zinc coating on black iron wire or black annealing wire. The zinc coating process is electro galvanized. We adopt of advanced equipment, provide galvanized formula, the finished electro galvanized wire surface is shinning and dezincification.

Product Description
Main technical parameter of GXD---Zn-A
1. The production process
Upper head wire pay-off→ Tension →Electrolytic acid pickling →Water washing →Bright zinc coating →Water washing →
Hot water washing →Baking→ Wire take-up.

2. Introduction of chief parts
A. Electrolytic acid pickling part: PP plats with thickness 10-15mm is use for tank body making, whole body is made in close type, acid resistant stainless steel made roller φ300mm, magnetic pump is used for liquid circulation, rectifier 500A/12V use for electrolytic acid pickling.
B. Galvanizing part: PP plats with thickness 10-15mm is use for tank body making, whole body is made in close type, acid resistant stainless steel made roller φ400mm, acid resistant pump is used for liquid circulation, rectifier 1000A/12V is used for zinc coating, anode is made of 4*45mm Ti plate. Towing motor is 5.5KW.
C. Baking part: Short circuit heating and voltage regulator for temperature adjusting are adopted, temperature control is very easy and have little energy consumption.

D. Wire take-up: φ550mm spools for wire take-up, torque motor 40N·m offer stable tension force control.
E. Total length of whole machine: 12m.
F. Production speed: 100-120m/min, speed can be adjusted by frequency conversion motor.
3. Advantage of this production line
A. The total length of production line is very short, no need large space of workshopB. Needed little zinc block and chemical raw material, which can reduce needed circulating funds.
C. The zinc coating quality of steel wire is also easy for control.
D. Have little pollution, high efficiency, and little investment.
E. One machine only need one operator.

Packaging & Shipping

We can pack it by pallet, or according to the customers' specific requirements.

Our Services

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
