DZ-78 White color Galv Low Carbon Steel Wire Galvanizing Line Zinc Coating Machine Zinc Plating Machine Gi Wire Machine

Company

1. Company location: Anping city; FOB port: Tianjin

2. ISO9001: 2008

3. Participate actively in international competition

4. Experience: more than 20 years

5. Professional technology discussion and warm customer service

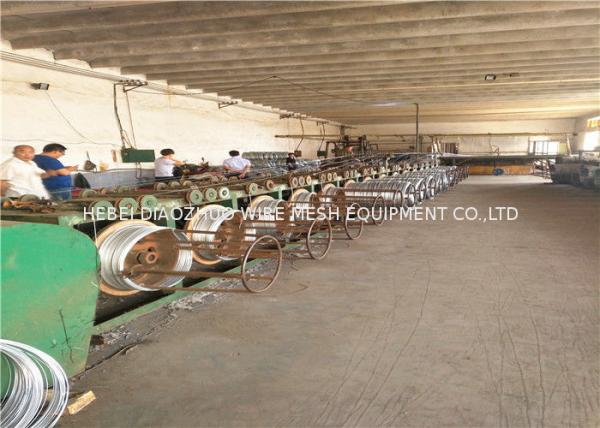

Main production process: Pay-off -->Hot water washing-->Alkali washing--> Hot water washing-->Fume-free (HCl) pickling bath-->2-step water washing-->Flux bath-->Drying-->Hot-dip galvanizing bath-->Take-up

Specifications:

SR Item Specification

1 Wire number 12--60

2 Diameter 0.8mm--15.0mm

3 DV value 60--200mm*m/min (according to the customer's requirement)

4 Capacity according to the customer's requirement

5 Fuel Natural gas,LPG, electricity

6 Heating method Immersed heating,top heating,side heating

7 Zinc thickness 50--400g/m2

8 Wiping method Nitrogen wiping, pad wiping, charcoal wiping

• Use gas heating(inside, outside or surface) or electricity inside heating method. Uniform Zinc temperature,

accurate control, high production efficiency and good product quality.

• For gas inside heating, nozzle with one-end immersed provides heat, air self exchanges heat with high

efficiency, to achieve high heating efficiency, can maximum reduce zinc oxidation and burning loss.

• Nitrogen wiping system, suitable for middle or high wire running speed. Through adjusting the Nitrogen flow,pressure and wire running speed can precisely control the zinc thickness

• Zinc bath material: Metal or ceramic bath, high heating efficiency, anti-zinc corrosion, little zinc slag and
achieve long lifetime of bath
• Heat-resistant ceramic pressing roller in zinc bath, gets the advantages of heat-resistant, wearing-resistant,
no zinc slag reaction and long lifetime.
• For Gas and electrical control, we use international famous brand, control system is safe and reliable.
Humanized design and safe function design, to achieve convenient site operation and maintenance.
• Can reach high DV
• Low ordinary maintenance cost
• Suitable for Steel wire galvanizing and Zn-Al galvanizing.

Specifications
1.Single wire galvanizing line with best quality
2.Diameter Of Wire: 1.0~4.0mm
3.For Low Carbon Annealed Wire
4.Have Little Pollution
5.High Efficiency

I. The production process
Upper head wire pay-off→ Tension →Electrolytic acid pickling →Water washing →Bright zinc coating →Water washing → Hot water washing →Baking→ Wire take-up.

II. Introduction of chief parts
A. Electrolytic acid pickling part: PP plats with thickness 10-15mm is use for tank body making, whole body is made in close type, acid resistant stainless steel made roller φ300mm, magnetic pump is used for liquid circulation, rectifier 500A/12V use for electrolytic acid pickling.
B. Galvanizing part: PP plats with thickness 10-15mm is use for tank body making, whole body is made in close type, acid resistant stainless steel made roller φ400mm, acid resistant pump is used for liquid circulation, rectifier 1000A/12V is used for zinc coating, anode is made of 4*45mm Ti plate. Towing motor is 5.5KW.
C. Baking part: Short circuit heating and voltage regulator for temperature adjusting are adopted, temperature control is very easy and have little energy consumption.
D. Wire take-up: φ550mm spools for wire take-up, torque motor 40N·m offer stable tension force control.
E. Total length of whole machine: 12m.
F. Production speed: 100-120m/min, speed can be adjusted by frequency conversion motor.

III. Advantage of this production line
A. The total length of production line is very short, no need large space of workshop
B. Needed little zinc block and chemical raw material, which can reduce needed circulating funds.
C. The zinc coating quality of steel wire is also easy for control.
D. Have little pollution, high efficiency, and little investment.
E. One machine only need one operator.

V. Packaging & Shipping
We can pack it by pallet, or according to the customers' specific requirements.

VI. Our Services
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
1. Correct operating mode
2. Correct maintenance way
3. Remove simple problem
