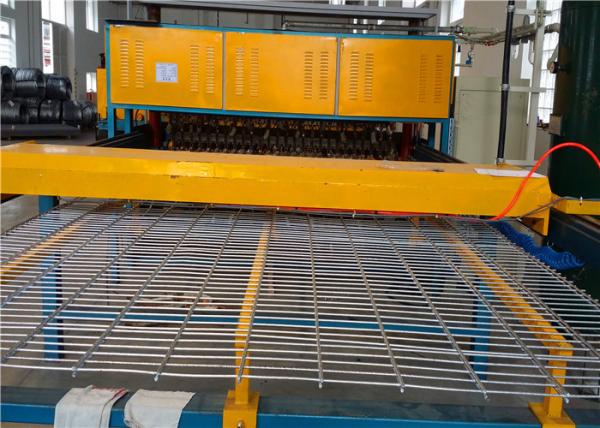

50*200mm Reinforcing Mesh Welding Machine 2.5m For Garden
50*200mm Reinforcing Mesh Welding Machine 2.5m For Garden
50*200mm Reinforcing Mesh Welding Machine 2.5m For Garden
50*200mm Reinforcing Mesh Welding Machine 2.5m For Garden
50*200mm Reinforcing Mesh Welding Machine 2.5m For Garden
50*200mm Reinforcing Mesh Welding Machine 2.5m For Garden
Specifications
Brand Name :
DIAOZHUO
Model Number :
DZ2000 DZ2500 DZ3000
Certification :
CE ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
1set
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10 sets per month
Delivery Time :
20-30 days
Packaging Details :
woodencase and plastic bags
Price :
variable
material :
steel welding
control :
PLC automatic
line wire feeding :
pre-cut
cross wire feeding :
pre-cut
product name :
welding fence machine
feeding :
automatic
Description

Three wire welded wire mesh machine fully automatic use for garden

parameters of three wires fence mesh clamp welding machine

Item Parameters
Wire diameter 6+5+6mm/8+6+8mm
Mesh width 1-2.5m
Mesh length 1-3m
Mesh size 50*200mm
Welding number 16 (customized)
Welding time 30-50times/min
Voltage 380V-440V 50HZ
Welding transformer 160KVA*8
Overall dimension 14000*3200*2100mm
Weigth 6.5 T

machine working step:

Feeding system: the weft and warp wire both are pre-cut wires. The worker put wires into store holder, then the store holder put the wires into weld dies automatically. It is ready to welding after two weft wires and one warp wire were put.

Welding system: Both the cent-control and welding time are controlled by PLC program system. Upper and lower electrode is controled by transformer to weld up and down. This welding is more accurate and firm.

Pulling system: the mesh pulling system is control by servo motor, which makes the mesh size more standard and accurate.

Control system: control cabinet adopt touch screen operate system, which dispaly in both

Chinese and English, so the operation is very simple.

machine advantage:

1. The line wire and the weft wire are pre-straightened and pre-cut.

2. The longitude wires can be adjustable and cross wire distance can be adjustable according to input the data what you want. The greatest advantage is that you can adjust the distance weft wire at random on the same piece of wire mesh sheet.

3. The finished product fence panel is smooth; the error of opposite angle line is small.

50*200mm Reinforcing Mesh Welding Machine 2.5m For Garden
