Sturdy Fencing Wire Manufacturing Machine , Separate Control Wire Mesh Equipment
Sturdy Fencing Wire Manufacturing Machine , Separate Control Wire Mesh Equipment
Sturdy Fencing Wire Manufacturing Machine , Separate Control Wire Mesh Equipment
Sturdy Fencing Wire Manufacturing Machine , Separate Control Wire Mesh Equipment
Sturdy Fencing Wire Manufacturing Machine , Separate Control Wire Mesh Equipment
Sturdy Fencing Wire Manufacturing Machine , Separate Control Wire Mesh Equipment
Specifications
Brand Name :
DIAOZHUO
Model Number :
DZ1200 DZ1500 Z2000 DZ2500
Certification :
CE ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
1set
Payment Terms :
L/C, D/P, T/T
Supply Ability :
30 sets per month
Delivery Time :
20-30 days
Packaging Details :
woodencase and plastic bags
Price :
variable
material :
steel welding
control :
PLC fully automatic
wire feed :
from coils
finial products :
in rolls
Description

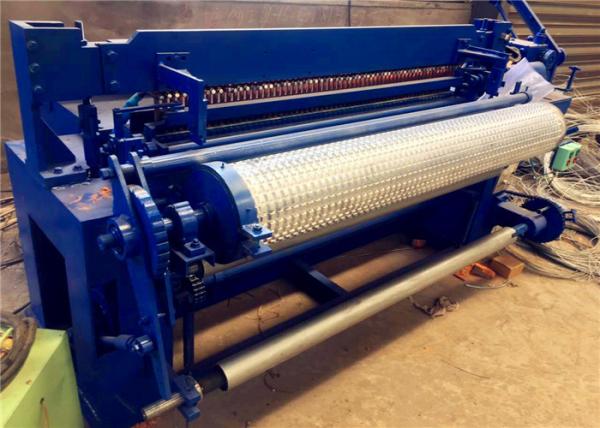

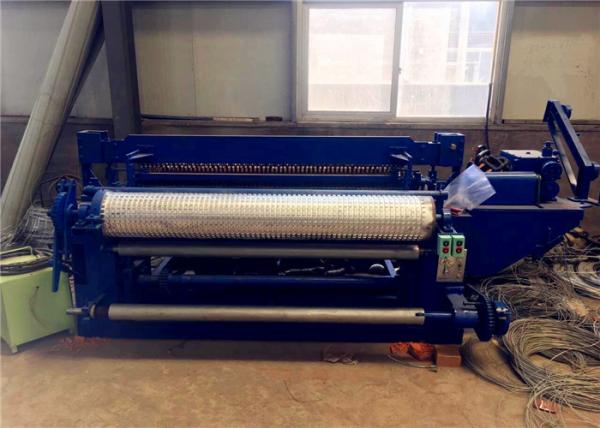

Automatic metal wire mesh roll welding machine China supplier

machine details:

Model DNW-1 DNW-2 DNW-3
Wire diameter 0.4-0.65mm 0.65-1.2/1.8mm 1.0-2.2mm/2.5mm
Aperture/pitch 1/4”-1/2” 1/2”-4” 1”-4”
Mesh width 3 feet, 4feet 4 feet, 5 feet 4 feet, 5 feet, 6 feet, 7feet
Motor 2.2kw 2.2kw 2.2kw;4.0kw
Welding speed Max.75 rows/min Max.120 rows/min Max.80 rows/min
Measurement 2.3*1.3*1.4m 2.5/2.9*1.3*1.4m 2.5/2.9*1.3*1.4m
Weight 1.5T 2T, 2.5T 2T, 2.5T, 3T, 3.5T
Transformers 50kva*3 60kva*4;60kva*5 60kva*4/5/6/7

1. Both of the longitude wire and cross wire are fed from wire coils automatically.
2. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.
3. The welding transformers have 8 degrees and can be adjusted for different wire diameters.
4. The mesh roll length can be set by counter switch on the control panel.
5. The welding time and welding current can be adjusted on the control panel to adjust the welding degree.

6. Separate control technology, make welding transformers working separately to reduce needed capacity.
7. Different position of button and speed meter, not easily broken like before, easier to operate.
8. Square steel bottom instead of angle iron bottom. 1.5mm steel plate instead of 0.2-0.3mm steel plate.

Sturdy Fencing Wire Manufacturing Machine , Separate Control Wire Mesh Equipment
