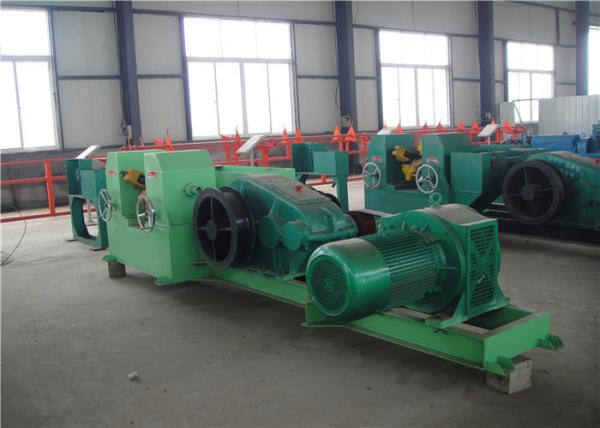

4mm Outlet Wire Cold Rolling Machine / Ribbed Wire Making Machine Max 150 M/Min
4mm Outlet Wire Cold Rolling Machine / Ribbed Wire Making Machine Max 150 M/Min
4mm Outlet Wire Cold Rolling Machine / Ribbed Wire Making Machine Max 150 M/Min
4mm Outlet Wire Cold Rolling Machine / Ribbed Wire Making Machine Max 150 M/Min
4mm Outlet Wire Cold Rolling Machine / Ribbed Wire Making Machine Max 150 M/Min
4mm Outlet Wire Cold Rolling Machine / Ribbed Wire Making Machine Max 150 M/Min
Specifications
Brand Name :
DIAOZHUO
Model Number :
DZ-YL14 DZ-YL-11 DZ-YL-4
Certification :
CE ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
1set
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10sets per month
Delivery Time :
30-40days
Packaging Details :
with water-proof film covered or at customer's request
Price :
variable
product name :
ribbed wire making machine
engineer :
available to service machinery overseas
services :
door to door
wire diameter :
12 mm
outlet wire :
4 mm
speed :
max 150 m/min
Description

Screw wire crimped cold rolling wire machine ribbed wire making machine

(1) Introduction of Rebar/Bar Ribbed Steel Cold Rolling Machine

1 Derusting Machine

The machine is close type, there have three rotary wheels inside, we could adjust it up and down, it is easier for the raw materials installation, we could put the wire rod inside, then adjust the wheels.

2. Rolling mill

The rollers’ angle should be 120°, at the same center, first rolling mill is mainly for reducing the diameter, second set of rolling mill is for making the rebar,

3. Plate Machine

The machine is with electromagnetic motor, it offer the power for the whole line, the motor speed could be adjusting, it will change the rolling speed.

4. Stress-Relieving Machine

This machine is mainly for reducing the machine hardness.

5. The Wire Drawing Machine matches the moment type motor, the mainly spare parts is the wire wheel

6. Straight Machine and Cutter

(2) Parameters of Rebar/Bar Ribbed Steel Cold Rolling Machine

Item

Small type

Medium type

Large type

Unit

Raw matrial φ6.5-10 φ6.5-12 Φ10-16 mm
Roller Diameter Φ210 Φ228 Φ285 mm
Power 55-75 75-110 130-160 KW
Center distance between gears 650 650 700 mm
Rolling speed 1.5-2 1.5-3 2-3 m/s
Cutting length 1.5-12 1.5-12 1.5-12 m
Motor of flying shear 5.5 7.5 15 KW
Product specification Φ5-8 Φ5-10 Φ8-14 mm
Output 20-35 25-50 60-80 T/Shift
