Automatic Barbed Wire Making Machine , Iron Wire Making Machine 3 Inch - 6 Inch Twist
Automatic Barbed Wire Making Machine , Iron Wire Making Machine 3 Inch - 6 Inch Twist
Automatic Barbed Wire Making Machine , Iron Wire Making Machine 3 Inch - 6 Inch Twist
Automatic Barbed Wire Making Machine , Iron Wire Making Machine 3 Inch - 6 Inch Twist
Specifications
Brand Name :
DIAOZHUO
Model Number :
DZ-CSA DZ-SCB DA-CSC
Certification :
CE ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
1set
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
20-30 days
Packaging Details :
woodencase and plastic bags
Price :
variable
engineer :
available to service machinery overseas
twist :
double, single
material :
iron wire, galvanized wire
barbed space :
3",4",5" or 4",5",6"
wire diameter :
1.6-2.8mm
capcity :
60-70kg/hour
Description

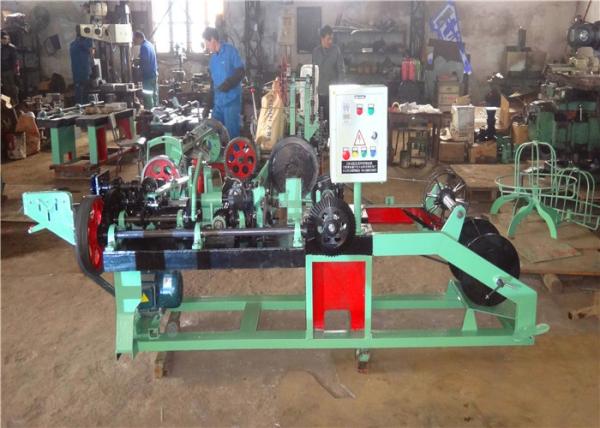

High Speed Automatic CS-C 3inch-6inch Twist Barbed Wire Making Machine

barbed wire making machine

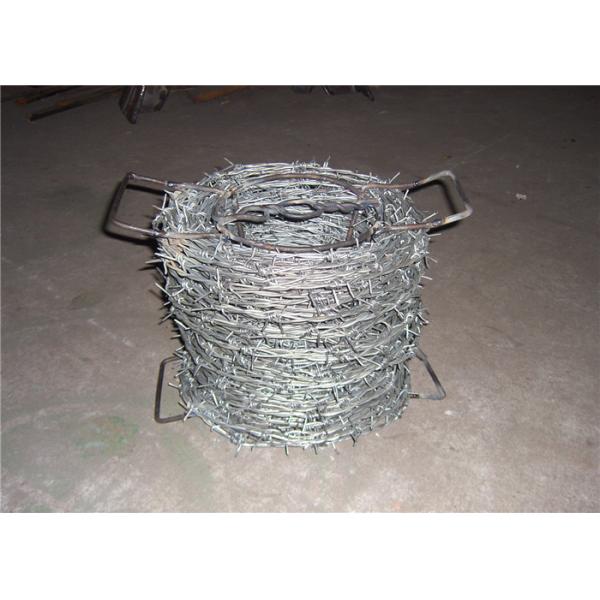

Best price barbed wire machine can produce barbed wire which is extensively used in national defenses, military, railway, agriculture, animal husbandry and other industries.

Suitable material is galvanized wire.

Technical parameter of barbed wire making machine

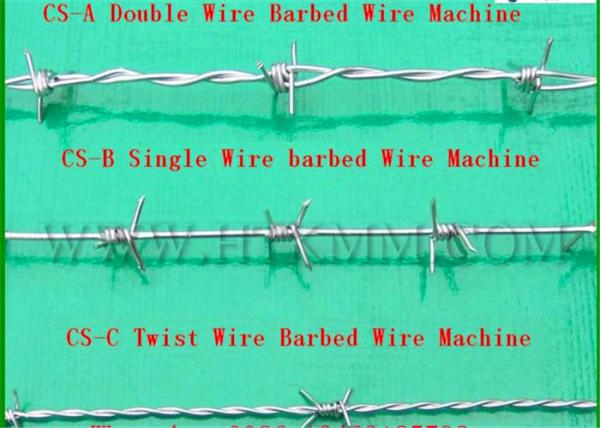

Model CS-A CS-B CS-C
Motor power 2.2KW 2.2KW 2.2KW
Main drive shaft speed 402 r/min 355 r/min 355 r/min
Wire diameter 2.2-3mm 2.2-3mm 1.6-2.8mm
Barb wire diameter 1.8-2.2mm 1.8-2.2mm 1.6-2.2mm
Barbed space 76mm/ 102mm/ 127mm 102mm/ 127mm 102mm/ 127mm
Twisted number 3-5 7
Production 70 kg/h 40 kg/h 40 kg/h
Weight 1200kg 1000kg 1000kg
Dimension 1950×950×1300 3100 ×1000 ×1150mm 3100 ×1000 ×1150mm

1. All the parts of machine are processed by our own factory; no parts were send to outside to process, so the quality can be ensured.

2. We can provide 36 months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost price if customer need.
