Specifications
Brand Name :
DIAOZHUO
Model Number :
DZ1300 DZ1600 DZ2000
Certification :
CE ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
1SET
Price :
variable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
2-3SET ONE MONTH
Delivery Time :
20-30 WORING DAYS
Packaging Details :
woodencase and plastic bags
Type :
Could Produte Roll and Panel
Width :
2m, 3m, 4m
Specification :
Q235
HS Code :
7308900000
Weave Method :
Flat-Topped Curved
Weight :
1800kg
Description

2-4m Width Roll And Panel Crimped Wire Mesh Machine DZ1300 DZ1600 DZ2000

Supply new Semi-automatic crimped wire mesh machine for mine sieve mesh

The series of Semi-automatic crimped wire mesh machine weave crimped wire net of

steel, iron, lead and stainless steel wire with big diameter. The net is weaved by the

machine after the thick wire is formed to crimp by the rolling machine. Breadth of the

net is 0.9-2.5m and the diameter of the wire is 2.0-8.0mm. The size of the mesh is

2×2mm-80×80mm. The structure of the machine is compactness and rational.

It performs satisfactorily and runs smoothly.
Breadth of the net produced by each gauge of the machine can be adjusted in a certain extent.

type Wire dia
(mmm)		 Weaving
Width
(m)		 weight Size
(LXWxH) m		 Motor details Wire feed speed in MM
Driving power
KW		 Power
V
hydraulic crimped wire mesh machine 4.0-12 2.0 2 tons 3.5*3*1.8 5.5 380 15-20
Straightening and cutting machine 1.4-12 800kg 1.6*1*1.2 5.5*1 set
2.2*1 set		 380v/
220v		 28
Flow rate Hydraucylinder(mm) Weight
(kg)		 size
LxWxH
(MM)
Hydraulic press 40 pump 100mm*1
80mm*1		 400 700*500*800

2-4m Width Roll And Panel Crimped Wire Mesh Machine DZ1300 DZ1600 DZ20002-4m Width Roll And Panel Crimped Wire Mesh Machine DZ1300 DZ1600 DZ2000

* Fully Automatic Crimped Wire Mesh Weaving Machine Factory

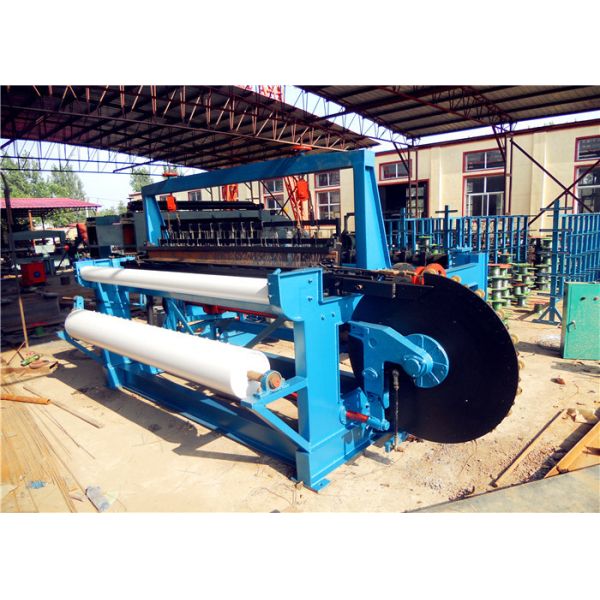

The series of automatic crimped wire mesh machine can finish the work from making the wire crimp
to formation of the net automatically. Breadth of the net is 0.9-2.5m and the diameter of the wire is 0.4-
2.2mm. The size of the mesh is 1×1-20×20mm2. The weaving speed can reach 53times shuttle
/minute.The properties of fast, easy to operate and good performance of the machine are fond by the
users.

Detail:

1. Full-automatically crimped wire mesh weaving machine

Mesh width 2m (you could choice 2.5m, 3m)
Mesh opening 0.3-20mm
Wire diameter 0.8mm-1.8mm
Dimension 2750*1950*1400mm
Weight 1.7 Ton

2. Semi automatic crimped wire mesh machine

Mesh width 2.5m (you could choice 2.5m, 3m)
Mesh opening 2-50mm
Wire diameter 2-6m
Capacity 5 rods/min
Dimension 2.9*2.05*1.7 M
Shipping one 20 GP (FCL)


3. Hydraulic pressure Crimped wire mesh machine

Mesh width 2m (you could choice 2.5m, 3m)
Mesh opening 10-100mm
Wire diameter 5-12mm
Capacity 10 rods/min
Dimension 2.8*2.1*1.5M
Weight 1.3 Ton
Shipping one 20 feet container

2-4m Width Roll And Panel Crimped Wire Mesh Machine DZ1300 DZ1600 DZ20002-4m Width Roll And Panel Crimped Wire Mesh Machine DZ1300 DZ1600 DZ2000

Type1: full automatic crimped wire mesh machine
Technical parameter:
Wire diameter: 0.2-2.0mm
Width: 1.0m
Mesh size: 0.8-15mm
Outside size:1500*1800*1300mm
Weight:2.8Ton
Spare parts:wire crimping machine,bobbin(30sets),uncoiler for roller,one mold

:
Wire diameter: 2.0-6.0mm
Width: 1.0--2.5m
Mesh size: 4--150mm
Outside size:3000*2200*1500mm
Weight:3.8Ton
Spare parts:wire crimping machine,bobbin(30sets),control system,one mold,cutter

Type3:semi-automatic crimped wire mesh machine
Technical parameter:
Wire diameter: 2.0-8.0mm
Width: 1.0--2.5m
Mesh size: 2*2--200*200mm
Outside size:3500*2100*1300mm
Weight:2.8Ton
Spare parts:wire crimped wire machine,cutter,one mold

Type4: hydraulic crimped wire mesh machine
Technical parameter:
Wire diameter: 7--16mm
Width: 1.0--2.5m
Mesh size: according mold
Outside size:3200*2400*1300mm
Weight:2.8Ton
Spare parts:wire crimping machine,cutter,one mold,control system

If you need ,pls contact me !!!!
