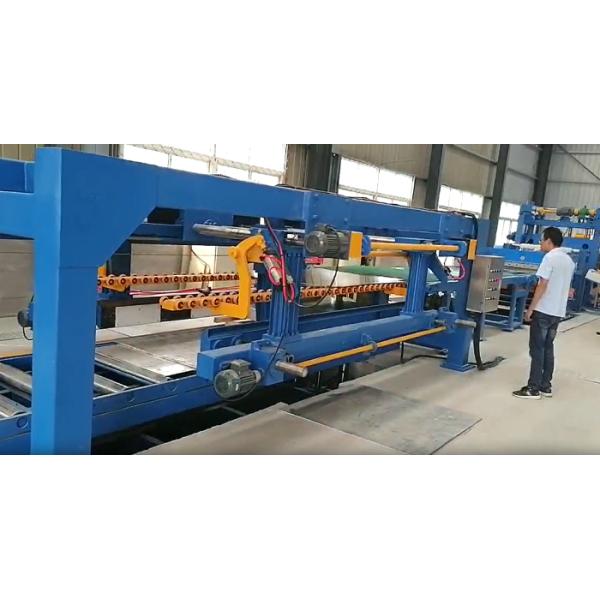

8*1250mm Strip Cut To Length Line Hydraulic Flying Shear Sheet Metal Cut To Length Machine
8*1250mm Strip Cut To Length Line Hydraulic Flying Shear Sheet Metal Cut To Length Machine
8*1250mm Strip Cut To Length Line Hydraulic Flying Shear Sheet Metal Cut To Length Machine
8*1250mm Strip Cut To Length Line Hydraulic Flying Shear Sheet Metal Cut To Length Machine
Specifications
Model Number :
FX-(2-8)*1250mm
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
depending on the actual technical proposal
Payment Terms :
T/T, L/C
Delivery Time :
30-90 days
Material Thickness :
2-8mm
Coil Width :
300-1250mm
Cutting Accuracy :
≤±0.5mm/m²
Decoiler Capacity :
30T
Leveling roller :
Φ180
Stacking Method :
Pneumatic Stacking
Control System :
PLC Control
Cutting Speed :
0-30m/min., adjustable
Description

Product Description:

The FX-(2-8)*1250mm Cut-To-Length (CTL) Line is a type of sheet metal processing equipment designed to uncoil, level, and cut metal coils into precise lengths and stack them in an organized manner. The 1250mm Strip Width CTL Line is specifically designed to handle sheet metal coils up to 1250mm in width, accommodating various materials such as carbon steel, stainless steel, aluminum, and other metals.

8*1250mm Strip Cut To Length Line Hydraulic Flying Shear Sheet Metal Cut To Length Machine

Features and Advantages:

Key Features:

  1. Maximum Strip Width: 1250mm
  2. Material Thickness Range: (Can vary depending on the specific configuration, typically 0.3mm - 6mm)
  3. Line Speed: High-speed production with precise length control.
  4. Cutting Method: Hydraulic Flying Shear, which ensures continuous feeding of the strip while cutting, improving efficiency and reducing downtime.
  5. Coil Weight Capacity: Heavy-duty uncoiler for large coil weights, usually ranging from 15 to 25 tons.
  6. Leveling System: Equipped with a multi-roll leveling machine to ensure the flatness and smoothness of the processed sheets.
  7. Stacking Mechanism: Automatic stacking of cut sheets for easy handling and transport.

Advantages:

  • High Efficiency: The hydraulic flying shear allows the line to maintain high-speed production without stopping the process for cutting, significantly increasing the output rate.
  • Precision Cutting: Advanced servo drive systems and PLC control ensure that each sheet is cut to exact specifications.
  • Versatility: Capable of handling a wide range of materials and thicknesses, suitable for various industries such as automotive, appliance manufacturing, and construction.
  • Automation: The system is highly automated, reducing labor requirements and minimizing human error.

Technical Parameters:

Model FX 2-8mm*1250mm
Thickness Range 2-8mm
Width Range 300-1250mm
Cutting Length 500-6000mm
Cutting Precision ≤±0.5mm/m2
Leveling Precision ±1mm/㎡
Material of leveling roller 40Cr, HRC55-58
Roller Numbers 7
Roller Diameter Ф180
Coil ID Ф610&760mm
Linear Speed 0~30m/min., adjustable

Note: The above parameters are for reference only, customized is accepted.

Process Flow:

The following process flow of FX 2-8mm*1250mm middle thick plate cut to length machine line is for reference only. It will be designed as per customer's demands and requirements.
Material preparation platform —— Feeding coil car —— Decoiler —— Head leading, head pressing, shovel head —— Alignment—— Leveling machine —— Accumulator —— Alignment —— Fixed length flying saw —— Shearing machine —— Conveying table —— Pneumatic discharge rack —— Hydraulic lifting platform —— Unloading worktable

8*1250mm Strip Cut To Length Line Hydraulic Flying Shear Sheet Metal Cut To Length Machine

Applications:

The FX 2-8mm*1250mm middle thick sheet cut to length line finds application in various industries that require precise cutting and processing of medium thickness metal sheets. Here are some of the industries where the FX 2-8mm*1250mm middle thick sheet cut to length line is commonly used:

Automotive Industry: automobile parts and components, such as body panels, fenders, and doors.

Electronics Industry: electronic enclosures, chassis, and components.

Construction Industry: roofing materials, wall claddings, and structural components.

Appliance Manufacturing: kitchen appliances, HVAC systems, and other household appliances.

Metalworking Industry: fabrication, metal furniture, signage, and decorative elements.

Packaging Industry: metal containers, cans, and packaging materials.

Energy Industry: solar panels, wind turbine components, and electrical enclosures.

Aerospace Industry: aircraft components, including wings, fuselage sections, and interior panels.

8*1250mm Strip Cut To Length Line Hydraulic Flying Shear Sheet Metal Cut To Length Machine

Support and Services:

  • It is backed by comprehensive technical support and services to ensure smooth operation and maximum uptime.
  • Our team of experienced technicians is available to provide installation, training, and ongoing maintenance and repair services to keep your equipment running at peak performance.
  • We offer remote diagnostics and troubleshooting to quickly resolve any issues that may arise.
  • Our commitment to customer satisfaction is reflected in our comprehensive warranty coverage and 24/7 customer support.

Packing and Shipping:

Product Packaging:

  • The Medium Gauge Cut To Length Line product will be securely packaged in a wooden crate to prevent any damage during transportation.
  • The crate will be labeled with the product name, dimensions, and handling instructions for easy identification and handling.

Shipping:

  • We offer worldwide shipping for the MediumGauge Cut To Length Line product.
  • The shipping cost will be calculated based on the destination and the weight of the product.
  • We use reputable shipping carriers to ensure prompt and safe delivery of the product.
  • Customers will receive a tracking number to monitor the progress of their shipment.

8*1250mm Strip Cut To Length Line Hydraulic Flying Shear Sheet Metal Cut To Length Machine

FAQ:

1. What is the primary function of the FX 2-8mm*1250mm Cut To Length Production Line?

The primary function of the FX 2-8mm*1250mm Cut To Length Production Line is to cut large coils into flat sheets of specified lengths, with a maximum cutting length of 6000mm. This process includes de-coiling, leveling, measuring, shearing, and stacking the material for further use in various applications.

2. What types of materials can the FX 2-8mm*1250mm Cut To Length Production Line process?

This production line is designed to handle a variety of materials, including:

  • Hot Rolled Carbon Steel
  • Cold Rolled Steel
  • Galvanized Steel
  • Pre-Painted Steel
  • Stainless Steel
  • Aluminum

3. What are the specifications of the FX 2-8mm*1250mm Cut To Length Production Line?

Key specifications of the Cut To Length Production Line include:

  • Thickness Range: 2mm to 8mm
  • Width Capacity: Up to 1250mm
  • Coil Weight: Up to 30 tons
  • Coil Inner Diameter: 450 mm to 800 mm

4. How fast can the FX 2-8mm*1250mm Cut To Length Production Line operate?

The production line can achieve cutting speeds of up to 40 meters per minute, significantly enhancing productivity and reducing lead times.

5. What is the cut tolerance of the FX 2-8mm*1250mmCut To Length Production Line?

The cut tolerance for this production line is less than ±0.5 mm, ensuring high precision and quality in the final products.
