Automatic Home Use Flat Die Fertilizer Granulating Machine With ISO Certification

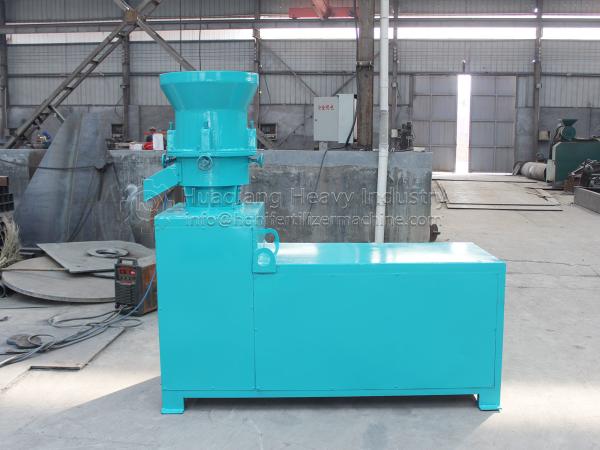

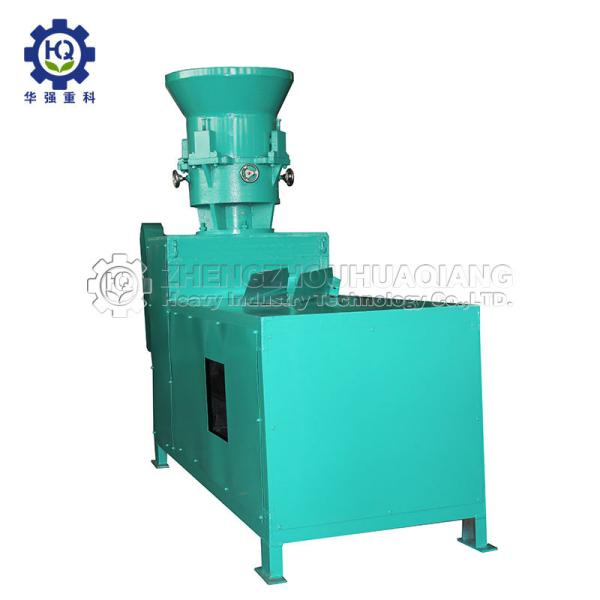

Introduction to flat die granulating machine

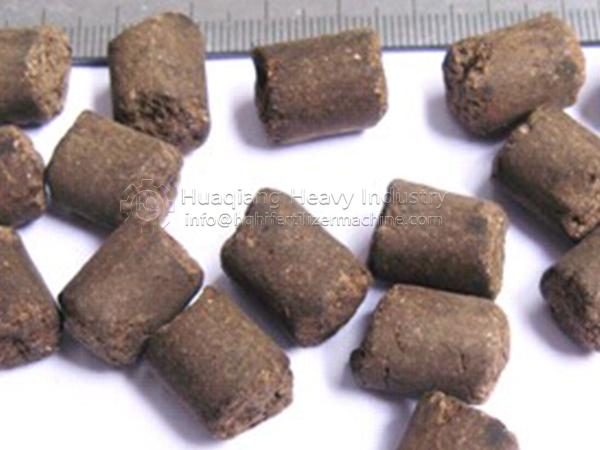

Multifunction flat die fertilizer granulating machine is aiming at producing bio-organic fertilizer. It is used for granulating several of organic matter after fermentation. And the particles shape of organic fertilizer is cylindrical. It can produce cylindrical granules directly without drying or crushing process which saves a lot of energy.

Specifications of flat die granulating machine

Working principle of flat die granulating machine

When you start the machine, the roller or die begin to rotate. They move relatively and form strong pressure and friction.

When you feed biomass materials through the hopper, they fall on the flat die and get compressed by the roller, then they are squeezed into the holes on flat die, where they are formed into solid cylindrical pellets.

Under the flat die there is a slicer cutting them into certain length. Then the pellets falls down and come out through the outlet.

Features of flat die granulating machine

1.The bearing and oil seal in the main drive are imported and operation more stable.

2. The granulation does not need add binder; organic particles can grow up each other in a certain force.

3. Flat die pellet mills have a layout that is compacted and simple. It is smaller in size and also lighter in weight as compared to other types of pellet mills.

Advantages of flat die granulating machine

1. Due to the structure of the machine, rollers, and die, flat die pellet mills are easy to be washed, cleaned, and looked after as compared to the other types of pellet mills where you would have to put extra care and attention to clean the whole apparatus.

2. Its structure is very simple and you don’t have to spend a lot of time to first understand it and then start operating it. You can easily maintain the performance of flat pellet mills by changing their rollers and dies whenever you think there is a need.

3. The whole machine adopts special high-quality materials and advanced shaft drive, the key components uses high-quality alloy steel and wear-resistant material.

Application of flat die granulating machine

1. It can be used with carbon ammonia, ammonium nitrate, calcium magnesium phosphate fertilizer, potassium chloride and other various ratio of compound fertilizer production.

2. It also can be used in the production of animal manure, organic manure and chemical fertilizers, rare earth fertilizer, drip irrigation, fertilizer and other organic and inorganic compound fertilizer production.

3. The other in cottonseed meal, tomato skin, chrysanthemum, sawdust, etc. all can granulate.

FAQ
1.Are you manufacturer or trading company?

We are professional manufacturer of fertilizer processing machines and related machines,such as ring mode fertilizer granulator,crusher, mixer, packing machine,compost turning machine and conveyor belt etc.

2.How about the delivery time?

It can be shipped immediately for the machine in stock,and 5-7days for the machine out of stock.

3.How long is the guarantee period?

Warranty for 12 months without artificial and deliberate damage.
