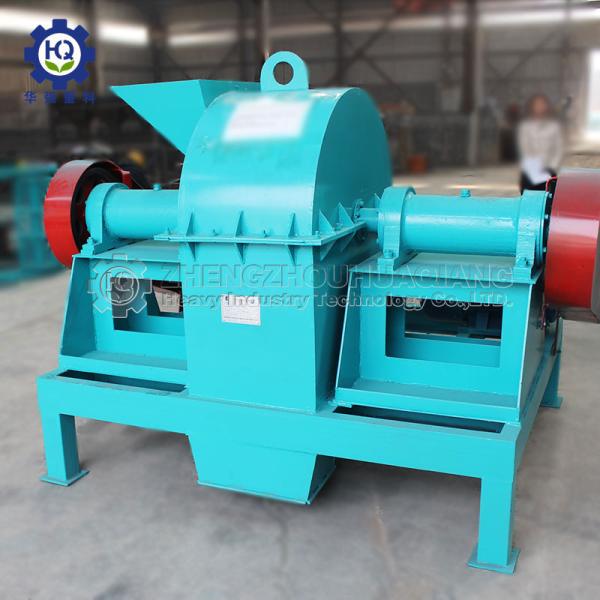

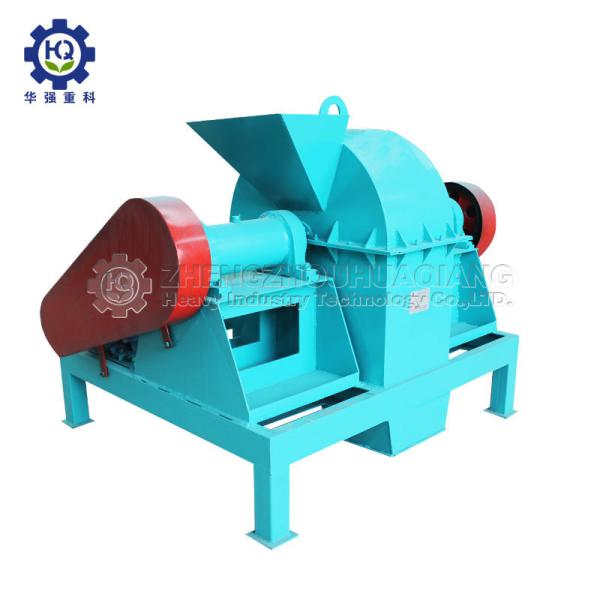

Urea DAP Chemical Fertilizer Double Cage Crusher Machine

Introduction of Urea DAP Chemical Fertilizer Double Cage Crusher Machine

Urea DAP Chemical Fertilizer Double Cage Crusher Machine is communion equipment designed to meet the production requirements of high nitrogen compound fertilizer and water-soluble fertilizer for crushing urea. The machine mainly uses the gap between the high-speed running roller and the concave plate for grinding and shearing. The size of the gap determines the degree of material crushing. After the urea granules enter the machine, the drum is first rotated at a high speed to break the particles against the wall and the baffle of the machine, and then grind into a powder through the gap between the drum and the concave plate. The equipment is simple in structure, convenient in operation, small in the dust, high in output and low in noise.

Features of Urea DAP Chemical Fertilizer Double Cage Crusher Machine

1. Cage crusher has the advantages of simple structure, high efficiency, low cost, convenient maintenance and repair, and is also suitable for sticky materials, so it is widely used in organic fertilizer processing.

2. Urea crusher adopts high strength wear-resistant cemented carbide cage bar with the synchronous speed in the grinding process. The inlet and outlet design are reasonable, and the crushing material is uniform, not easy to stick to the wall, and easy to clean.

3. After the material enters the trouser tube through the feed port, it is divided into two paths and falls into two rotors respectively. The rotor is driven by the motor at high speed through the belt. The rotor and motor are installed on the lower casing, and the rotor is enclosed in the upper and lower casing. The covers on both sides can be opened to facilitate cleaning, observation and maintenance.

4. The main shaft of the rotor is supported on two bearing blocks by the self-aligning bearing. The main shaft is equipped with a chain seat. The chain seat can protect the main shaft from corrosion and damage.

Parameters of Urea DAP Chemical Fertilizer Double Cage Crusher Machine

Advantages of Urea DAP Chemical Fertilizer Double Cage Crusher Machine

1, The machine has a simple structure not only transmission mechanism is simple, but also fragile parts only rotors and liners, the rest of the components can withstand use, no failure. And it's easy to operate. Be able to use the machine skillfully very quickly.

2, Cage crusher easy to install due to the compact mechanism, in the same production capacity, lighter than other types of shredders, installation space and foundation are small. And can be installed above the ground.

3, It has the crushing ratio in addition to large pieces of raw materials do not adapt, can be broken into 10 pieces of raw materials, especially 3 below.
