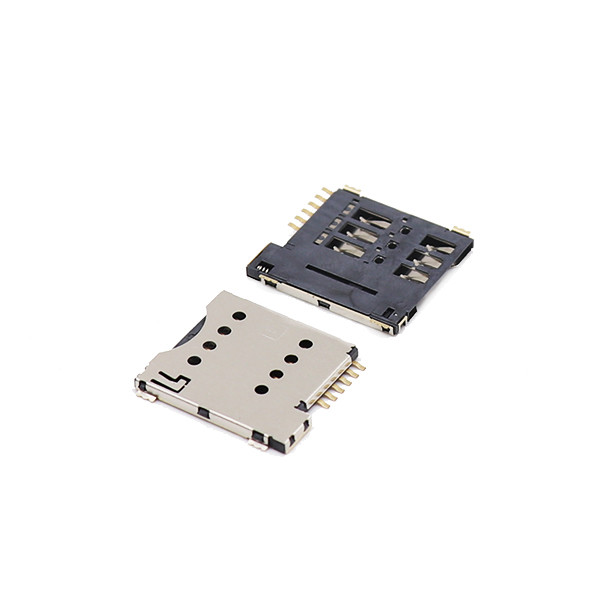

SMT Micro Sim Card Connector
SMT Micro Sim Card Connector
SMT Micro Sim Card Connector
SMT Micro Sim Card Connector
Specifications
Brand Name :
XTKCONN
Model Number :
Micro sim card connector
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
Guangdong,China
MOQ :
500pcs
Price :
Negotiable price
Payment Terms :
L/C, T/T,Payyal
Supply Ability :
4KK pcs
Delivery Time :
5-7 days
Packaging Details :
vacuum package,boxes in carton
Rated current :
0.5A AC
Rated voltage :
100V AC/DC
Durability cycles :
5000 Cycles Min
Insulation Resistance :
1000m ohms min
Contact :
Copper alloy
service :
samples for free
Description

Push Push Micro Sim Card connector In Communication Equipments

Product Detail

The SIM (User Identity Module) is a small smart card designed to store user identity, security, authentication and personal information for use in mobile network terminals. In order to make power and electrical signals "uninterrupted", "unchangeable" and "undecayed", contact reliability technology is particularly important. MSTCONN offers a wide range of types and sizes, including Nano (4FF SIM) cards, Micro SIM(3FF SIM) cards, Micro SIM(2FF SIM) cards and combination SIM cards, with outstanding technical capabilities and excellent reliability and durability. The MSTCONN SIM card holder also has an operating temperature range of -40 to +85 ° C.

Optimized for reliability and high-speed data transfer, compact, easy-to-use SIM Memory Card Sockets, in different configurations, meet the quick and compact connection requirements of various industries.

Description

Mounting Type SMT
No. Of Positions 6p
Rated current 0.5A AC
Rated voltage 100V AC/DC
Contact Resistance 100m ohms MAX
Insulation Resistance 1000m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -40to +85℃
Withstanding Voltage 500V/1min AC
Housing LCP UL94V-0 black
Contact Copper alloy
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Ejector TYpe Push-push;push-pull,Hinge;Tray type

SMT Micro Sim Card Connector

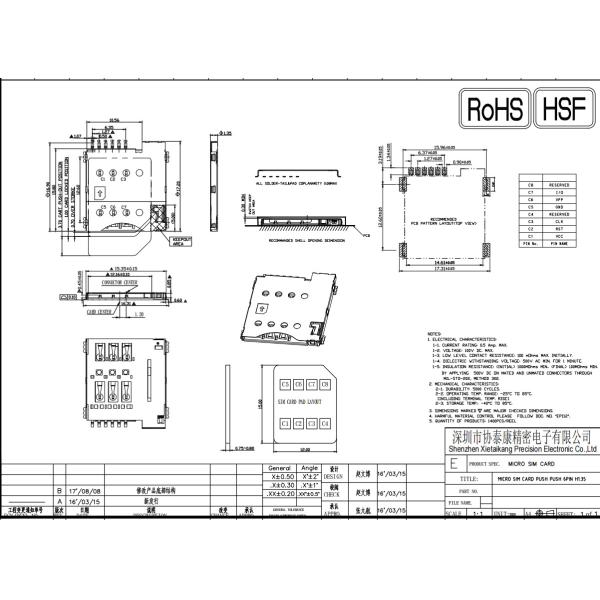

Drawing

SMT Micro Sim Card Connector

Product Feature

Variety of circuit sizes deliver both high reliability and speedy data rates.

1. XTK has many types card connectors: SD/TF/SIM/MICRO SD card connector.

2. All parts and accessories are made of environmentally friendly materials, in line with the latest RoHS,REACH requirements.
3. The solder joint fitting flatness is controlled at 0.1mm, and the contact tolerance is controlled at 0.02mm.

Our Services & Strength

1)Your inquiry will be replied within 12 hours.
2)Well-traind&experienced sales can reply your inquiries in English.
3)During working time,E-mail will be replied to you within 2 hours.
4)OEM&ODM projects are highly welcomed ,we have strong R&D team.
5)The order will be produced exactly according to order details and proofed samples,
our QC will submit inspection report before shipment.
6)Your business relationship with us will be confidential to any third party.
7)Good after-sale service.

Why choose us
1. We own R&D team more than 3 engineers ,give you strongest support !
2. Fast delivery time ,we keep Long term stock for you .
3. Factory Sale - Most Competitive price than average level .
FAQ

1.Ask:What products and services our company mainly provide
Answer :FPC Connector, Wafer socket, Sim card connector, Memory Card connector ,cable assembly, design, production and sales.

2.Are you trading company or manufacturer ?
Answer : We are factory.
3: If I want to customize products, how will it work?
Answer : Pls offer us drawings or pictures,or tell us equipped with professional equipments, technicians & skilled employees, OEM service are welcome.. If do not know , you need to tell us the model about connector and cable UL number with AWG,and the length of cable, last how to contact each wire to connector.
3.Ask:When we can get the sample? how about the cost?
Answer: Sample will be sent in 3-5 days for free if buyer agree to pay for shipping cost.

5.Ask:What's your delivery time?
Answer:Our normal delivery time is 10-15 days, if urgent, it will be dealt with urgently.

6.Ask:How we can trust your quality?
Answer:All material in RoHS, Reach standard, 100% test before delivery.

6.Ask:What's your price?
Answer:Our price is base on different market and can be negotiated.

8.Ask:What's your after-sale service?
Answer:We provide technique support for you and help you improve your design or drawing, also can help you solve your and your customer problem.
