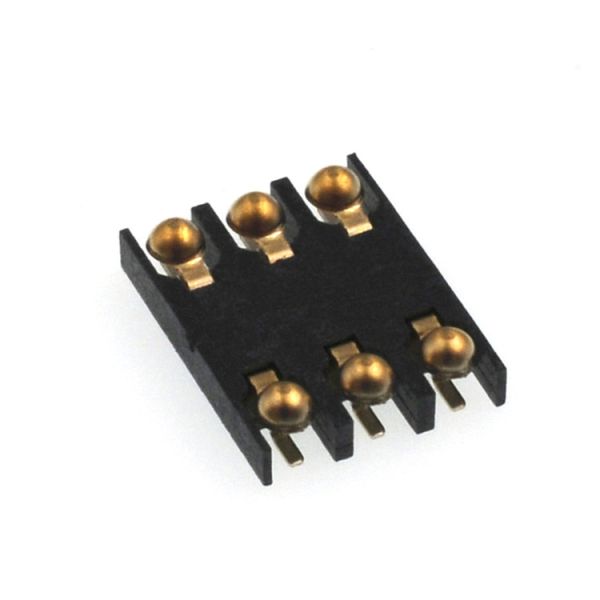

Spherical Shrapnel 6 Pin SIM Card Socket Connector SMT 1.5mm 2.0mm Height
Spherical Shrapnel 6 Pin SIM Card Socket Connector SMT 1.5mm 2.0mm Height
Spherical Shrapnel 6 Pin SIM Card Socket Connector SMT 1.5mm 2.0mm Height
Spherical Shrapnel 6 Pin SIM Card Socket Connector SMT 1.5mm 2.0mm Height
Specifications
Brand Name :
XTKCONN
Model Number :
Sim card connector
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
Guangdong,China
MOQ :
500pcs
Price :
Negotiable price
Payment Terms :
L/C, T/T,Payyal
Supply Ability :
4KK pcs
Delivery Time :
5-7 days
Packaging Details :
vacuum package,boxes in carton
Current Rating :
0.5mA max.
Solder Tail :
Sn PLATED Over Ni
Insulator :
High Temperature Thermoplastic
Contact Area :
Gold PLATED Over Ni
Operating Temperature :
-25℃ TO+90℃
Contact Resistance :
100mΩ max.
Description

Spherical Shrapnel 6pin Sim Card Connector Smt 1.5mm 2.0mm Height Simple

XTK is providing compact memory card sockets with a height of no more than 1.28mm, saving PCB space. As products become smaller, a minor external shock could cause short-circuit or misalignment. The hinge feature keeps the card stable, protecting it from external shocks and/vibrations. Customers require easy card insertion and extraction for portable devices. The push-push ejection system utilizes spring elasticity, and the push-pull system utilizes simple manual ejection, simplifying card insertion and ejection for portable devices.

Product informations
Name
SIM card connector
Brand name
XTKCONN
Type
SIM series
Product specifications
Operating temperature
-20 ℃ TO +60 ℃
Life
500,000 times
Rated current
1.5A
Rated voltage
30V
Durability
3000 Cycles MIN
Resistance voltage
500V AC MIN.
Contact impedance
30mΩ MAX. Initial; 40 m Ω MAX
Insulation resistance
1000mΩ MIN
Product material
Rubber core
PBT/LCP UL94V-0
Terminal
Brass C2680/Nickel base/Gold plated 1 U
Shell
SPCC/C2680 all-area nickel plated 40 U MIN

Spherical Shrapnel 6 Pin SIM Card Socket Connector SMT 1.5mm 2.0mm Height

SIM CARD CONNECTOR
The SIM (User Identity Module) is a small smart card designed to store user identity, security, authentication and personal information for use in mobile network terminals. In order to make power and electrical signals "uninterrupted", "unchangeable" and "undecayed", contact reliability technology is particularly important. XTKCONN offers a wide range of types and sizes, including Nano (4FF SIM) cards, Micro SIM(3FF SIM) cards, Micro SIM(2FF SIM) cards and combination SIM cards, with outstanding technical capabilities and excellent reliability and durability. The XTKCONN SIM card holder also has an operating temperature range of -40 to +85 ° C.
Our advantages
1. 15 years of experience in the connector industry
2. Production capacity for each month: 300000000 pieces
3. Quality and delivery guarantee
4. Free sample
5. Customization
6. one-stop shopping for you
