Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin
Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin
Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin
Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin
Specifications
Brand Name :
XTKCONN
Model Number :
FPC**-T1S1-0010-B
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
Guangdong,China
MOQ :
500pcs
Price :
Negotiable price
Payment Terms :
L/C, T/T,Payyal
Supply Ability :
2KK pcs
Delivery Time :
5-7 days
Packaging Details :
vacuum package,boxes in carton
Height :
1.0mm
Pitch :
0.5mm
Cover Material :
LCP UL94V-0 black
Withstanding Voltage :
250V AC,1min
Position :
6P~60Pin
Application :
Medical Equipment
Description

Up and Down contact Height 1.0mm 0.5mm Pitch FPC Cable Connector Horizontal Type

FPC/FFC connectors provided by Xietaikang are narrow-pitches and low-profile connectors contributing to space-saving that are optimum for compact telecommunication apparatus and products supporting equipment requiring high-speed data transmission , and a wide variety of product types featuring convenient one-touch locking function (flip-type locking), sliding ZIF and etc. are provided for achieving customers' requests.

Specifications

Pitch 0.5mm
Height 1.0mm
Mounting Type SMT/ZIF
Positions 4-60pin
Contact Location/Type Dual contact,Back lock PN:FPC**-T1S1-0010-A
Bottom contact,Front lock PN:FPC**-T1S1-0010-B
Current Rating 0.5A/Pin Max
Voltage Rating 50V AC/DC MAX
Withstanding Voltage 250V AC,1min
Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Copper alloy

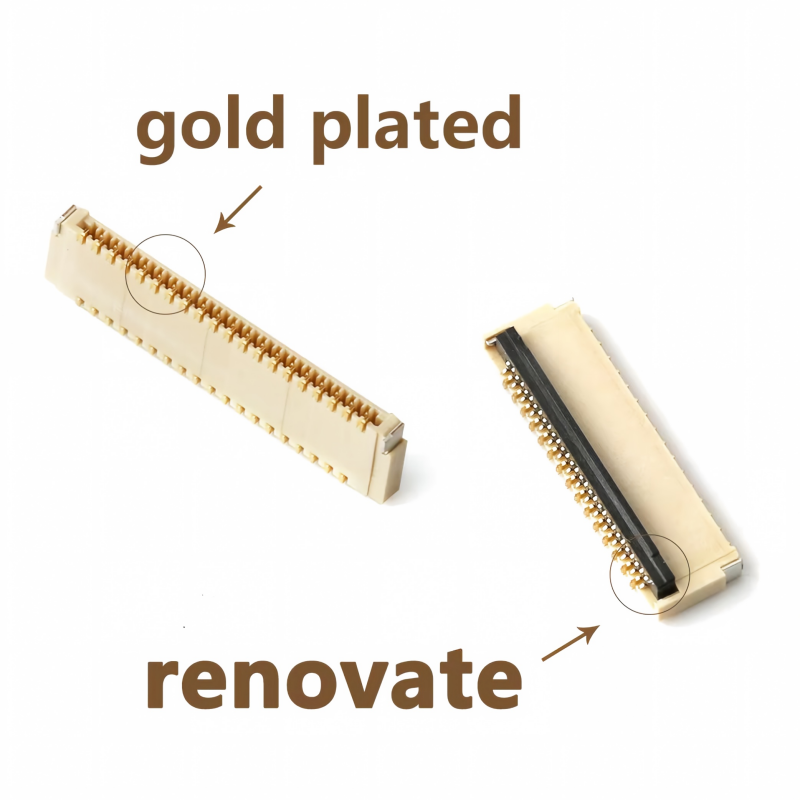

Plating Gold-plating
Operation Temperature -40℃ to +85℃
Lead Time 7-10 working Days

Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin

Product Application

1, Cusumer Electronics.

2, Communications Industry.

3, Medical Equipment.

4, Automotive Filed

5, Military Industry

6, Internet of things

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2: How To Order?

A: 1,please tell us what model and quantity you need;

2,then we will make a PI for you to confirm the order details;

3,when we confirmed everything, can arrange the payment;

4,finally we deliver the goods within the stipulated time.

Q3: When can we get the reply?

A: Any inquiries will be replied within 24 hours.

Q4: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: What’s the delivery time?

A: It usually takes about 7-14 days to produce the products.

Q6: What’s your payment term?

A: We usually accept T/T as the main payment term, and other payments can also be negotiated.

Q7: Quality problems?

A: If there is any quality problem or question, we could offer technical support or return service.
