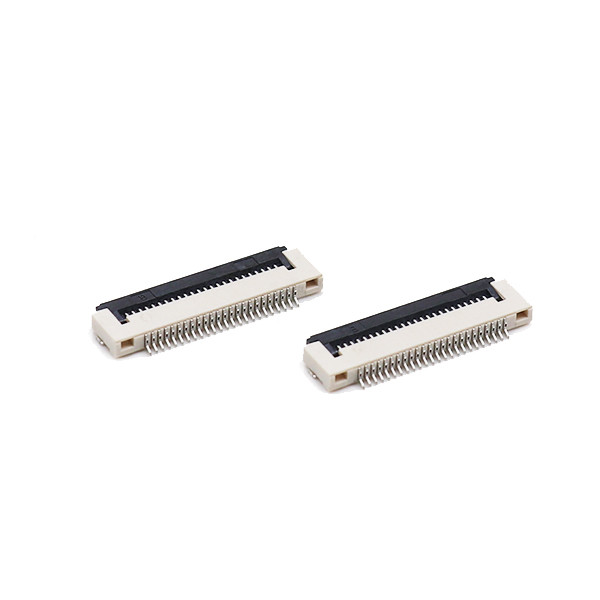

LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Height Down Contact
LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Height Down Contact
LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Height Down Contact
LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Height Down Contact
Specifications
Brand Name :
XTKCONN
Model Number :
FPC**-T1T1-0015-B
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
Guangdong,China
MOQ :
500pcs
Price :
Negotiable price
Payment Terms :
L/C, T/T,Payyal
Supply Ability :
4KK pcs
Delivery Time :
5-7 days
Packaging Details :
vacuum package,boxes in carton
Pitch :
0.5mm
Height :
1.5mm
No. Of Positions :
4-60pin
Operation Temperature :
40℃ to +85℃
Current Rating :
0.5A/Pin Max
Housing :
LCP UL94V-0 Natural
Description

0.5mm Height 1.5mm ZIF SMT FPC Connector Down contact

Super-fine pitch and small-size FFC/FPC Connectors with ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.

This Series are FPC Connectors for consumer electronics, featuring a pitch of 0.5mm, right angle, and height of 1.5mm. Dual-sided contacts with both top and bottom contacts contribute to fewer restrictions in FPC or PCB layouts. Back locks are adopted in these connectors, thus strengthening resistance to tensile force and realizing high contact reliability against vibrations and drop shocks.

Description

Pitch 0.5mm
Height 1.5mm
Mounting Type SMT/ZIF
No. Of Positions 4-60pin
Contact Location/Type Dual contact,Back lock,Gold-plated PN:FPC**-T1S1-0015-A
Bottom contact,Front lock,Tin-plated PN:FPC**-T1T1-0015-B
Current Rating 0.5A/Pin Max
Voltage Rating 50V AC/DC MAX
Withstanding Voltage 250V AC,1min
Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Copper alloy
Plating Tin-plating
Operation Temperature -40℃ to +85℃
Lead Time 7-10 working Days

LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Height Down Contact

Packaging & Shipment

FOB Port:Shenzhen

Lead time:7 working days

Packaging: reel in carton

Processing steps

Stamping / Injection -> pre-line inspection -> automatic machine plug terminal -> assembled back cover -> electrical test -> pressure test ->flatness test-->appearance test-->FQC test-->storage.
