Shenzhen Meiri Purification Technology Co., Ltd | | | | ||||
CLEAN BENCH SPECIFICATION | | | | ||||
Name | Vetical Flow Clean Bench | Laminar Flow Clean Bench | Laminar Flow Clean Bench | ||||
External Size (mm) | 1200*600*1800 | 1000*825*1800 | 1200*900*1600 | ||||
Internal Size (mm) | 1124*524*650 | 850*640*620 | 1100*700*720 | ||||
Cleanliness | Class100 @ 0.3um (99.99-99.99995%) | Class100 @ 0.3um (99.99-99.99995%) | ISO Grade 5 , FED 209E Class 100 | ||||
Noise | 46-55DB±3DB (Static Testing below 1 M of HEPA ) | 50DB±5DB | 58DB | ||||
Power | 220v 50hz/ | 220v 50hz/ | 220v 50hz/ 150~190W±5W | ||||
Application | MEDICAL PHARMACY FOOD INDUSTRY , LIVESTOCK, POWE PLANTS,HEALTHY CARE AND HOSPITAL , RESEARCH INSTITUTION , AEROSPACE TECHNOLOGY AUTO INDUSTRY | | | ||||
Air Speed (Adjustable) | 0.45m/s | 0.45m/s | 0.45m/s~0.75m/s ±5% (three gears adjustable) | ||||
Ilumination / Accessories | Energy Saving Lamp *2 ( Each on the back and front) | Clean Lamp*1 / Germicidal Lamp*1 : 18W/8W | Clean Lamp*1 / Germicidal Lamp*1 : 18W/8W | ||||
CFU | ≤0.5cfu/M/0.5H | ≤0.5cfu/M/0.5H | ≤0.5cfu/M/0.5H | ||||
Applicable No. of People | 1 Person | 1 Person | 1 person | ||||
Warranty | 3Years | 3Years | 3Years | ||||
Material | Full SUS304 | Outer Coated Cold-rolled Steel Plate / Inner SUS304 | Outer Coated Cold-rolled Steel Plate / Inner SUS304 |

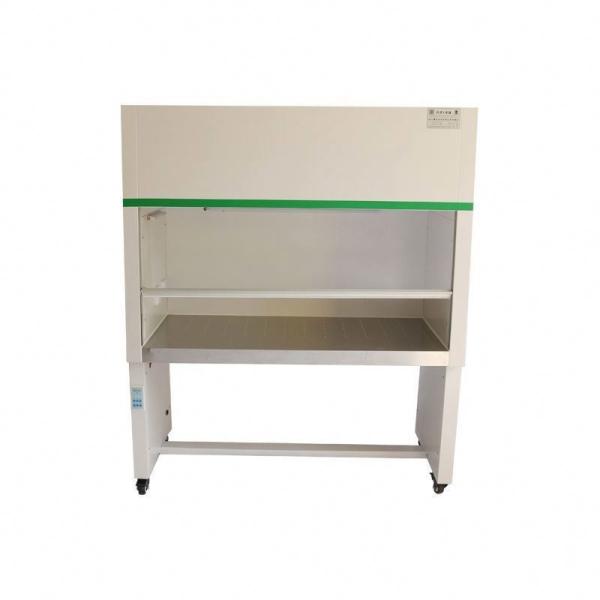

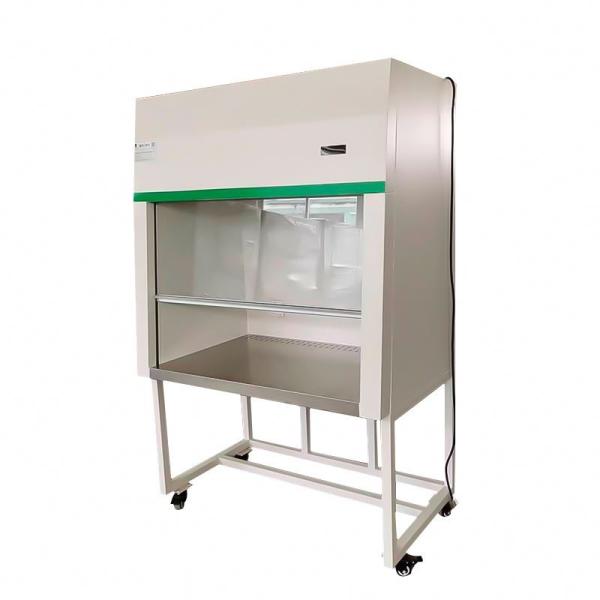

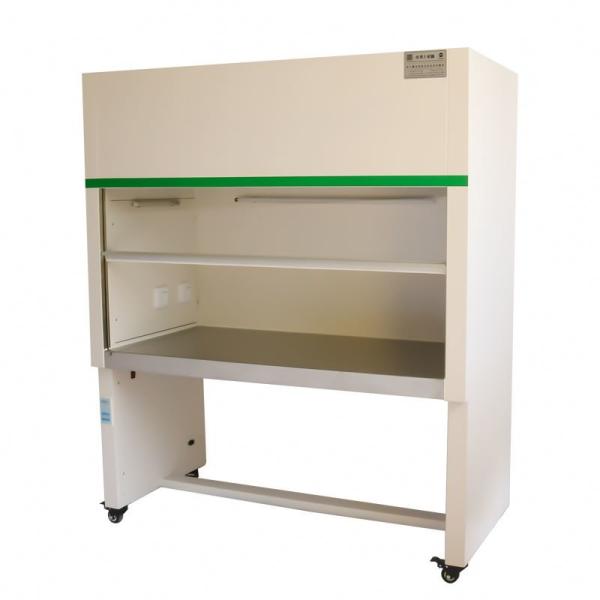

Product Description
The clean bench, also known as a laminar flow cabinet, has a specific function in providing a controlled and sterile workspace. Here are some key points about the function of a clean bench:
Contamination Control: The primary function of a clean bench is to control contamination in a work area. It achieves this by using a high-efficiency particulate air (HEPA) filter that removes airborne particles and contaminants. The filtered air is then directed in a laminar, unidirectional flow over the working area, keeping it free from contaminants that could compromise the integrity of samples, experiments, or processes.
Sterile Environment: A clean bench creates a sterile environment within the workspace. The HEPA-filtered air eliminates microorganisms and particles, reducing the risk of contamination. This is essential when working with sensitive samples or conducting experiments that require a sterile environment, such as cell culture, microbiology, or pharmaceutical preparations.
Sample Protection: Another important function of a clean bench is to protect samples from external contamination. The controlled airflow and physical barrier provided by the clean bench help prevent airborne particles, microorganisms, or other contaminants from coming into contact with the samples. This protection ensures the reliability and accuracy of experimental results or the viability of delicate samples.
Personal Safety: Clean benches also offer a degree of personal safety for the user. The laminar flow of filtered air creates a barrier between the operator and potentially harmful substances, minimizing the risk of exposure. This is particularly relevant when working with hazardous chemicals, biological agents, or biohazardous materials.
