GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade
GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade
GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade
GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade
GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade
GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade
Specifications
Brand Name :
MRJH
Model Number :
MRJH - FLCDC800N304
Certification :
ISO 14644、CE、GMP
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Detailed discussion
Delivery Time :
7-15 days
Packaging Details :
Wooden frame
External Dimensions :
W960 × D890 × H1700 (mm)
Air Shower Area :
W800 × D800 × H800 (mm)
custom made :
support
Description

GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade

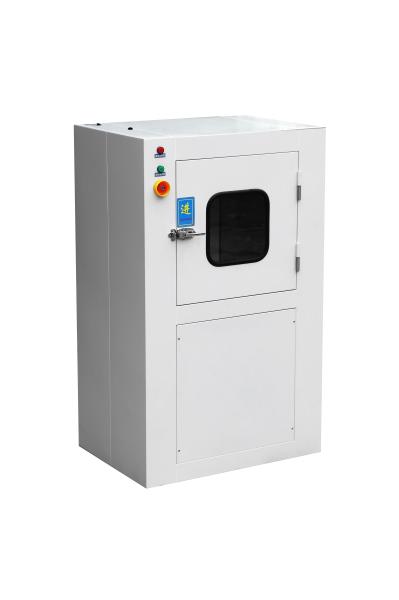

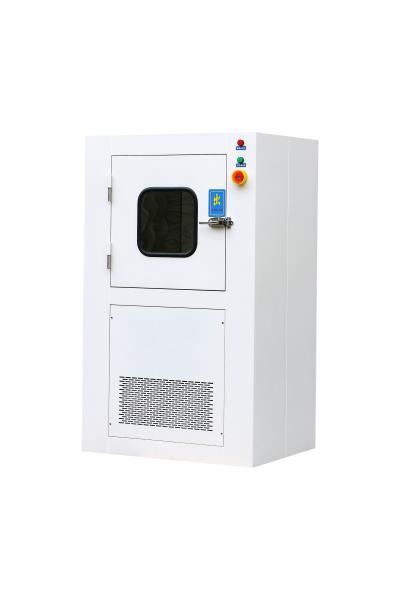

Engineered for precision material transfer between ISO Class 5-8 cleanrooms, this Air Shower Pass-Through Window integrates advanced contamination control technologies to meet rigorous industry standards in pharmaceuticals, biotechnology, and electronics.


Parameter Name

 parameter
Material 304 stainless steel with baking paint outside
Window Design Double-layer tempered glass with silk-screened black edges
Air Shower System 4 adjustable stainless steel air nozzles
Control System Panel control with dual-door electronic interlock
Fan System 220V/50Hz air shower fan, nozzle outlet speed: 13–25 m/s
Filtration 2 pre-filters + 1 high-efficiency filter (99.99% efficiency)
Lighting Clean lighting LED lamp
Door System Flat door design with pressure handles for airtight sealing
Internal Design Rounded internal corners for easy cleaning and GMP compliance
Manufacturing Process Laser cutting, CNC bending, and laser welding for precision and aesthetics
External Dimensions W960 × D890 × H1700 (mm)
Internal Dimensions W800 × D800 × H800 (mm)
Certifications ISO 14644-1

GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade

GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade

GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade

GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade

Key Features

1. 304 Stainless Steel Construction: Durable and corrosion-resistant with baking paint outside for cleanroom compatibility.

2. Aesthetic & Functional Design: Double-layer tempered glass with silk-screened black edges for visibility, sound insulation, and style.

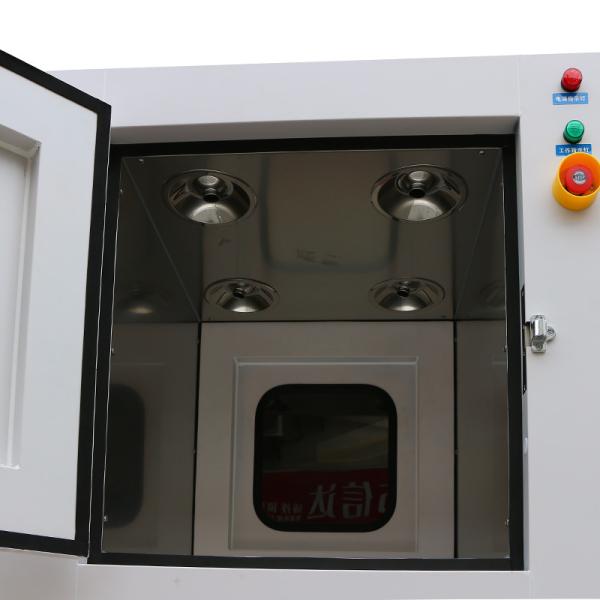

3. High-Efficiency Air Shower: 4 adjustable stainless steel nozzles with 13–25 m/s wind speed for rapid decontamination.

4. Smart Control: Panel control with dual-door electronic interlock to prevent cross-contamination.

5. Advanced Filtration: 2 pre-filters + 1 HEPA filter ensure 99.99% efficiency.

6. Clean Lighting: Integrated LED lamp for illumination during transfers.

7. GMP Compliance: Rounded internal corners and flat door design for easy cleaning and high-end appearance.

8. Reinforced Interlock Mechanism: Made of reinforced steel for extended lifespan.

9. Safety & Visibility: Tempered glass observation window ensures clear visibility and enhanced safety.

10. Precision Manufacturing: Laser cutting, CNC bending, and laser welding for exact dimensions and aesthetic appeal.

Application Scenarios

Material transfer in pharmaceutical cleanrooms.

Sterile sample handling in biomedical laboratories.

Contamination-sensitive component transfer in electronics manufacturing.


GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade

GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade


GMP/ISO-Certified Air Shower Pass Box | 304 Steel & Electronic Interlock | Pharma/Electronics Grade

Q1: How does this GMP/ISO-Certified Air Shower Pass Box ensure compliance with pharmaceutical and electronics industry standards while preventing cross-contamination?
This pass box is rigorously certified to meet GMP Annex 1 and ISO 14644-1 Class 5 cleanliness requirements, ensuring sterile material transfer in regulated environments. It features HEPA H14 filters (≥99.995% efficiency at 0.3μm) and a laminar airflow system that maintains particle-free conditions. The 304 stainless steel construction provides a smooth, non-porous surface that resists particle buildup and simplifies sanitization, critical for GMP compliance. The electronic interlock system ensures only one door opens at a time, creating an airtight barrier to prevent cross-contamination. Optional UV-C sterilization further eliminates microbial risks, making it ideal for pharmaceutical manufacturing, electronics assembly, or any application requiring strict contamination control.

Q2: Can the 304 stainless steel construction and electronic interlock system withstand frequent use and harsh chemicals in pharmaceutical or electronics cleanrooms?
Yes. The 304 stainless steel build offers superior corrosion resistance, making it suitable for environments with daily sanitization or exposure to mild chemicals. Its durable, non-porous surface resists scratches and particle adhesion, reducing maintenance and contamination risks. The electronic interlock system is engineered for reliability, with fail-safe mechanisms that prevent door malfunctions even in high-traffic settings. The pass box is designed for heavy use, with welded seams and airtight seals that maintain structural integrity over time. Routine maintenance, such as filter replacements (HEPA filters every 12–18 months) and gasket inspections, ensures long-term performance in demanding cleanroom environments.

Q3: How does the electronic interlock system in this Air Shower Pass Box improve operational efficiency and safety in pharmaceutical or electronics workflows?
The electronic interlock system streamlines material transfer by automatically coordinating door movements, eliminating the risk of simultaneous door openings and cross-contamination. It integrates with the air shower’s controls to initiate a timed purge cycle (10–15 seconds) that removes particles before the opposing door unlocks, ensuring efficient, compliant transfers. The intuitive interface reduces operator error, while real-time status indicators (e.g., door position, filter alerts) enhance visibility. This system not only improves safety but also minimizes downtime in high-throughput operations, making it an essential tool for pharmaceutical production lines or electronics assembly where speed and precision are critical.
