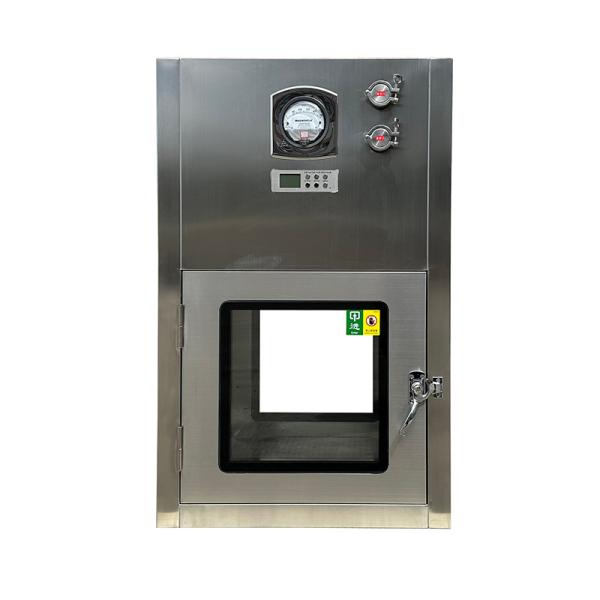

GMP Grade A Pass Box for Vial Transfer | 304 Steel & 600mm Clean Zone
GMP Grade A Pass Box for Vial Transfer | 304 Steel & 600mm Clean Zone
GMP Grade A Pass Box for Vial Transfer | 304 Steel & 600mm Clean Zone
GMP Grade A Pass Box for Vial Transfer | 304 Steel & 600mm Clean Zone
Specifications
Brand Name :
MRJH
Model Number :
MRJH - CLCDC600Q304
Certification :
ISO 14644、CE、GMP
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Detailed discussion
Delivery Time :
7-15 days
Packaging Details :
Wooden frame
External Dimensions :
W800 × D670 × H1200 (mm)
Air Shower Area :
W600 × D600 × H600 (mm)
custom made :
support
Description

GMP Grade A Pass Box for Vial Transfer | 304 Steel & 600mm Clean Zone


The Laminar Flow Pass-Through Cabinet is a precision-engineered solution for contamination-free material transfer between cleanroom environments, ensuring strict compliance with ISO 14644-1 standards. Designed for pharmaceutical, laboratory, and electronics manufacturing applications, this cabinet combines advanced materials, cutting-edge filtration, and intelligent safety features to uphold ISO Class 5 air quality and streamline sterile workflows.


Parameter Name

 parameter
Material SUS304 stainless steel with sandblasted finish
Internal Design Rounded internal corners, UV sterilization + illumination lights
Window Design Double-layer tempered glass with silk-screened black edges
Control System Electronic interlock system, DOP testing port, pressure gauge
Airflow & Noise Air velocity: 0.35–0.75 m/s, Noise level: 45–55 dB
Door System Clamping-style handles, high-elastic sealing strips
Fan & Filtration Low-noise fan, H14 liquid tank filter (99.995% @ 0.3µm)
Lighting Integrated UV sterilization + LED illumination
External Dimensions W800 × D670 × H1200 (mm)
Internal Dimensions W600 × D600 × H600 (mm)
Certifications ISO 9001

GMP Grade A Pass Box for Vial Transfer | 304 Steel & 600mm Clean Zone

GMP Grade A Pass Box for Vial Transfer | 304 Steel & 600mm Clean Zone

GMP Grade A Pass Box for Vial Transfer | 304 Steel & 600mm Clean Zone

GMP Grade A Pass Box for Vial Transfer | 304 Steel & 600mm Clean Zone

Key Features

1. SUS304 Stainless Steel Construction: Sandblasted finish for durability and cleanroom compatibility.

2. Aesthetic & Functional Design: Double-layer tempered glass with black edges for visibility and style.

3. Safety Compliance: Electronic interlock prevents door opening during operation; front-mounted DOP testing port for filter integrity checks.

4. High-Efficiency Filtration: H14 liquid tank filter with 99.995% efficiency @ 0.3µm.

5. Low-Noise Operation: Optimized fan and impeller for quiet performance (45–55 dB).

6. Sterilization & Illumination: Integrated UV sterilization and LED lighting for contamination control.

Application Scenarios

Material transfer in pharmaceutical cleanrooms.

Sterile sample handling in biomedical laboratories.

Contamination-sensitive component transfer in electronics manufacturing.


GMP Grade A Pass Box for Vial Transfer | 304 Steel & 600mm Clean Zone

GMP Grade A Pass Box for Vial Transfer | 304 Steel & 600mm Clean Zone


GMP Grade A Pass Box for Vial Transfer | 304 Steel & 600mm Clean Zone

Q1: How does this GMP Grade A pass box ensure sterile vial transfer while maintaining compliance with strict pharmaceutical standards?
A1: This pass box is designed to meet GMP Grade A requirements, ensuring aseptic conditions for vial transfer. It features HEPA H14 filters (≥99.995% efficiency at capturing particles ≥0.3μm) and a unidirectional laminar airflow system that creates a Class 5 clean zone. The 600mm-wide clean zone accommodates multiple vials or small batches, while stainless steel 304 construction provides a smooth, non-porous surface that resists particle buildup and is easy to sanitize. Automatic interlocking doors prevent cross-contamination, and optional UV-C sterilization further eliminates microbial risks. This design ensures compliance with GMP Annex 1 and EU/FDA regulations, critical for sterile pharmaceutical manufacturing.

Q2: Can the 304 stainless steel construction withstand frequent sanitization and harsh pharmaceutical environments?
A2: Yes. 304 stainless steel is corrosion-resistant and durable, making it ideal for pharmaceutical settings where frequent cleaning with aggressive disinfectants is required. Its smooth finish prevents dust and residue accumulation, simplifying maintenance and reducing the risk of contamination. The pass box’s welded seams and airtight seals ensure structural integrity even with daily sanitization. For highly corrosive applications, optional 316L stainless steel upgrades are available. Regular filter replacements (HEPA filters: 12–18 months) and gasket inspections maintain performance, ensuring long-term reliability in demanding cleanroom environments.

Q3: How does the 600mm clean zone in this pass box optimize vial transfer efficiency for pharmaceutical operations?
A3: The 600mm-wide clean zone is specifically designed to accommodate standard vial trays or multiple small containers, streamlining batch transfers without compromising sterility. The laminar airflow system provides uniform coverage across the entire zone, ensuring rapid particle removal from vials or equipment. The pass box’s compact footprint fits seamlessly into existing cleanroom layouts, while its ergonomic design allows easy access for operators. By minimizing the need for manual handling or resterilization, the 600mm clean zone reduces downtime and enhances productivity in high-throughput pharmaceutical packaging or labelling processes.
