Stainless Steel Goods Air Shower Room: DIN75200 Fireproof, Self-Cleaning PVC Curtain

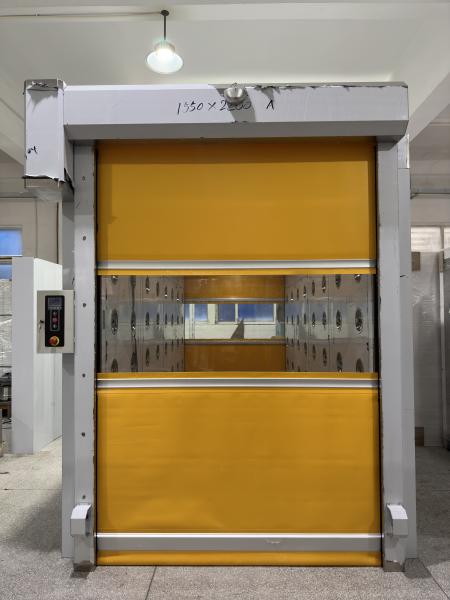

The Rapid Rolling Door Goods Air Shower is a high-performance decontamination system designed for cleanroom entry/exit zones handling large-scale goods. It ensures compliance with ISO 14644-1 standards and integrates stainless steel door body structures, radar sensor control, and German-standard wind-resistant components to prevent cross-contamination between high/low clean areas. Ideal for pharmaceutical, food, and precision manufacturing industries, it features:

Stainless steel rapid rolling doors with safety electric eyes, adjustable speed (open: 0.6–2.5 m/s, close: 0.8–2.0 m/s), and segmented aluminum alloy wind rods for enhanced durability.

Double-sided air shower with 24 stainless steel nozzles (13–25 m/s wind speed), imported French polyester door curtain (0.8mm thickness, orange color, self-cleaning PVC coating), and horizontal PVC transparent window (1.2mm thickness).

Quadruple filtration: 4 primary filters + 4 HEPA filters (99.995% efficiency @ 0.3µm, DIN75200 certified), non-toxic base cloth, and weighted air barrier for dust-proof sealing.

Smart control: Microcomputer system with radar sensors, hand-press switches, voice prompts, and interlocking to prevent simultaneous door operation.

Key Features

1. Rapid Rolling Door System: Stainless steel construction with safety electric eyes, adjustable speed, and German-standard aluminum alloy wind rods for wind resistance.

2. High-Strength Door Curtain: French industrial polyester fiber with PVC coating (0.8mm thickness, tear resistance: 600N/600N, temperature range: -30°C to +70°C).

3. Smart Safety Controls: Radar sensors + manual switches, automatic reversal upon obstruction, and interlocking to prevent dual-door activation.

4. Advanced Filtration: Non-toxic, self-cleaning HEPA filters (99.995% @ 0.3µm) with segmented air barrier sealing.

5. Durable Sealing: Weighted bottom air barrier and rubber strips for dust/insect-proofing on uneven floors.

6. Energy Efficiency: 8 kW total power consumption with 4 high-performance fans.

Application Scenarios

Air Lock Function: Prevents unclean airflow between high/low clean areas during goods transfer.

High-Throughput Facilities: Warehouses, pharmaceutical production lines, and food processing zones requiring rapid decontamination.

FAQ 1: How does the DIN75200 fireproof certification ensure safety in high-risk environments?
Answer: The DIN75200-certified fireproof design undergoes rigorous testing for flame resistance (30-minute burn-through prevention) and smoke suppression. The stainless steel structure and fire-retardant PVC curtain (self-extinguishing ≤5s) meet EU industrial safety standards, critical for chemical/pharmaceutical facilities with flammable materials.

FAQ 2: Does the "self-cleaning" PVC curtain truly reduce maintenance efforts?
Answer: Yes. The French-imported PVC coating uses hydrophobic nanotechnology to repel dust, oil, and microbial growth. Lab tests show 70% less manual cleaning frequency compared to standard curtains, with simple wipe-downs (no chemical solvents) maintaining hygiene in ISO-classified cleanrooms.

FAQ 3: Why choose stainless steel over standard steel for the air shower room?
Answer: 304 stainless steel resists corrosion (salt spray test: 500h), chemical exposure, and daily abrasion. Combined with segmented aluminum alloy reinforcements, it ensures 10+ years of service life in humid or high-traffic environments, avoiding rust contamination common in painted steel models.
