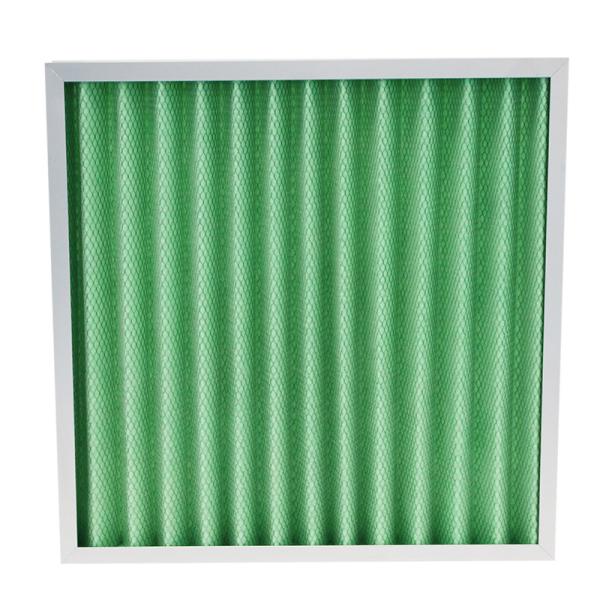

Plate air filter medium efficiency with double sided metal mesh for prefiltration

1,Plate air filter medium efficiency description

The plate medium efficiency air filter has a simple structure and low price, and is a device for a pre-filter of an air-conditioning system and a comfort air-conditioning system that does not require high purification. It is mainly used to filter dust particles above 5μm. The outer frame material has paper frame, aluminum frame and galvanized iron frame. The filter material includes non-woven fabric, nylon mesh, activated carbon filter material, metal mesh net, etc.

The protective net has double-sided sprayed iron wire mesh and double-sided galvanized wire mesh.

2, Plate air filter medium efficiency features

1). The flat-type primary effect filter frame adopts a sturdy plate-type aluminum alloy frame, and the wind-out surface and diamond-shaped protection net ensure that the filter is not deformed or damaged under the poor working environment; the light plate structure.

2). The filter material is made of high-quality polyester synthetic fiber, which can be cleaned and reused many times. It has long service life, economical and practical, fluffy and dense fiber structure, ensuring high dust collection rate and large dust holding capacity, effectively extending The service life of the filter in its rear end.

3), 1 inch (21mm, 25mm) different thickness to choose from, you can choose the filter grade: G2, G3, G4 (EN779)

3.Plate air filter medium efficiency adhibition

1): Central air conditioning and centralized ventilation system pre-filtration

2): Large air compressor pre-filtration

3): Clean return air system

4): Pre-filtration of local high efficiency filtration device

5): High temperature air filter, stainless steel frame, high temperature resistance 250-300 ° C filtration efficiency

Summary: This efficiency filter, which is commonly used for primary filtration of air conditioning and ventilation systems, is also suitable for simple air conditioning and ventilation systems that require only one stage of filtration.

4.Plate air filter medium efficiency structure

The outer frame is generally divided into a general cardboard frame and an aluminum frame, and the filter element is pleated fiber filter material lined with a single-sided wire mesh. Beautiful appearance, sturdy and durable structure. Generally, the cardboard frame is used to manufacture non-standard filter. It can be used in any size filter production, high strength and not suitable for deformation. High-strength and cardboard are used to manufacture standard-size filters, featuring high specification accuracy, aesthetics, and low cost. If imported surface fiber or synthetic fiber filter material, its performance indicators can meet or exceed the similar products of imported filters.
