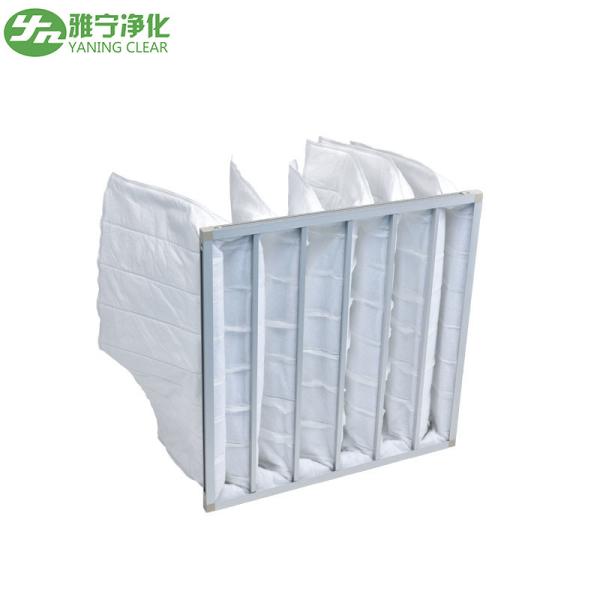

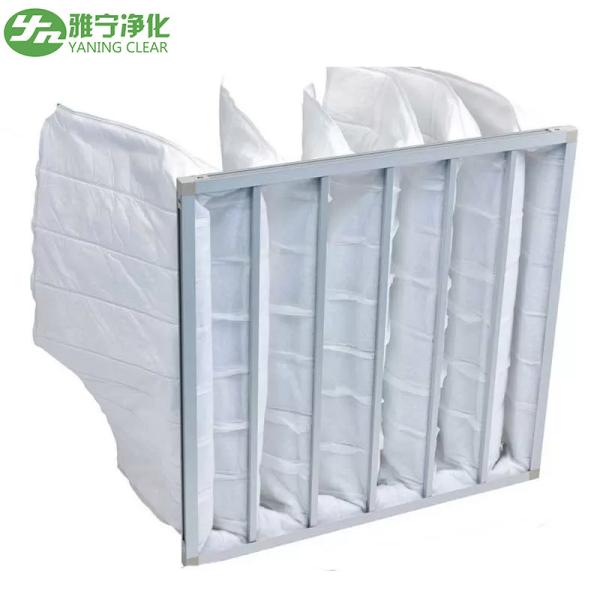

White 6 Bags F9 Bag Filter Non Woven Fabric Material For Painting Industry
White 6 Bags F9 Bag Filter Non Woven Fabric Material For Painting Industry
White 6 Bags F9 Bag Filter Non Woven Fabric Material For Painting Industry
White 6 Bags F9 Bag Filter Non Woven Fabric Material For Painting Industry
White 6 Bags F9 Bag Filter Non Woven Fabric Material For Painting Industry
White 6 Bags F9 Bag Filter Non Woven Fabric Material For Painting Industry
Specifications
Brand Name :
YN
Model Number :
YN-BG009
Certification :
CE / ISO
Place of Origin :
China
MOQ :
100 pcs
Price :
Reconsideration
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
10000 pcs per month
Delivery Time :
7~15 days working days after receiving payment
Packaging Details :
Carton packge or as per customer's requriement
Name :
bag filter
Size :
595*595*500
Filter Media :
nin-woven
Frame :
Aluminum
Pocket Number :
6pcs or as your requirements
Air volume :
2500
Description

595*595*500mm White Non-woven fabric F9 Bag Filter with 6 Bags for Painting Industry

Product Description

Function

1Application to the air conditioning system in commercial buildings warehouse schools or lab

2Used for the painting system and front-end filtration in the painting workshop

Material feature

1Good flexibility incremental structure and high performance

2Bag filter without biological activity can make sure that microorganism can not live

3High temperature resistance at 100°C

4Strong moisture resistance at 100°C

5The certification of fire protection is compliant withDIN53438F1

Product characteristic

1Seamless sintering to make sure the high reliability in operation conditions

2Distinctive support design for the fused bag to get the best filter effects

3The bag filter without silicone is particularly applicable to the painting workshop

Features:

1.High dust contain capacity

2.Efficiency: F5,F6,F7,F8,F9

3.Repeatable use after clean up

4.Filtering material:non-woven, synthetic fiber and glass fiber

Standard size and Specification:

Model Outside dimensions(mm) Rated air flow(m³/h) Initial resistance(Pa) Efficiency
(Colorimetry)		 Pockets
VZF5-1600 595x295x500mm
24"x12"x20"		 1600m³/h 50Pa 40-50% F5/Yellow 3
VZF5-3200 595x595x500mm
24"x24"x20"		 3200m³/h 6
VZF6-1600 595x295x500mm
24"x12"x20"		 1600m³/h 55Pa 60-70% F6/Orange 3
VZF6-3200 595x595x500mm
24"x24"x20"		 3200m³/h 6
VZF7-1300 495x295x500mm
20"x12"x20"		 1300m³/h 110Pa 80-85% F7/Purple 3
VZF7-1600 595x295x500mm
24"x12"x20"		 1600m³/h 3
VZF7-3200 595x595x500mm
24"x24"x20"		 3200m³/h 10
VZF8-1600 595x295x500mm
24"x12"x20"		 1600m³/h 120Pa 90-95% F8/Primrose Yellow 3
VZF8-3200 595x595x500mm
24"x24"x20"		 3200m³/h 10

White 6 Bags F9 Bag Filter Non Woven Fabric Material For Painting Industry

White 6 Bags F9 Bag Filter Non Woven Fabric Material For Painting IndustryWhite 6 Bags F9 Bag Filter Non Woven Fabric Material For Painting Industry
