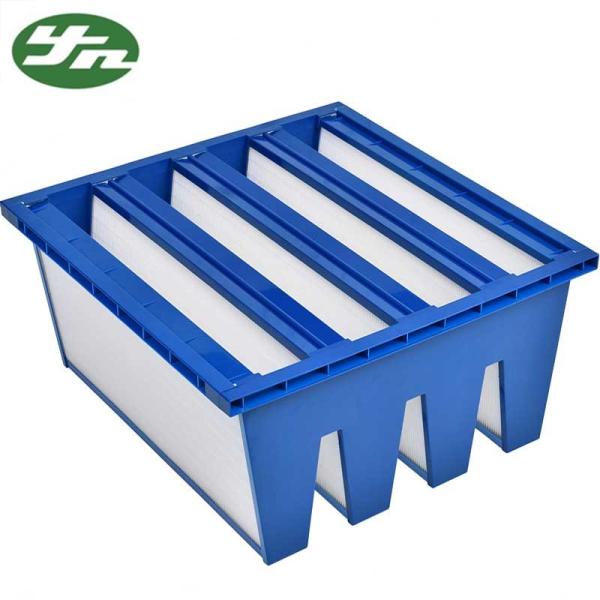

Medium Efficiency V Bank Air Filter Compact Design , Plastic / Galvanized Frame
Medium Efficiency V Bank Air Filter Compact Design , Plastic / Galvanized Frame
Medium Efficiency V Bank Air Filter Compact Design , Plastic / Galvanized Frame
Medium Efficiency V Bank Air Filter Compact Design , Plastic / Galvanized Frame
Specifications
Brand Name :
Yaning
Model Number :
YN-FV
Certification :
CE / ISO
Place of Origin :
China
MOQ :
100 units
Price :
Reconsideration
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
10000 units /month
Delivery Time :
5~12 days
Packaging Details :
Exported standard wooden case
Name :
V bank air medium high efficiency filter
Size :
See tabulation in the detailed description
Frame Material :
Plastic
Efficiency :
60%, 90%, 95%, 98%(ASHRA 52.1-1992)
Initial Pressure :
≤ 120pa
Final Pressure :
400pa
Description

YN-FV plastic/galvanized frame V bank compact hepa air medium efficiency filter


Parameters:

Model Out
Dimension
(W*H*D)mm		 Divisions
no		 Air
volume
(m³/h)		 Filrer
area
(㎡)		 Dust holding
Capacity(g)		 Initial
Pressure
(0.5m/s)		 Final
Pressure		 Efficiency
YN-FV-102 595*595*295 3 2800 16.2 1460 ≤120pa 400pa PP
85%@0.5μm
YN-FV-103 595*595*295 4 3700 21.6 1950
YN-FV-104 610*610*295 5 4700 27.7 2490
YN-FV-107 595*595*295 3 2600 16.2 1430 ≤120pa 400pa PP
99%@0.5μm
YN-FV-108 595*595*295 4 3500 21.6 1900
YN-FV-109 610*610*295 5 4500 27.7 2440
YN-FV-112 595*595*295 3 2900 17.8 1570 ≤120pa 400pa PP
99%@0.5μm
YN-FV-113 595*595*295 4 3600 23.8 2090
YN-FV-114 610*610*295 5 4900 30.4 2680

Features:


Designed with V cell which makes it low resistant
Mini-pleat designed with polypropene media
High dust holding capacity, easy installation, long life
Strong structured to make it runs stable under turbulence condition
The polystyrene frame can be totally treated by burning

Efficiencies:

(FV102~104) PP 85%@0.5μm

(FV107~109) PP 99%@0.5μm

(FV112~114) PP 99%@0.5μm


Standard: EN779


Operating temperature: Max 80℃ (180℉)


Operating humidity: 100%


Application of v bank hepa filter:
Medium filtration for clean room and air conditioning & ventilation system of pharmaceutical factory
Filtration for high temperature VAV air conditioning & ventilation systems
Filtration for air condition system which in tense installing space but low resistance requiredMedium Efficiency V Bank Air Filter Compact Design , Plastic / Galvanized FrameMedium Efficiency V Bank Air Filter Compact Design , Plastic / Galvanized FrameMedium Efficiency V Bank Air Filter Compact Design , Plastic / Galvanized Frame
