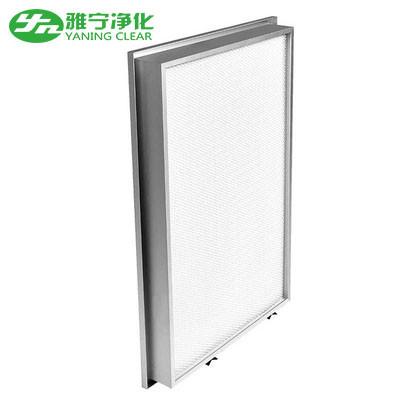

High Sealing Performance Portable Hepa Filter
High Sealing Performance Portable Hepa Filter
High Sealing Performance Portable Hepa Filter
High Sealing Performance Portable Hepa Filter
High Sealing Performance Portable Hepa Filter
High Sealing Performance Portable Hepa Filter
High Sealing Performance Portable Hepa Filter
High Sealing Performance Portable Hepa Filter
Specifications
Brand Name :
YN
Model Number :
YN-UHF915
Certification :
CE/ISO
Place of Origin :
China
MOQ :
10PCS
Price :
reconsideration
Payment Terms :
L/C, D/P, T/T, D/A, Western Union,
Supply Ability :
10000pcs/month
Delivery Time :
7-15 work days
Packaging Details :
first in the carton then made the wooden tray
Product name: :
High sealing performance hepa filters
Media: :
Ulpa glassfiber
Size: :
915*610*96mm or customize
Frame: :
Aluminum frame or other steel
Efficiecny :
H13 H14 U15
Surface wind speed: :
0.6m/s
Air volume: :
2000m³/h
The initial tesistance: :
110
Description

High sealing performance hepa filters with blue jelly glue for ICU room

1. High sealing performance hepa filters description

It adopts the liquid sealed technology and is a kind of method better than the commonly used seal mechanical pressing device. The Gel Seal is easily to be installed. The seal is very reliable, so its terminal filtration effect is better than ordinary products.

Product details:

Application: Microelectronic clean rooms and equipment.

Type: HEPA/ULPA fluid seal filtering panel.

Frame: Extruded aluminum

Separator: Hot-melt beads.

Media: Glass fiber,PTFE		 Gasket: SIL-GEL.

Grid: Mild steel white epoxy paint.

Filter class acc. EN 1822: H14 / U15.

MPPS efficiency: ≥99.995% ,
≥ 99.9995% .

Temperature / Humidity: 70°C / 100% RH.

2. High sealing performance hepa filters features:

1) Mini-pleat design, high quality fiber glass filter

media, lower operational cost

2) Compact structure, space-saving

3) High dust loading capacity, long service life

4) Gel-sealed type, well sealing performance

5) Efficiency:

99.995%@MPPS(H14)

99.9995%@MPPS(U15)(EN1822)

3. High sealing performance hepa filters adhibition


1) Widely used in demanding clean workshops, large area vertical laminar flow, 100 laminar flow hoods and HEPA high efficiency filter installation

2) Applicable to pharmaceuticals, hospitals, food hygiene, microbiology and other high grade sealed air purification end.

3) Widely used in demanding clean rooms, large area vertical laminar flow, 100 class laminar flow hoods, biological safety cabinets, biotechnology, laboratories, sterile rooms, pharmaceutical factories, research institutes and other high cleanroom requirements.

4. Standard Model Technology Parameter

Size

Air flow

m3/h

Wind speed

m/s

 Initial resistance(Pa)

Efficiency

0.3um

Dust capacity

(g)

Weight

(Kg)
610*610*50 700 0.52 ≤220 ≥99.99% 450 ≈3
915*610*50 1100 0.52 700 ≈4.5
1170*570*50 1300 0.52 860 ≈5.6
1220*610*50 1400 0.52 930 ≈6
610*610*69 1000 0.75 650 ≈3.8
915*610*69 1500 0.75 950 ≈6
1170*570*69 1800 0.75 1100 ≈7
1220*610*69 2000 0.75 1250 ≈8
610*610*80 1300 0.97 800 ≈5
915*610*80 1900 0.97 1200 ≈7.5
1170*570*80 2300 0.97 1400 ≈8.8
1220*610*80 2600 0.97 1600 ≈10

5 High sealing performance hepa filtersl photos

High Sealing Performance Portable Hepa FilterHigh Sealing Performance Portable Hepa FilterHigh Sealing Performance Portable Hepa Filter

Our Services

Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.

Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA air filter: each one should be replacement in each half and one years.

Standard export packing:
--Stretch film strapped whole cabinet,
--Foam inside protected,
--Plywood case solid fixed
--European standard bottom tray

We will be honered that you can visit our Factory .Our factory is located in Humen town,Dongguan city,Guangdong province,China.Please call me soon.
