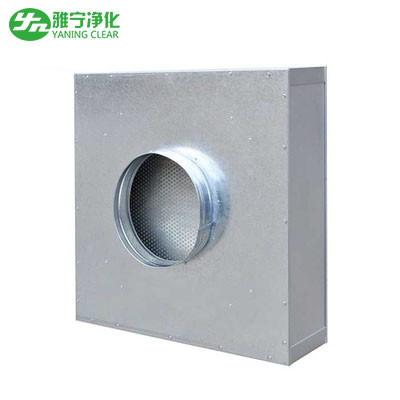

Insulated Cotton Hepa Filter Ceiling Module , Laminar Flow Module 600*915*150mm
Insulated Cotton Hepa Filter Ceiling Module , Laminar Flow Module 600*915*150mm
Insulated Cotton Hepa Filter Ceiling Module , Laminar Flow Module 600*915*150mm
Insulated Cotton Hepa Filter Ceiling Module , Laminar Flow Module 600*915*150mm
Specifications
Brand Name :
Yaning
Model Number :
YN--MH006
Certification :
CE/ISO/UL/ROHS
Place of Origin :
Guangdong,China
MOQ :
1pc
Price :
reconsideration
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
7-15days depends on your quantity
Packaging Details :
plywooden
Product name: :
Hepa filter module
HEPA efficiency :
H12-U15
Size :
600*915*150mm
HEPA size :
595*910*90mm
Rate air flow; :
900 m'3/h
Packaging: :
Wooden case
Description

Disposable ceiling hepa filter module,module hepa with insulated cotton

1,Hepa filter module description

High Efficiency Filter Box Ducted Ceiling Module The Gel Seal filters are available in HEPA or ULPA efficiencies. The dimple pleated filter pack is sealed in an anodized aluminum frame that contains a gelled channel to insure a leak free,tight seal. The filter element is protected by an anodized aluminum housing and diffuser screen, with a damper controland challenge port for the measurement of challenged aerosol. An anodized extruded aluminum center dividerwith access port provides access for adjustment of the distribution plate and measurement of the resistance andchallenge aerosol. A painted expanded metal faceguard on the downstream side protects the media.

2,Hepa filter module features

1).High Efficiency HEPA Filter Module;
2).Closed structure;
3).Light Shell,Hepa Filter;
4).Available leak and scan tested;igh efficiency;Low resistance;Light weight;Easy to install;Low cost;

Material and performance

Frame Aluminum
Roof material Cold-rolled steel plate electrostatic plastic spraying, aluminum
Filter medium Glass fiber
Partition Hot melt
Diamond of wind suiface nets Electrolysis board electrostatic plastic spraying
Max. temperature 80°C
Max. humidity 80%RH

Advantages
1.Aluminium frame and cover are antirust.
2.By standard diffuse mesh ,the airflow will be fluent.

3.Inlet tube could prevent loss of air.
4.Use special resin of without phosphorus to seal the media and frame absolutely.
5.Do not allow for break up and blocking of wind velocity.


Applications
Used for the relatively high level of class 100,1000 air purification system of the terminal filter air feeding device.

4. Standard Model Technology Parameter

Mini-Pleated

HEPA filter

 Model

Cabinet Size

 Filter Size Flange Size

(m3/h)

Rated Air flow
Tube on top Tube on side
YN-HU-484-T1 YN-HU-484-S1 534×534×380 484×484×96 320*200 1000
YN-HU-610-T1 YN-HU-610-S1 660×660×380 610×610×96 400*200 1500
YN-HU-915-T1 YN-HU-915-S1 915×610×380 915×610×96 500*200 2000
YN-HU-1220-T1 YN-HU-1220-S1 1220×610×380 1220×610×96 500*300 3000

Insulated Cotton Hepa Filter Ceiling Module , Laminar Flow Module 600*915*150mm

Insulated Cotton Hepa Filter Ceiling Module , Laminar Flow Module 600*915*150mm

Application:

Insulated Cotton Hepa Filter Ceiling Module , Laminar Flow Module 600*915*150mm
