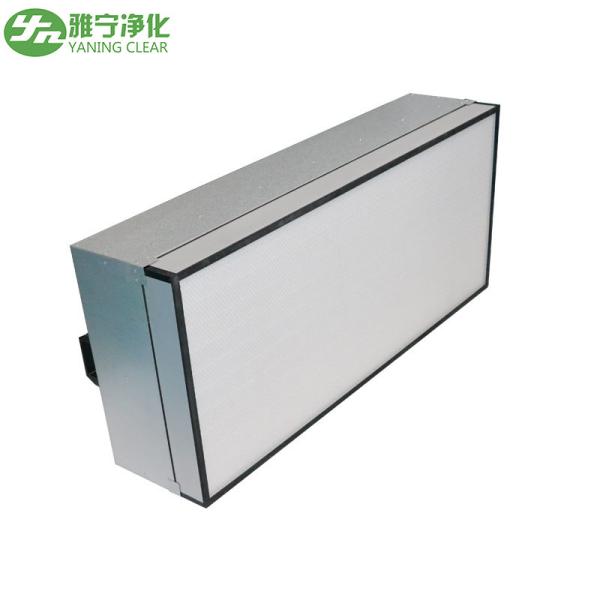

Clean Room FFU Fan Filter Unit Low Noise With Galvanized Sheet Frame
Clean Room FFU Fan Filter Unit Low Noise With Galvanized Sheet Frame
Clean Room FFU Fan Filter Unit Low Noise With Galvanized Sheet Frame
Clean Room FFU Fan Filter Unit Low Noise With Galvanized Sheet Frame
Clean Room FFU Fan Filter Unit Low Noise With Galvanized Sheet Frame
Clean Room FFU Fan Filter Unit Low Noise With Galvanized Sheet Frame
Specifications
Brand Name :
YN
Model Number :
YN-FFU-1200
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1PCS
Price :
reconsideration
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
10000pcs/month
Delivery Time :
7-15 work days
Packaging Details :
first in carton,then made wooden tray
Material :
Galvanized steel
Powersupply :
AC single phase 110V/220V 50HZ/60HZ AC single phase 220V/380V 50HZ/60HZ
Efficiency :
H13-U15
Size: :
1200*600*290mm
Hepa size: :
1195*595*69mm
Noise :
48-54db(A)
Application: :
100 Lab / Laboratory/ Clean Room
Description

Clean room ffu fan filter unit low noise with galvanized sheet frame

1. Fan filter unit description

A fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to clean rooms, laboratories, medical facilities or micro-environments by removing harmful airborne particles from recirculating air.The units are installed within the system's ceiling or floor grid. Large clean rooms require a proportionally large number of FFU, which in some cases may range from several hundred to several thousand.Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution.

2. Fan filter unit advantages

1. Diversified design

2. The unit appearance is simple and generous

3. Equipped with high quality, high efficiency and low noise outer rotor backward inclined centrifugal blower

4. Optimized internal current sharing designed

5. With stable and multi velocity regulation function

6. With functions perfect large scale group control operating system

7. Various functions of accessories for options

3. FFU Parameter

Model FFU-KLC920 FFU-KLC1175 FFU-KLC1225 Unit
Size 920×615×350 1175×575×350 1225×615×350 mm
plenum chamber materials Aluminized zinc plate/stainless steel. Aluminized zinc plate/stainless steel. Aluminized zinc plate/stainless steel.
Air flow 800 1000 1200 m3/h
Average wind velocity 0.4/0.45/0.5 0.4/0.45/0.5 /0.4/0.45/0.5 m/s
Extemal static pressure 97(10mmAq) 97(10mmAq) 97(10mmAq) pa
Hepa filter size 915×610×69 1170×570×69 1220×610×69 mm
Efficiency 0.12um@99.99% 0.12um@99.99% 0.12um@99.99%
Filter initial pressure loss 180Pa@0.45m/s 180Pa@0.45m/s 180Pa@0.45m/s
Power 180Pa@0.45m/s 180Pa@0.45m/s 180Pa@0.45m/s
Fan vibration coefficient 0.2-0.5mm/s 0.2-0.5mm/s 0.2-0.5mm/s
Power dissipation 123 123 172 W
Weight 24 28 31 Kg
Noise 53 55 55 dB

Clean Room FFU Fan Filter Unit Low Noise With Galvanized Sheet FrameClean Room FFU Fan Filter Unit Low Noise With Galvanized Sheet Frame

Company Information

Dongguan Yaning Purification Technology Co., Ltd. is located in Humen town,Dongguan city,Guangdong province,China.YANING has been concentrating on the R&D, design, production, sale and installation of purification equipment. the company is committed to the purification industry for more than ten years, the South China purification technology industry's most Powerful enterprises. The main products used in health care, electronics technology, bio-medicine, food, precision instruments, aerospace,Autombile manufacturing, and many other areas.
