Vertical Flow Laminar Air Flow Cabinet Powder Coating Steel For Food Package
Vertical Flow Laminar Air Flow Cabinet Powder Coating Steel For Food Package
Vertical Flow Laminar Air Flow Cabinet Powder Coating Steel For Food Package
Vertical Flow Laminar Air Flow Cabinet Powder Coating Steel For Food Package
Vertical Flow Laminar Air Flow Cabinet Powder Coating Steel For Food Package
Vertical Flow Laminar Air Flow Cabinet Powder Coating Steel For Food Package
Specifications
Brand Name :
YN
Model Number :
YN-CB1200
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1PCS
Price :
Reconsideration
Payment Terms :
T/T, Western Union, , L/C, D/A
Supply Ability :
2000pcs/month
Delivery Time :
7-15 work days
Packaging Details :
Wooden case or as your requset
Product name: :
Laminar airflow cabinet
Size: :
1200(W)*600(D)*1730(H)mm or Custom
Flow type: :
Vertical-flow
Internal Size (W*D*H) :
1100*580*540mm
Efficiency: :
H13/H14
Delivery Time: :
7 days after your payment
Packaging :
Wooden case or as your requirement
Loading port: :
Shenzhen or Guangzhou
Description

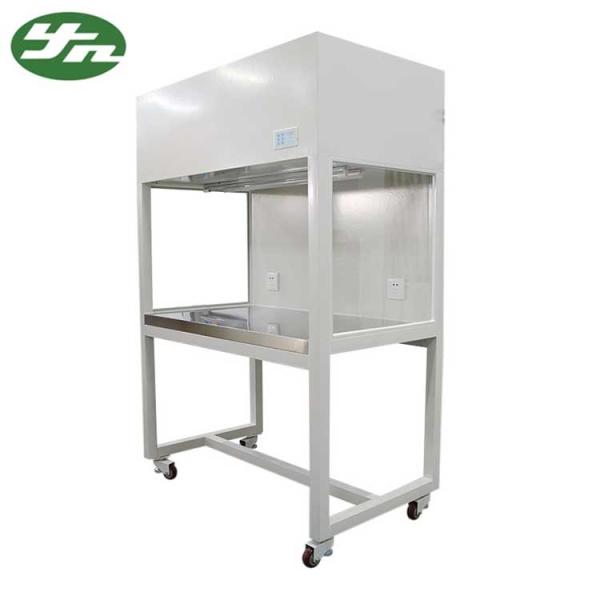

Powder coating steel laminar air flow cabinet vertical flow for food package

1. Laminar airflow cabinet description:

LFC-1300V ( single side, double operators, vertical laminar airflow cabinet) NEW
Overall Dimension: 1310mmX825mmX2000mm(L x W x H, including the base stand
650mm)
Workzone Dimension: 1200 mmX500mmX570mm(Lx W x H);
HEPA Filter: 1223mm*570mm*69mm;
Side walls: Tempered glass
Worktable: Stainless steel
Dust: ≥ 0.5um≤ 3.5 granule/L
Clean Rate >99.995% at 0.3um
Airflow Speed: 0.3-0.5m/s;
Noise: < 60dB(A level);
Vibration: XYZ direction< 5um;
Power supply: 220.50Hz;
Option: Water tap, g

2.Clean workbench parameter

Model YN-V680 YN-V800 YN-DDC YN-SDC YN-SDC2100
External Size (W*D*H), mm 680*410*1160 802*615*1575 1040*600*1730 1440*600*1730 2100*740*2550
Internal Size (W*D*H), mm 630*375*615 800*600*540 940*580*540 1340*580*540 2000*705*1100
Work Surface Height No 660mm 730mm 730mm 730mm
Display LED Display
Airflow Velocity Average of 0.3~0.5m/s, air speed adjustable.
Material Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table: 304 stainless steel
Pre-filter Polyester fiber, washable
HEPA Filter 99.999% efficiency at 0.3um
Noise <60dB
Front Window No Manual, 5mm toughened glass, anti-UV Motorized, 8mm PMMA
Max Opening No 490mm 350mm 400mm
Fluorescent Lamp 14*1 14W*1 21W*1 28W*1 36W*1
UV Lamp Emission of 253.7 nanometers
Consumption 160W 350W 350W 600W 700W
Waterproof Socket 2, total load≤500W No
Caster No Universal wheel with leveling feet
Power Supply 110/220V±10%; 60/50Hz
Standard Accessory

Fluorescent lamp, UV lamp*2 ( for all models )

Water & gas tap ( for model BBS-V680 )

Base stand ( except model BBS-V680 )

Foot switch and Waterproof socket*2 ( for model BBS-SDC2100 )
Gross Weight 50kg 120kg 150kg 210kg 300kg
Package Size (W*D*H), mm 750*460*1170 960*770*1800 1200*780*1350 1600*780*1350 2250*1000*2120

Customized design is welcome.

3.Laminar airflow cabinet application:


It is widely used in medical and health, pharmacy, biochemical experiment, electronic, precision instrument, instrument and other industries, and provides a sterile clean environment for local purification table.

4.Use environment and conditions:

Temperature: 5°C∽35°C;
Relative humidity: no more than 85% (+35°C);
Pressure: 86kPa∽106 kPa;
The maximum dust concentration: 3500 particles / L (dust particle size not less than 0.5μm, 1300);

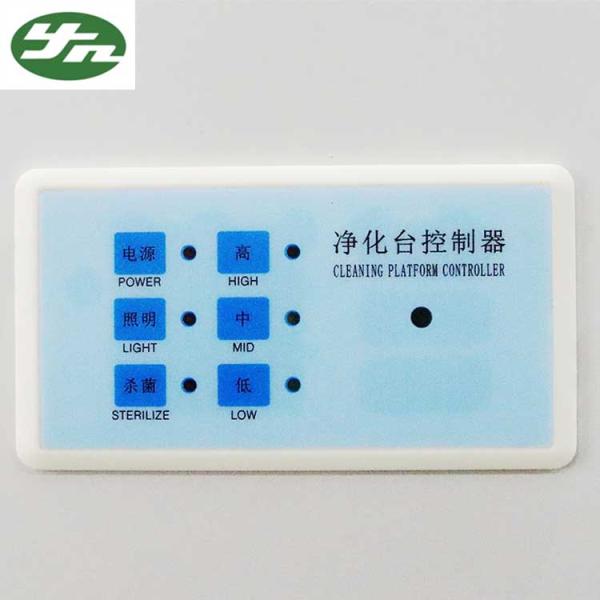

5.Laminar control pannel

Vertical Flow Laminar Air Flow Cabinet Powder Coating Steel For Food Package
