Specifications
Brand Name :
Yaning
Model Number :
YN-CRC012
Certification :
CE,UL,SGS
Place of Origin :
China
MOQ :
1set
Price :
it depends on size and material
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000+per month
Delivery Time :
15 days
Packaging Details :
plywooden
After-sales service provided :
Engineers available to service machinery overseas,Overseas service center available,Online support,Overseas third-party support available
Product name :
Clean Booth(Down Flow Booth),Clean Room,Portable Modular Clean Room Clean Booth With Hepa Filter
Material :
Stainless Steel,Hard wall sandwich panel
Warranty :
1 Year
Hepa filters :
99.999% efficiency at 0.3 um
Application :
Clean room,air cleaning in a small area,Industrial,Pharma,100 Lab / Laboratory Clean Room
Description

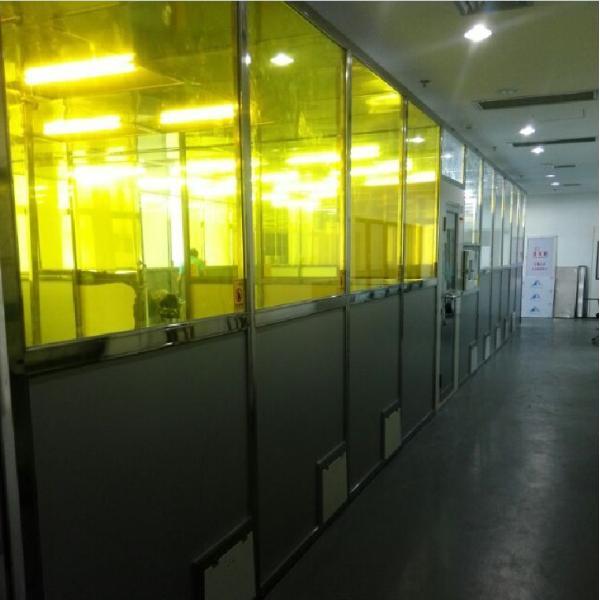

ISO 5/6/7 (Class 100,1000, 10000) Stainless Steel Frame Module Clean Room for Candy Industry

Cleam room Introduction

Clean room, also known as clean booth, (easy clean room) (CLEAN BOOTH) is a simple clean room for the fastest and most convenient, clean shed with a variety of cleanliness and space

It can be designed according to the needs of use, so it is easy to use, flexible and easy to install, and the construction period is short and the transferability is its main feature. The clean booth can also be used in the clean room of general grade.

Local areas require high cleanliness to make local additions to reduce costs.

A clean room is an air purification device that provides a high local clean environment. The clean shed is mainly composed of a box, a fan, a primary air filter, a damping layer, a lamp, etc., and the outer casing is sprayed.

The product can be hung or supported on the ground, compact and easy to use. It can be used singly or in multiple connections to form a strip-like clean area.

The clean room is made of industrial aluminum (or stainless steel square pass, iron square pass spray) as the frame, the fan filter unit (FFU) is supplied with air, and the anti-static drape (or tempered glass) is hung around.

The purification level can reach 100-10000. Applicable to areas with high requirements for local purification levels in the operating area.

Description:

clean room specification Clean Booth(ISO 5)
External Size:5500*9000*3000mm
Net inner height: 5400*8900*2700mm
Power supply: 120V 60Hz, 1phase
Clean class: in class 10,000/ISO(ISO14644-1 Standard)
FFU with prefilter:575*1175*350mm, 56 sets
Mini-pleated HEPA filter: 99.999%·0.3um, H13 ,56pcs
Frame: #304 stainless steel tube type 50*50
Wall sealed with plexiglass(T=5mm)
Top ceiling sealed with stainless steel 304 plate and plexiglass
door material: sliding doors(1800*2400mm), 2pcs
LED Purification light: 40W*25pcs
control box:1 pcs
