Specifications
Brand Name :
YaNing
Model Number :
YN-HB
Certification :
CE
Place of Origin :
CN
MOQ :
1
Price :
150 USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 per month
Delivery Time :
7 - 10 days
Packaging Details :
Wooden Cases and Cartons
Applicable Industries :
Machinery Repair Shops, Food & Beverage Factory, Food & Beverage Shops, Other, Hospital, Lab
Warranty of core components :
1 Year
Filter Efficiency :
99.995%@0.3um
Construction :
Panel Filter
Eiffiency :
H13/H14
Function: :
Air-conditioning system
Material :
Epoxy powder coated steel
Description
Product Description

1. Hepa filter box description

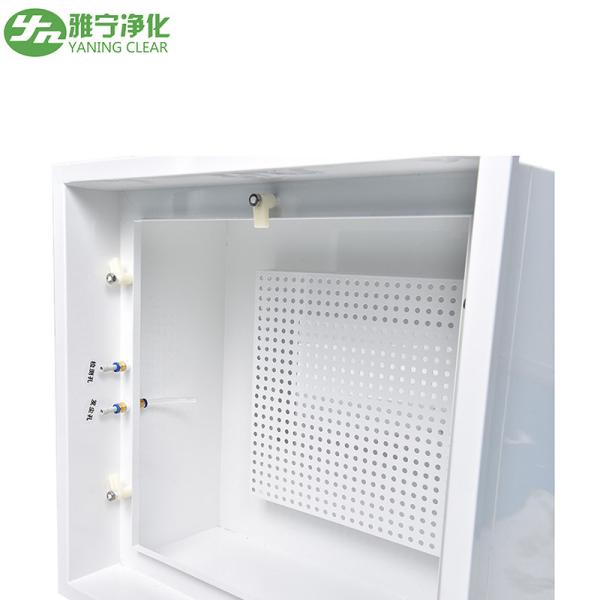

HEPA diffuser, HEPA filter diffuser box, HEPA filter box
HEPA diffuser is an ideal air fitlering terminal for the clean room or clean workshop.

It consists of plenum box,hepa filter, short air inlet tube and outlet air diffuser board etc.
These series are terminal filter equipments of purification workshop, the shell is made of premium cooled steel plate, static on the surface by spraying; HEPA filter airflow outlet maintain the qulity, the flow and the direction of the air and prevent eddy current from happening; great appearance; less investment; simple structure.

It has an attractive structure, good sealing property and is convenient for both mounting and air volume.The plenum box has both the heat and sound insulating material,which not only purifies the environment, but also has noise elimnination effect.

Therefore, it is especially suitable to apply in industries such as micro-electronics, research, precision machinery, medical care, biochemistry and pharmacy etc.

2. Hepa filter box advantages

1).Filter material:glassfiber
2).Frame:Aluminum profile
3).Efficiency:more than99.99%


Class 100 Purification Customizable Hepa Filter Box with 99.995% Filter Efficiency

3. Standard Model Technology Parameter

Mini-Pleated

HEPA filter

 Model

Cabinet Size

 Filter Size Flange Size

(m3/h)

Rated Air flow
Tube on top Tube on side
YN-HU-484-T1 YN-HU-484-S1 534×534×380 484×484×96 320*200 1000
YN-HU-610-T1 YN-HU-610-S1 660×660×380 610×610×96 400*200 1500
YN-HU-915-T1 YN-HU-915-S1 915×610×380 915×610×96 500*200 2000
YN-HU-1220-T1 YN-HU-1220-S1 1220×610×380 1220×610×96 500*300 3000

HEPA filter

with Clapboard

 Model Cabinet Size Filter Size Flange Size

(m3/h)

Rated Air flow
Tube on top Tube on side
YN-HU-484-T2 YN-HU-484-S2 534×534×380 484×484×220 320*200 1000
YN-HU-610-T2 YN-HU-610-S2 660×660×380 610×610×220 400*200 1500
YN-HU-915-T2 YN-HU-915-S2 915×610×500 915×610×220 500*200 2000
YN-HU-1220-T2 YN-HU-1220-S2 1220×610×500 1220×610×220 500*300 3000

Customized design is welcome.
