Digital transmitter RS232 can be directly connected to the computer, RS485 can choose quality assurance
Digital transmitter RS232 can be directly connected to the computer, RS485 can choose quality assurance
Digital transmitter RS232 can be directly connected to the computer, RS485 can choose quality assurance
Digital transmitter RS232 can be directly connected to the computer, RS485 can choose quality assurance
Digital transmitter RS232 can be directly connected to the computer, RS485 can choose quality assurance
Digital transmitter RS232 can be directly connected to the computer, RS485 can choose quality assurance
Specifications
Model Number :

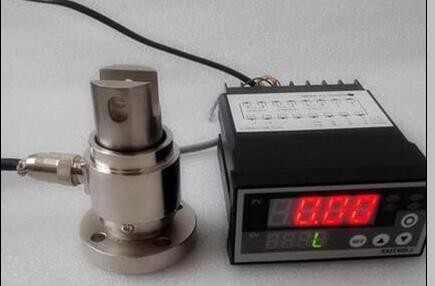

display instrument for torque ,tension ,pull and weighting sensors
Place of Origin :
China
MOQ :
Pls inquiry us !
Price :
USD $0.001-USD$1000.00
Payment Terms :
T/T , Paypal, Western Union. Escrow etc.
Delivery Time :
2-5 days
Description

Sensor matching digital transmitter, RS232, RS485 output

Characteristic:

Stable and reliable performance measurement accuracy and intuitive, compact size, the use of flexible,Universal transmitter, suitable for all kinds of industrial equipment with PC monitoring software, equipped with complete detailed communication protocol, zero calibration, display calibration function.

Digital sensor communication protocol

1, protocol type: RTU MODBUS

Please refer to the specific RTU MODBUS protocol

MODSCAN software can be used to test

2, communication mode: RTU - RS485 MODBUS half duplex, master-slave mode

3,Serial data format: the use of 11 bit data format:

  • 1 bit start bit + 8 bit data bit + 1 bit parity check (EVEN) + 1 bit stop bit (MODBUS default mode)
  • Baud rate: 19200 baud

Message frame format of communication between sensor and host computer:

The message frame format of the sensor and the host computer is shown in table 1-3

(in which the current address range of the sensor: 0-99; sensor to receive and send data to a floating point conversion of four bytes, the company provides the host computer calibration procedures

Table 1

message frame format for MODBUS communication

Sensor address (one byte) Function code (one byte) Data (4 bytes) CRC check (2 bytes)

Table 2

data frame format for sensor transmission

Sensor current address (function code) 01H Sensor data (4 bytes) CRCL+CRCH (2 bytes)

Table 3

frame information for sensor data

Function description Message frame format for sensor reception
Address field (sensor) function code Data domain CRC Check field
Zero calibration Current address 02H 0000H CRCL+CRCH
Full range calibration Current address 03H FFFFH CRCL+CRCH
Sensor address modification Current address 04H 0000H-00F7H CRCL+CRCH
Output for mV signal Current address 05H 0000H CRCL+CRCH
Output voltage signal Current address 06H FFFFH CRCL+CRCH

  • Communication protocol in addition to the standard MODBUS protocol, but also according to the needs of customers to develop customized communication format.Sensor accuracy:100000/mV
