FLOATER FOR APT BALLAST AIR VENT HEAD

FLOATING DISK FOR BALLAST VENT HEAD

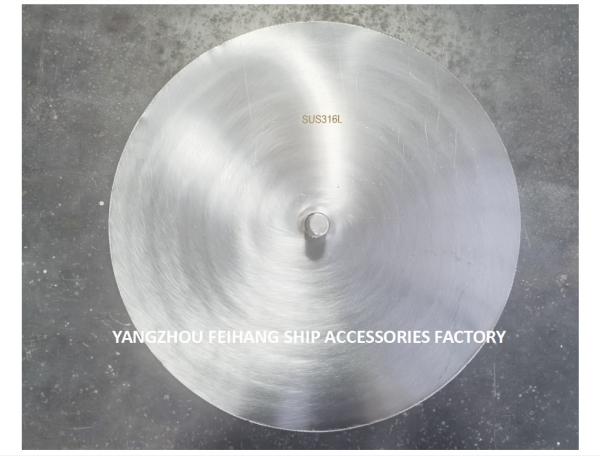

STAINLESS STEEL FLOATER PLATE FOR AIR VENT HEAD

After sailing for a period of time, during PSC inspections, we often find defects in the closing device in the air pipe head (float stuck/damaged/missing, sealing ring missing/deteriorated), as shown in the following figure:

For ships using the method of exchanging circulating ballast water, it is believed that the reason for this defect is due to the excessive load on the closing deviceBallast water passes through the air pipe head.

Given the above situation, it is recommended to open the air pipeline and conduct internal inspections, and to conduct head checks and replace corresponding components of all ships at appropriate intervals:

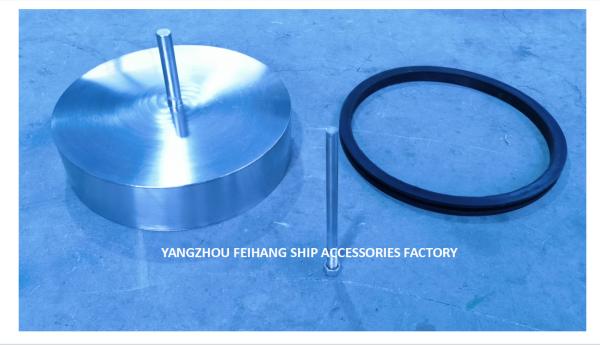

At the same time, you can match other float related parts, such as sealing rubber rings and support bolts:

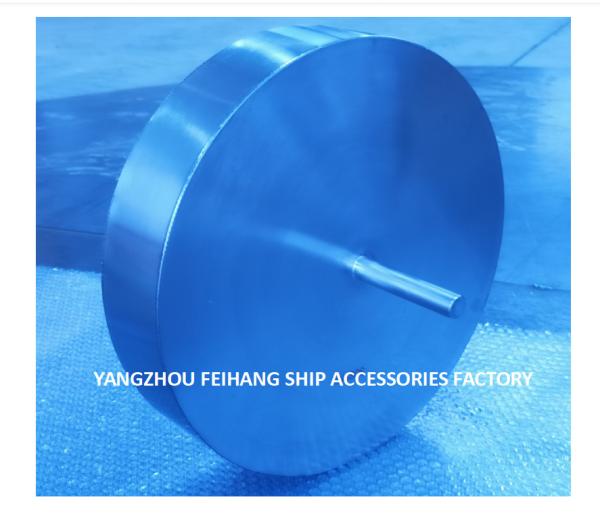

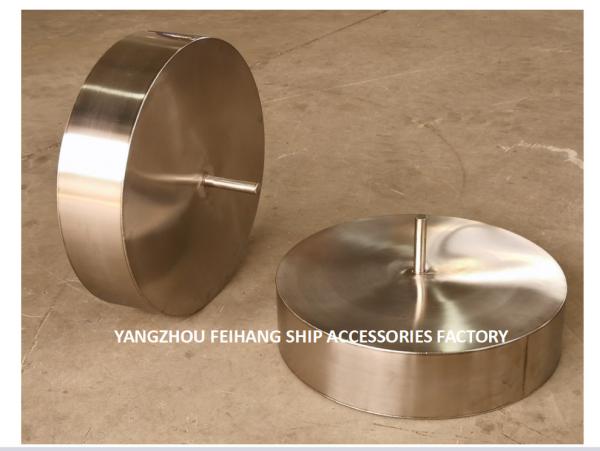

FLOATING DISC

AIR VENT FLOATER OF DS250A

APT WATER BALLAST TANK AIR VENT FLOATER FOR FKM200A

Float for ballast vent.head type 5K-300 JIS-KS91A-121

Floating Disc-Vent plate for Air Pipe Head NO.533HFB-200A

WBT TANK ARIE VENT DISC FLOAT NO.53BN-350A

STAINLESS STEEL FLOAT FOR OVERFLOW BALLAST HEAD NO.53CW-100A

The basic product information of the ventilating cap float is as follows:

Brand: Flying
Nominal path: 50A-650A
Production process: die pressing, solder plate
Origin: Yangzhou, Jiangsu
Colour and lustre: the original color of stainless steel
Commonly used materials: stainless steel 304/ stainless steel 316/ stainless steel 316L

ARIE VENT DISC FLOAT ballast tank breathable cap stainless steel float special function:

In the first case, when the ship is running, when it comes to bad weather, the sea water or the rain enters the air cap, and it is too late to discharge.

At this time the air cap / air pipe head on the deck of the ship will lift the inner - air cap float / ventilating cap buoy.

When the stainless steel ventilating cap float / ballast tank stainless steel buoy rises, the water will not enter into the air pipe, so that it can be isolated from entering the cabin. This is the so-called self closing air pipe, self closing ballast tank breathable cap.

Second cases: when the oil and water tank air pipe head / oil tank air cap is immersed in the water under the condition of vertical and tilt 40 degrees, the ventilating cap float / ventilating cap buoy can float in a moment and contact the sealing rubber ring seat of the air cap.

The sealing degree can effectively prevent the flow into the air / overflow pipe and delay the intake time of the cabinets.

At this time when the ship returns to normal state, the air pipe head buoy in the head of the air will automatically land, so that the air pipe head on the deck will be able to restore the air / air suction function.

The product of the ventilating cap float is as follows:

Yangzhou aero shipping accessories factory production: breathable cap float, breathable cap float, ballast tank breathable cap floating plate advantage
(1) we sell our own products, the supply cycle is short, and the quality of our products is guaranteed.

Second, we provide complete after-sales service. If our factory quality problems, customers can accept no reason to return.

This product is made of stainless steel sheet. Our cooperation express is: Shun Feng express. In terms of timeliness, we feel a sense of relief for our customers, and we are also less worried about ourselves.
Instructions for ordering gas cap float and instructions for purchase:
Please measure the size of the original floating cap float so as to facilitate our checking.

The maximum outer diameter of the stainless steel air cap float, the thickness of the stainless steel air cap float, the height of the guide rod above the stainless steel air cap float, the diameter of the guide rod of the stainless steel air cap floating disc.

(2) customers can choose matching kit according to specific conditions: "breathable cap, float seal apron, ventilating cap supporting bolt".
