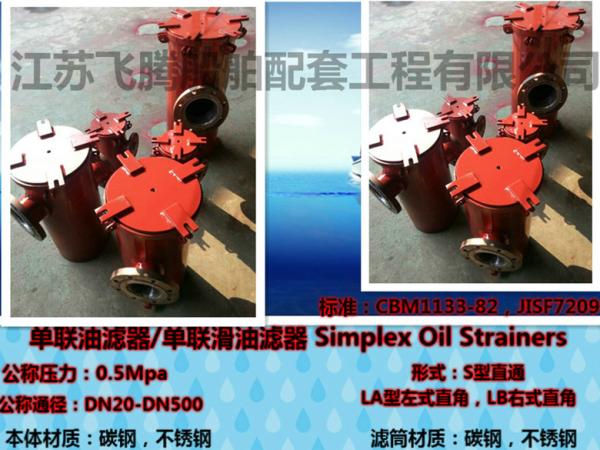

Stainless steel single oil filter, single - linked oil filter, single fuel filter
Stainless steel single oil filter, single - linked oil filter, single fuel filter
Specifications
Place of Origin :
China Jiangsu Yangzhou
Brand Name :
Feiteng
Certification :
Inspection Report
Model Number :
S,SS,LA,LB,LAS,LBS
Reference standard :
CBM1133-82，JIS F7209
Body material :
Carbon steel, stainless steel
Specifications :
50A-1200A
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden box
Delivery Time :
The 3 day
Payment Terms :
Advance payment and delivery
Supply Ability :
1000
Description

Yangzhou cruise ship accessories factory specializing in the production of single oil filter: CBM1133-82
Stainless steel single oil filter, single - linked oil filter, single fuel filter
This product is applicable to the ship fuel temperature is less than 80C0 and oil pipe lines.
Product design and manufacturing is based on the ship industry standard CBM1133-82, combined with the requirements of modern ship design, the formation of the company's 594NTDF1Y series of enterprise products.
Single joint oil filter body, a cover and a filter cartridge for Q235-A, single joint oil filter strainer material for 1Cr18Ni9Ti; single joint oil filter strainer filter cartridge effective area and the nominal through diameter cross-sectional area ratio of not less than 5; for lubricating oil filter oil medium added magnetic block, the material is AINiCo5; oil filter density test and strength test, pressure 0.75mpa, duration of not less than 5min, should be no leakage; oil filter is arranged in the inner cavity of the rust cleaning antirust oil, the outer surface is coated with a rust inhibiting primer and light grey finish each once;
Type of filter
S type - a straight - pass filter with a CB/T46 - shaped flange connection;
SS type - a straight - pass filter with a GB2506 - shaped flange connection;
Stainless steel single oil filter, single - linked oil filter, single fuel filter
LA type: the right type right angle single oil filter with CB/T46;
LB type: the flange connection size according to CB/T46's left type right angle single oil filter;
LAS type: the right type right angle single filter with GB2506;
LBS type: the flange connection size according to GB2506's left type right angle single oil filter;
Stainless steel single oil filter, single - linked oil filter, single fuel filter
Parameters for filter
Stainless steel single oil filter, single - linked oil filter, single fuel filter
Single - linked oil filter, single - linked oil filter, cast iron single - linked oil filter are a product of marine oil filter!!

Stainless steel single oil filter, single - linked oil filter, single fuel filter
